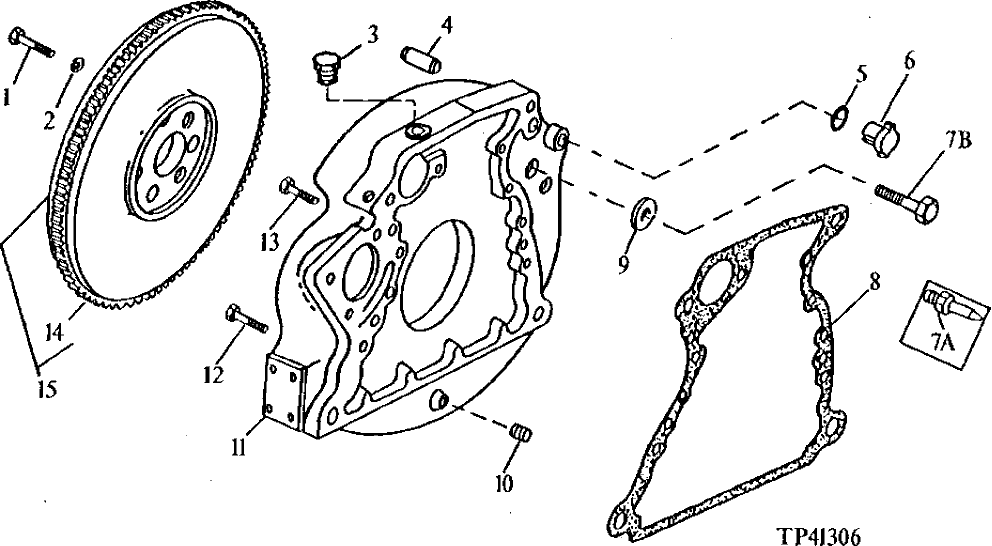

Запчасти John Deere 90 1 - FLYWHEEL AND FLYWHEEL HOUSING 433 - ENGINE 4

1

19H2993

CAP SCREW

1/2" X 1-1/2"

4шт.

2

T23891

WASHER

4шт.

3

R48685

DOWEL PIN

(SUB FOR A120R)

2шт.

4

T22867

DRAIN PLUG

(USE WITH R120586)

1шт.

5

R27149

O-RING

1шт.

6

AR61533

PLUG

1шт.

7A

T20090

SCREW

(SUB 19H2351)

1шт.

7B

19H2351

CAP SCREW

1/2" X 1/2"

1шт.

8

R70483

GASKET

1шт.

9

T20168

WASHER

1шт.

10

RE57836

PIPE PLUG

1/2", (SUB FOR 15H561)

1шт.

11

R120586

HOUSING

(SUB FOR R79635, R110188 OR R101113) (ALSO ORDER T22867)

1шт.

12

19H2599

CAP SCREW

5/8" X 2-1/2"

4шт.

13

19H3385

CAP SCREW

1/2" X 1-1/8"

8шт.

14

R28811

RING GEAR

(129 TEETH)

1шт.

15

RE46293

FLYWHEEL

(MARKED R109008) (SUB FOR RE15594, MARKED R79652 AND RE24281, MARKED R84485)

1шт.
