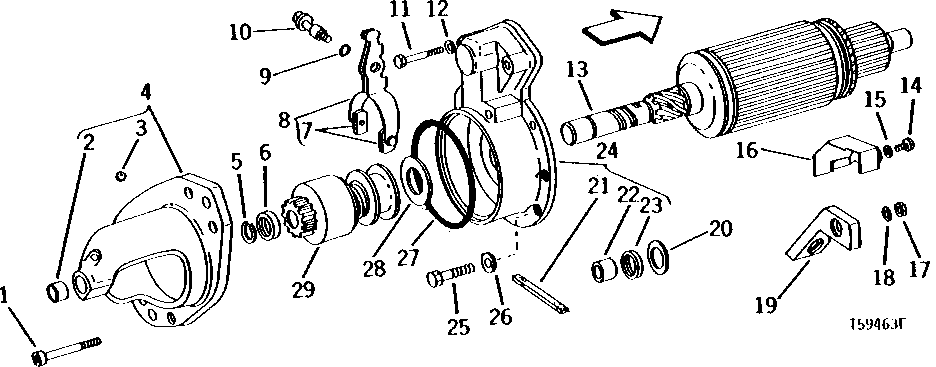

Запчасти John Deere 90 2 - STARTING MOTOR DRIVE MOTOR AND ARMATURE 422 - ENGINE 4

1

R65700

SCREW

6шт.

2

R50891

BUSHING

1шт.

3

R50892

PLUG

1шт.

4

RE16047

STARTER MOTOR

1шт.

5

R50902

SNAP RING

1шт.

6

R65701

LOCKING COLLAR

1шт.

7

R51667

WEAR PLATE

2шт.

8

AR67827

ARM

1шт.

9

R52387

O-RING

1шт.

10

R50897

SHAFT

1шт.

11

R50893

SCREW

2шт.

12

12H302

LOCK WASHER

1/4"

2шт.

13

AR84338

ARMATURE

(15.827 INCHES LONG)

1шт.

14

AR55946

SCREW

1шт.

15

R76140

COVER

(SUB FOR R68223)

1шт.

16

COVER

( R76139 NO LONGER AVAILABLE) (SUB FOR R68225) (SUB RE39064)

1шт.

17

14H971

NUT

1/2"

1шт.

18

R50899

LOCK WASHER

1шт.

19

R50910

ELECTRICAL CONNECTOR ASSY

1шт.

20

R50906

THRUST WASHER

1шт.

21

R51666

WICK

FELT, OIL

1шт.

22

R51665

BUSHING

CENTER HOUSING

1шт.

23

AR55947

SEAL

1шт.

24

AR68731

HOUSING

CENTER BEARING

1шт.

25

R51661

SCREW

2шт.

26

12H302

LOCK WASHER

1/4"

2шт.

27

R50901

WASHER

1шт.

28

R50905

WEAR RING

1шт.

29

AR84337

DRIVE

1шт.
