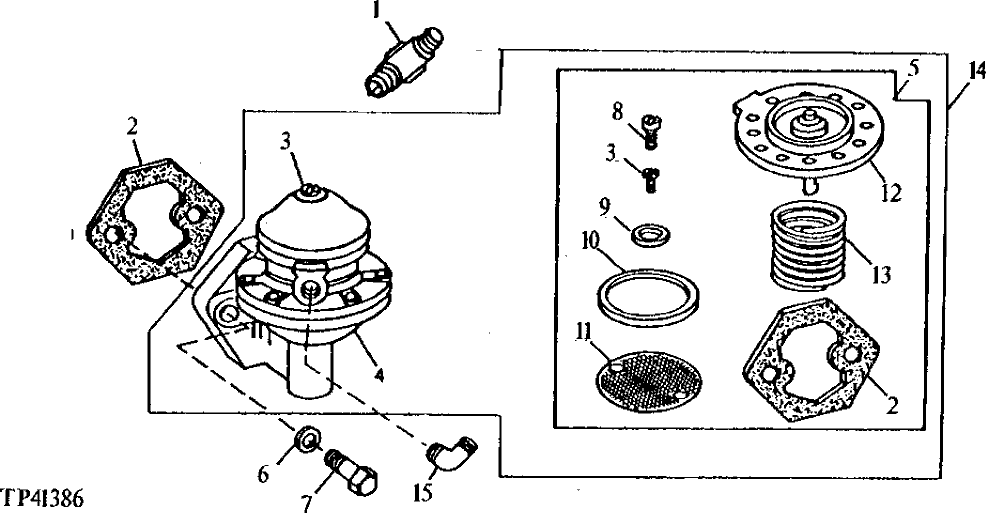

Запчасти John Deere 90 2 - FUEL TRANSFER PUMP 421 - ENGINE 4

1

R67293

FITTING

INLET

1шт.

2

R520618

GASKET

(SUB FOR R97350, R27285)

1шт.

3

21M7036

SCREW

M5 X 16

1шт.

4

FUEL PUMP

(SUB RE42211) (ALSO ORDER R520618)

1шт.

5

RE13517

KIT

(SUB RE42211) (ALSO ORDER R520618)

1шт.

6

T27860

WASHER

2шт.

7

19H1849

CAP SCREW

5/16" X 1-1/4"

2шт.

8

R49266

BOLT

2шт.

9

GASKET

(SUB RE42211) (ALSO ORDER R520618)

1шт.

10

R30409

GASKET

1шт.

R40565

WASHER

(GLASS BOWL)

1шт.

11

SCREEN

(SUB RE42211) (ALSO ORDER R520618)

1шт.

12

DIAPHRAGM

(SUB RE42211) (ALSO ORDER R520618)

1шт.

13

SPRING

(SUB RE42211) (ALSO ORDER R520618)

1шт.

14

RE42211

FUEL PUMP

(SUB FOR AR77914 OR RE27667) (ALSO ORDER R520618)

1шт.

15

R82131

ELBOW FITTING

90° OUTLET, (SUB FOR T30738)

1шт.
