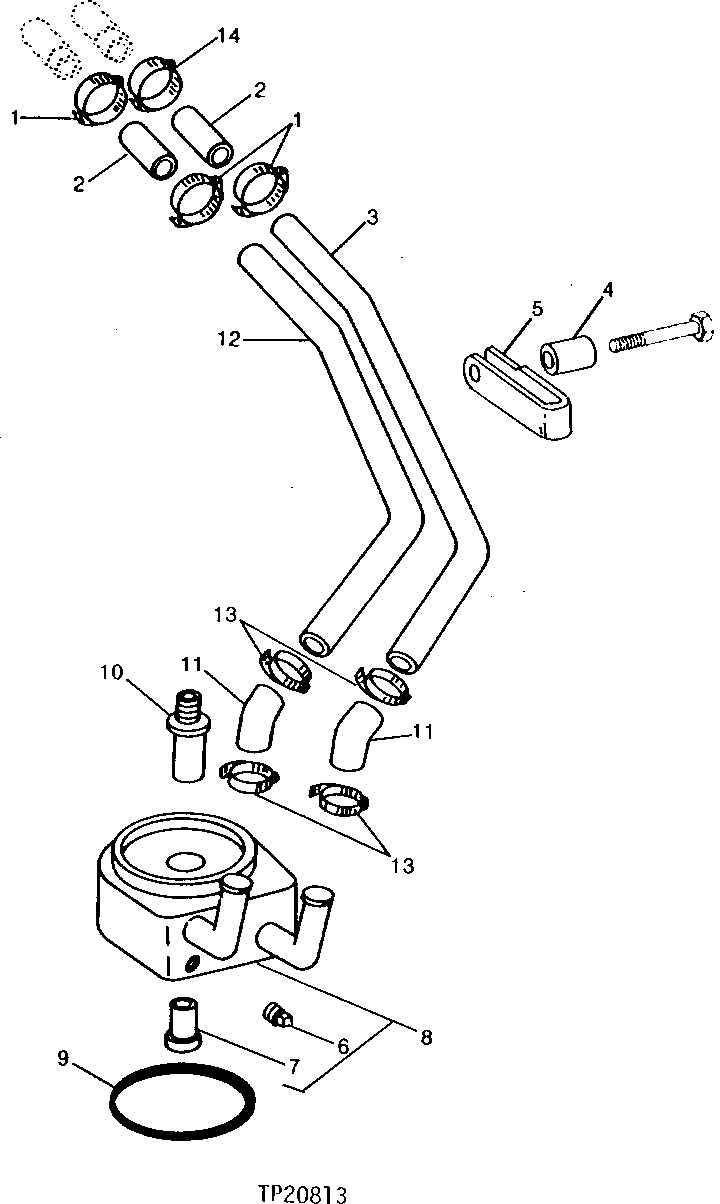

Запчасти John Deere 90 2 - ENGINE OIL COOLER 419 - ENGINE 4

1

WZ2141223

HOSE CLAMP

(SUB FOR AR21837, THIS APPLICATION) (SUB FOR AA34965)

3шт.

2

R70438

HOSE

2шт.

3

R73610

TUBE

LOWER

1шт.

4

T20280

WASHER

1шт.

5

R53524

CLAMP

1шт.

6

15M2714

DRAIN PLUG

1шт.

7

AR98853

VALVE

1шт.

8

RE14448

OIL COOLER

1шт.

9

R70956

WASHER

1шт.

10

R78290

THREADED NIPPLE

1шт.

11

R79691

HOSE

2шт.

12

R73609

TUBE

UPPER

1шт.

13

TY22467

CLAMP

(SUB FOR AR21839, THIS APPLICATION) (SUB FOR AT145650)

4шт.

14

RE32361

HOSE CLAMP

(SUB FOR AR21837, THIS APPLICATION)

1шт.
