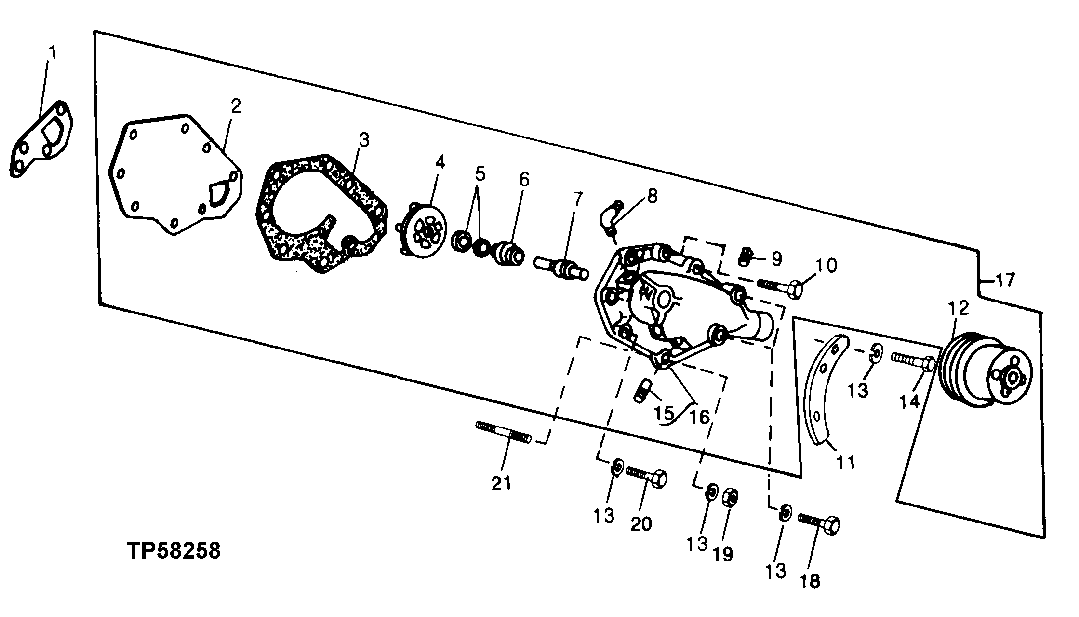

Запчасти John Deere 90 1 - WATER PUMP 417 - ENGINE 4

1

T20243

GASKET

1шт.

2

R55759

COVER

1шт.

3

R55405

GASKET

1шт.

4

T30897

IMPELLER

(SUB FOR T30897 OR R94419)

1шт.

5

INSERT

(AR41691 NO LONGER USED, SUB AR101549)

1шт.

6

AR101549

SEAL KIT

(SUB FOR T27261)

1шт.

7

JD10238

BALL BEARING

1шт.

8

T19653

ELBOW FITTING

1шт.

9

15H584

PIPE PLUG

1/2"

1шт.

10

19H3219

CAP SCREW

3/8" X 1-3/8"

3шт.

11

R79712

STRAP

1шт.

12

R79711

PULLEY

1шт.

13

12H304

LOCK WASHER

3/8"

4шт.

14

19H3217

CAP SCREW

3/8" X 1-3/4"

1шт.

19H2549

CAP SCREW

3/8" X 1-7/8"

1шт.

15

R48993

TUBE

2шт.

16

RE19719

HOUSING

(MARKED R55164) (SUB FOR AR80104)

1шт.

M1098T

CAP

OIL COOLER CONNECTION HOLES, LOOSE PARTS

2шт.

17

WATER PUMP

(RE15717 NO LONGER AVAILABLE)

1шт.

18

19H1912

CAP SCREW

3/8" X 3-1/2"

2шт.

19

14H812

NUT

3/8"

1шт.

20

19H1726

CAP SCREW

3/8" X 2-1/4"

1шт.

21

T25701

STUD

(ORDER R82674 AND 14H774)

1шт.

R82674

STUD

(USE WITH RE25595 CYLINDER BLOCK)

ARшт.
