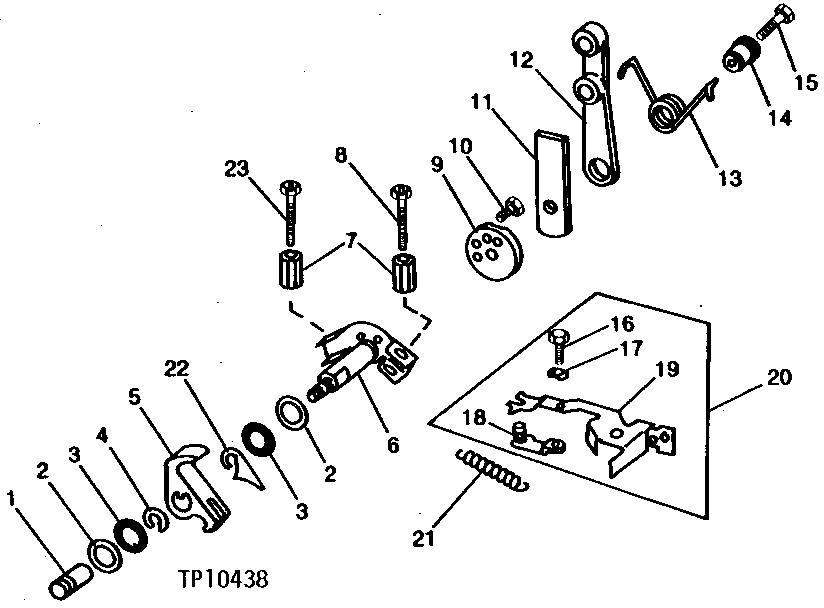

Запчасти John Deere 90 4 - FUEL INJECTION PUMP LINKAGE GROUP 413 - ENGINE 4

1

SHAFT

(A) SHUT OFF

1шт.

2

WASHER

(A) FELT

2шт.

3

R76578

O-RING

2шт.

4

CLIP

(A)

1шт.

5

LEVER

(A)

1шт.

6

SHAFT

(A) THROTTLE

1шт.

7

NUT

(A)

2шт.

8

BOLT

(A) THROTTLE LEVER, STOP

1шт.

9

T19861

SPACER

1шт.

10

T11917

SCREW

1шт.

11

T19860

STRAP

1шт.

12

T19858

LEVER

THROTTLE

1шт.

13

T17949

SPRING

1шт.

14

T17950

RETAINER

1шт.

15

R70513

SCREW

SOCKET HEAD

1шт.

16

SCREW

(A)

1шт.

17

LOCK WASHER

(A)

1шт.

18

LINK

(A) ADJUSTING

1шт.

19

HOOK

(A)

1шт.

20

HOOK

(A) ASSEMBLY

1шт.

21

SPRING

(A)

1шт.

22

CAM

(A) SHUT OFF

1шт.

23

SCREW

(A) SHUT OFF

1шт.
