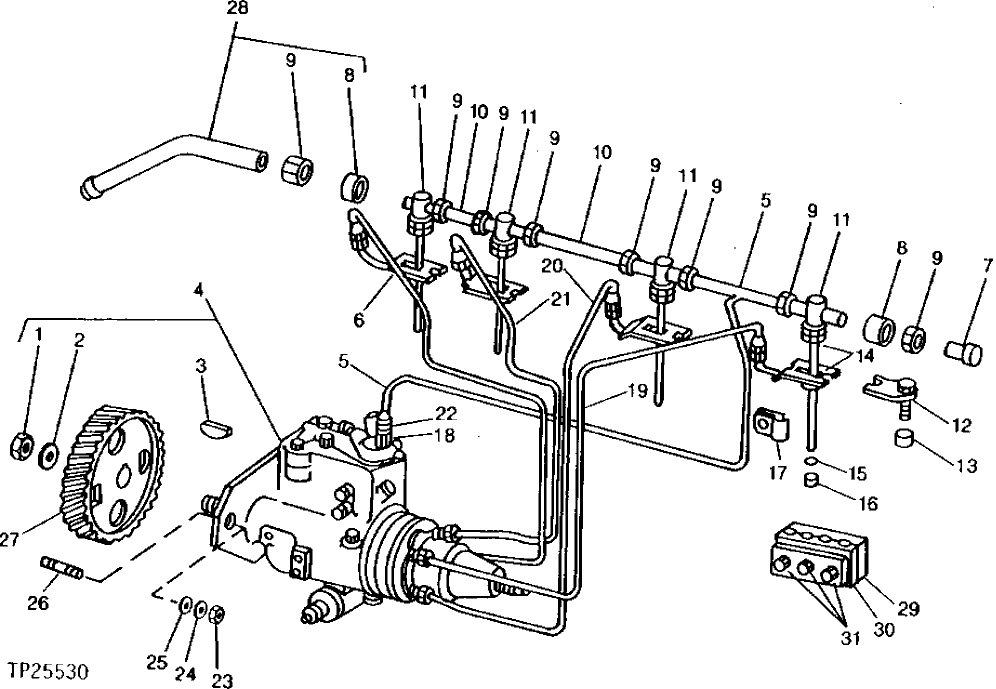

Запчасти John Deere 90 2 - FUEL INJECTION SYSTEM 413 - ENGINE 4

1

R56422

NUT

1шт.

2

R56423

WASHER

1шт.

3

M114270

SHAFT KEY

(SUB FOR R56424)

1шт.

4

RE15593

FUEL INJECTION PUMP

(ROOSA-MASTER NO. DM4427ACS4354)

1шт.

SE500630

FUEL INJECTION PUMP

(REMANUFACTURED)

1шт.

5

AR89852

FUEL LINE

1шт.

6

AR75752

FUEL LINE

NO. 1

1шт.

7

16M2605

RIVET

6 X 20 MM

1шт.

8

R51936

SEALING WASHER

8шт.

9

R51937

TUBE NUT

8шт.

10

R66090

TUBE

2шт.

11

R79606

TEE FITTING

4шт.

12

R34760

CLAMP

4шт.

13

R60745

SPACER

(K) (K1)

4шт.

14

AR90024

INJECTION NOZZLE

(ROOSA-MASTER NO. 22265) (SUB RE37503 AND R92351)

4шт.

SE500824

NOZZLE

(REMANUFACTURED)

1шт.

15

R60746

WASHER

(K) UPPER

4шт.

16

R48000

SEAL

(K) LOWER

4шт.

17

T29969

CLAMP

2шт.

18

R36535

CHECK VALVE

(PIPE TAPER FITTING)

1шт.

19

AR75755

FUEL LINE

NO. 4

1шт.

20

AR75754

FUEL LINE

NO. 3

1шт.

21

AR75753

FUEL LINE

NO. 2

1шт.

22

R35352

FITTING

1шт.

23

14H785

NUT

5/16"

3шт.

24

12H303

LOCK WASHER

5/16"

3шт.

25

24H1136

WASHER

11/32" X 11/16" X 0.065"

3шт.

26

T23442

STUD

3шт.

27

R56056

GEAR

(48 TEETH)

1шт.

28

RE16142

FUEL LINE

1шт.

29

R59299

CLAMP

2шт.

30

R61146

STRAP

1шт.

R61146

STRAP

1шт.

R59300

STRAP

1шт.

R70143

STRAP

1шт.

31

AR76704

SCREW

3шт.
