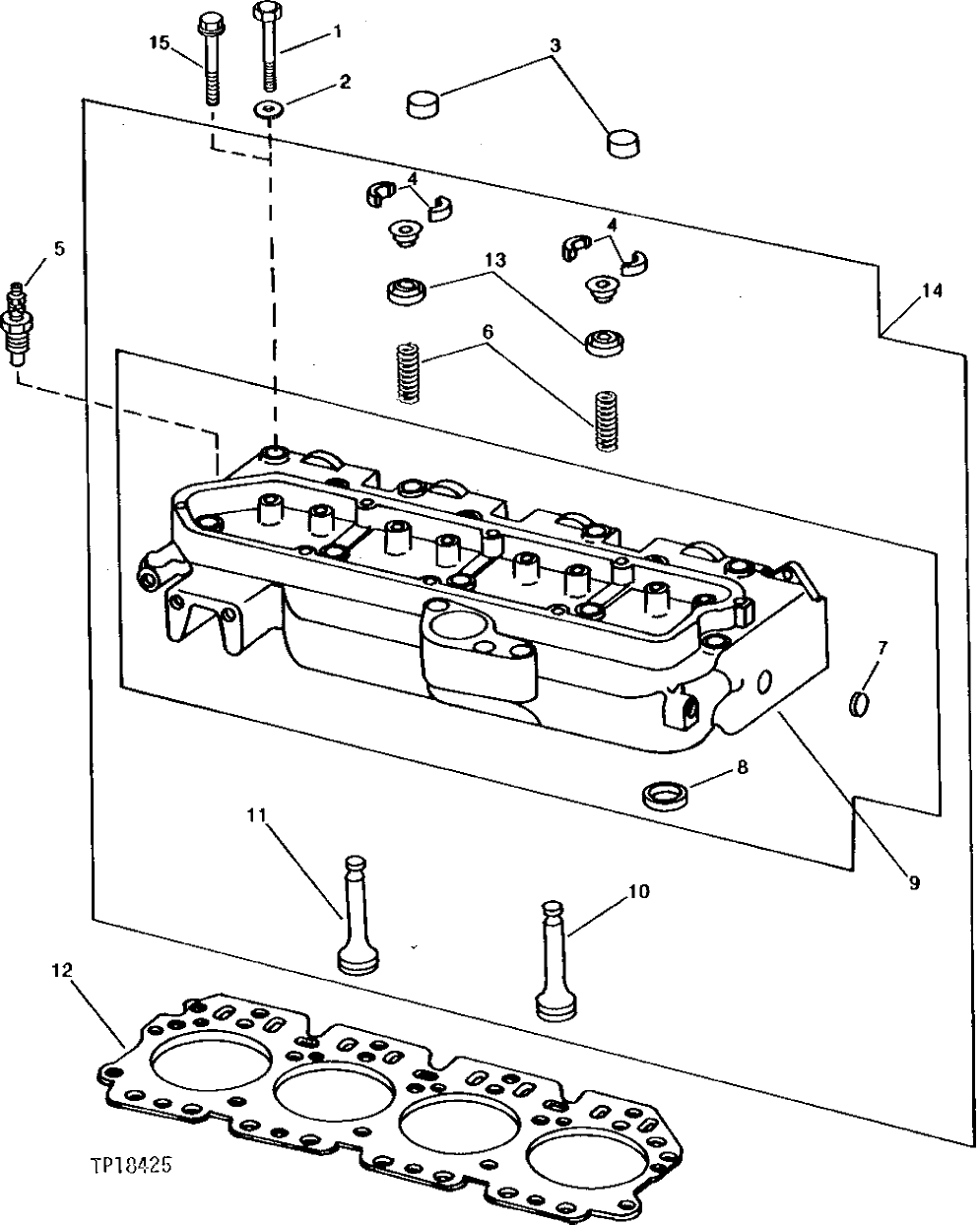

Запчасти John Deere 90 2 - CYLINDER HEAD, HEAD GASKET AND VALVES 409 - ENGINE 4

1

R53223

CAP SCREW

1/2" X 4-1/4"

18шт.

R85363

CAP SCREW

1/2" X 4-1/2", (SUB FOR T20182)

18шт.

2

T20168

WASHER

(USE WITH R53223 AND R85363)

18шт.

3

T20129

CAP

8шт.

4

T20077

RETAINER

16шт.

5

AT120609

SENDER

(SUB FOR RE15720 AND AT115442)

1шт.

6

R26125

SPRING

8шт.

7

A3910R

PLUG

O.D. 25,4MM (1")

ARшт.

CD16284

PLUG

O.D. 32,4MM (1,274")

ARшт.

8

R73064

VALVE SEAT INSERT

INTAKE VALVE

4шт.

R51734

VALVE SEAT INSERT

EXHAUST VALVE

4шт.

9

AR100074

CYLINDER HEAD

(MARKED R57078) (SUB RE56545)

1шт.

10

R79624

EXHAUST VALVE

STANDARD, (SUB FOR R52252)

4шт.

R79625

EXHAUST VALVE

0.08 MM (.003") OVERSIZE, (SUB FOR R57333)

ARшт.

R79626

EXHAUST VALVE

0.38 MM (.015") OVERSIZE, (SUB FOR R57335)

ARшт.

EXHAUST VALVE

( R79627 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE, (SUB FOR R57337)

ARшт.

11

R83071

INTAKE VALVE

(SUB FOR R72611) STANDARD

4шт.

R89223

INTAKE VALVE

(SUB FOR R76538 AND R88174) (ALSO ORDER R87627) 0.08 MM (.003") OVERSIZE STEM

ARшт.

R89224

INTAKE VALVE

(SUB FOR R76540 AND R88175) (ALSO ORDER R87627) 0.38 MM (.015") OVERSIZE STEM

ARшт.

INTAKE VALVE

(SUB FOR R76542 AND R88176) (ALSO ORDER R87627) ( R89225 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE STEM

ARшт.

R87627

O-RING

ARшт.

12

R91878

GASKET

(SUB FOR R59448 AND R80242)

1шт.

13

RE11410

ROTATOR

8шт.

14

AR100073

CYLINDER HEAD

WITH VALVES AND INSERTS, (MARKED R57078) (SUB RE56545)

1шт.

15

R85363

CAP SCREW

1/2" X 4.409"

ARшт.
