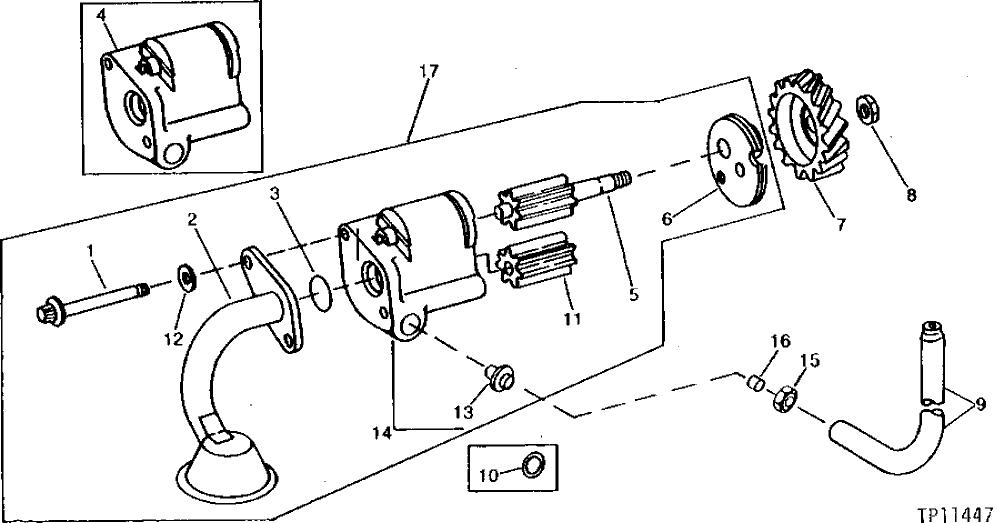

Запчасти John Deere 90 5 - ENGINE OIL PUMP 407 - ENGINE 4

1

R116424

SCREW

(SUB FOR R59409 AND R74552) (ALSO ORDER (2) R74553)

2шт.

2

RE19651

OIL PUMP INTAKE

(SUB FOR AR68370)

1шт.

3

R61871

O-RING

1шт.

4

AR63037

HOUSING

INLET, (MARKED R54629) (SUB RE15490, R79564, R79563 AND R79562)

1шт.

5

AR85788

SHAFT

(ALSO ORDER R66177)

1шт.

M3853T

GROOVE PIN

1шт.

6

R54632

COVER

33 TEETH

1шт.

7

T20298

GEAR

(33 TEETH)

1шт.

8

14H826

NUT

1/2"

1шт.

9

R62664

OIL TUBE

(SUB R79564)

1шт.

R79564

OIL TUBE

(USE WITH RE15490)

1шт.

10

R80632

O-RING

(SUB FOR R77052)

1шт.

11

R66177

GEAR

(7 TEETH) (ALSO ORDER AR85788)

1шт.

12

R74553

WASHER

(USE WITH R116424)

2шт.

13

R79560

ADAPTER FITTING

1шт.

14

RE15490

HOUSING

(MARKED R54629)

1шт.

15

R79562

FITTING

(USE WITH RE15490)

1шт.

16

R79563

SLEEVE

(USE WITH RE15490)

1шт.

17

AR79463

OIL PUMP

(ALSO ORDER RE15517)

1шт.
