4 - ENGINE OIL PRESSURE SENDING UNIT

Запчасти John Deere 90 4 - ENGINE OIL PRESSURE SENDING UNIT 407 - ENGINE 4

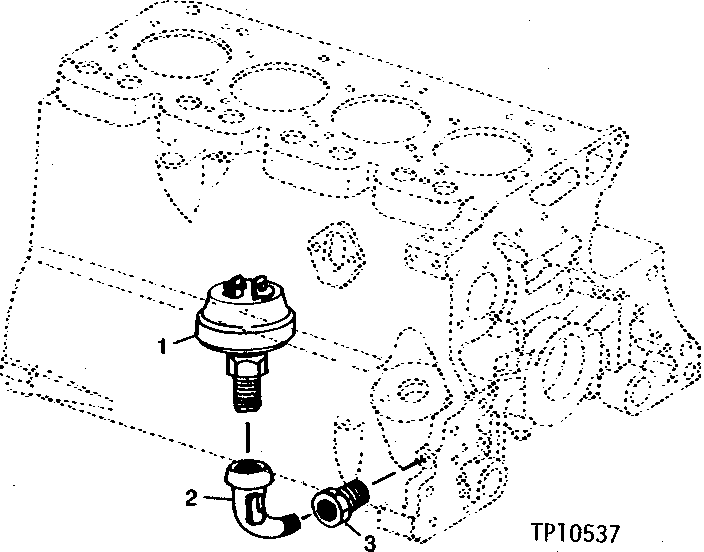

Схема запчастей John Deere 90 - 4 - ENGINE OIL PRESSURE SENDING UNIT 407 - ENGINE 4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AT157548

SWITCH

(SUB FOR AT157548) ENGINE OIL PRESSURE

1шт.

37H90

SCREW

(NOT SHOWN)

2шт.

2

M45937

ELBOW FITTING

(SUB FOR T56112, THIS APPLICATION)

1шт.

3

15H511

PIPE BUSHING

1/8"

1шт.

Выбрано товаров: 4
