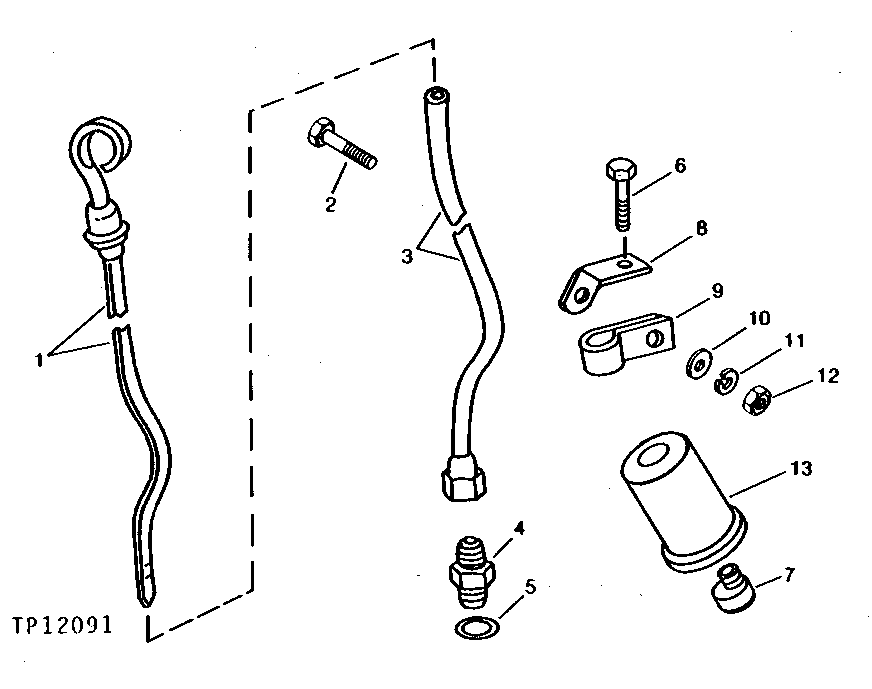

Запчасти John Deere 90 2 - ENGINE OIL DIPSTICK AND OIL FILTER 407 - ENGINE 4

1

RE46787

DIPSTICK

(SUB FOR RE10191)

1шт.

2

19H2284

CAP SCREW

3/8" X 7/8"

1шт.

3

RE25719

DIPSTICK TUBE

(SUB FOR RE10192) DIPSTICK

1шт.

4

R77016

ADAPTER FITTING

1шт.

5

F3353R

O-RING

(SUB FOR R10093, THIS APPLICATION)

1шт.

6

19H1895

CAP SCREW

1/2" X 3/4"

1шт.

7

T23435

THREADED NIPPLE

1шт.

8

R60357

ANGLE

1шт.

9

T28862

CLAMP

(SUB FOR T29299)

1шт.

10

24H1290

WASHER

21/64" X 3/4" X 0.035"

1шт.

11

12H304

LOCK WASHER

3/8"

1шт.

12

14H812

NUT

3/8"

1шт.

13

T19044

OIL FILTER

1шт.
