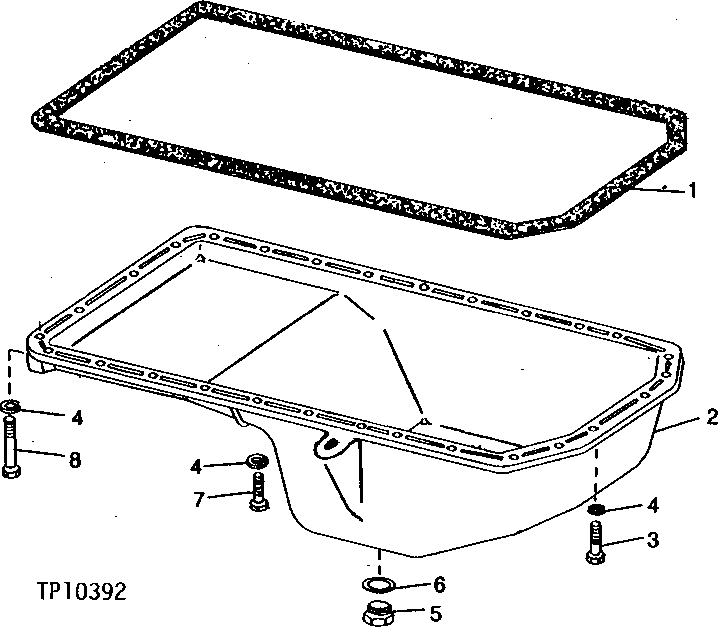

Запчасти John Deere 90 1 - ENGINE OIL PAN 407 - ENGINE 4

1

T22720

GASKET

(SUB FOR R49515, THIS APPLICATION)

1шт.

2

R59355

OIL PAN

1шт.

3

19H3217

CAP SCREW

3/8" X 1-3/4"

4шт.

4

12H304

LOCK WASHER

3/8"

28шт.

5

M1746T

DRAIN PLUG

1шт.

6

T13213

WASHER

1шт.

7

19H3239

CAP SCREW

3/8" X 1-1/4"

23шт.

8

19H3065

CAP SCREW

3/8" X 2"

1шт.
