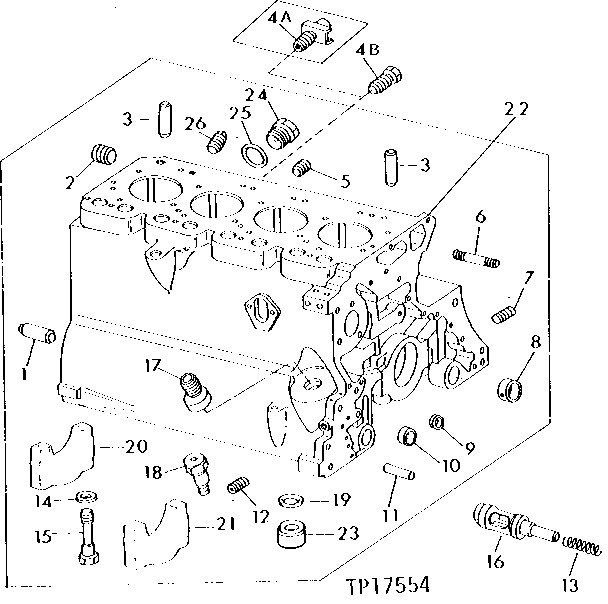

Запчасти John Deere 90 1 - CYLINDER BLOCK 404 - ENGINE 4

1

R48685

DOWEL PIN

(SUB FOR A120)

4шт.

2

15H690

PIPE PLUG

3/4"

1шт.

3

R48685

DOWEL PIN

(SUB FOR R26241, THIS APPLICATION)

2шт.

4A

AT13740

DRAIN VALVE

(WITHOUT ENGINE COOLANT HEATER)

1шт.

4B

R55233

PIPE PLUG

1шт.

5

15H275

PIPE PLUG

1/4" (WITHOUT ENGINE COOLANT HEATER)

1шт.

6

R122226

STUD

(SUB FOR R122226)

2шт.

T25701

STUD

1шт.

7

15H558

PIPE PLUG

1/8"

5шт.

8

R57160

BUSHING

6шт.

9

T18891

PLUG

2шт.

10

R26493

BUSHING

1шт.

11

R26650

DOWEL PIN

2шт.

12

15H623

PIPE PLUG

3/8"

1шт.

13

R46625

SPRING

1шт.

14

T20168

WASHER

10шт.

15

T23474

CAP SCREW

10шт.

16

R73139

FLOW CONTROL HYD. VALVE

1шт.

17

T23435

THREADED NIPPLE

1шт.

18

R54802

ORIFICE

4шт.

19

R75892

O-RING

(OIL PUMP TUBE)

1шт.

20

R79089

CAP

REAR, (SUB FOR AR82295, T23670 AND T23671)

1шт.

21

R65215

BEARING CAP

(SUB FOR AR82294, T23670 AND T23671)

4шт.

22

AR97218

CYLINDER BLOCK

(MARKED R72974) SUB RE25595 AND (18) T20182 CYLINDER HEAD CAP SCREWS

1шт.

RE25595

CYLINDER BLOCK

(MARKED R80726)

1шт.

23

R75893

FITTING

(USE WITH AR97218)

1шт.

24

R39741

DRAIN PLUG

1шт.

25

U13639

O-RING

1шт.

26

RE57836

PIPE PLUG

1/2", (SUB FOR 15H561)

1шт.
