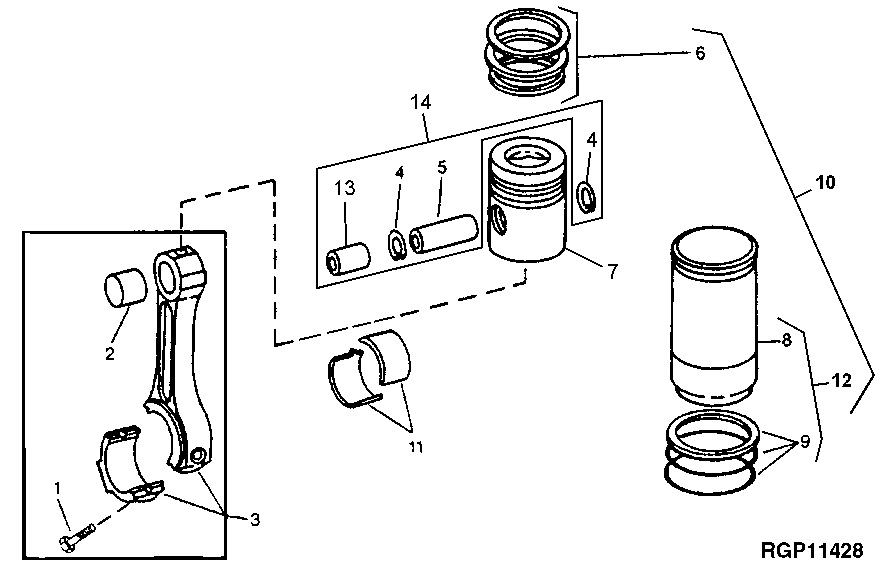

Запчасти John Deere 90 2 - CONNECTING ROD, PISTON, RINGS AND LINER 403 - ENGINE 4

1

R80033

CAP SCREW

12шт.

2

BUSHING

( R56186 NO LONGER AVAILABLE)

6шт.

3

RE42733

CONNECTING ROD

(MARKED R80032 OR R113612) (SUB FOR RE16494) (MARKED R80032)

6шт.

4

R54114

SNAP RING

12шт.

5

PIN

( R124230 NO LONGER AVAILABLE,FURNISH RE63913)

12шт.

6

RE66820

PISTON RING KIT

(SUB FOR RE15674 AND RE48818)

6шт.

7

PISTON

(FURNISH RE22678)

6шт.

8

R116281

CYLINDER LINER

(SUB FOR R51726, THIS APPLICATION) (ALSO USE AR54749 LUBRICANT FOR CYLINDER LINER PACKING INSTALLATION) (SUB FOR R90059) (SUB RE500023) (SUB (4) RE30250) (RE30250 PISTON AND LINER KIT)

6шт.

9

AR65507

O-RING KIT

6шт.

10

RE22678

PISTON-LINER KIT

(USE RE33115 IF AVAILABLE) (WHEN NO LONGER AVAILABLE USE RE22678)

6шт.

11

AR71080

BEARING

(SET OF (2) R58980)

6шт.

BEARING

( AR76128 NO LONGER AVAILABLE) .05 MM (.002") UNDERSIZE (SET OF (2) R62072)

6шт.

AR76129

BEARING

25 MM (.010") UNDERSIZE (SET OF (2) R62073)

6шт.

AR76130

BEARING

51 MM (.020") UNDERSIZE (SET OF (2) R62074)

6шт.

AR76131

BEARING

76 MM (.030") UNDERSIZE (SET OF (2) R62075)

6шт.

12

RE500023

KIT

6шт.

13

BUSHING

6шт.

14

RE63913

KIT

6шт.
