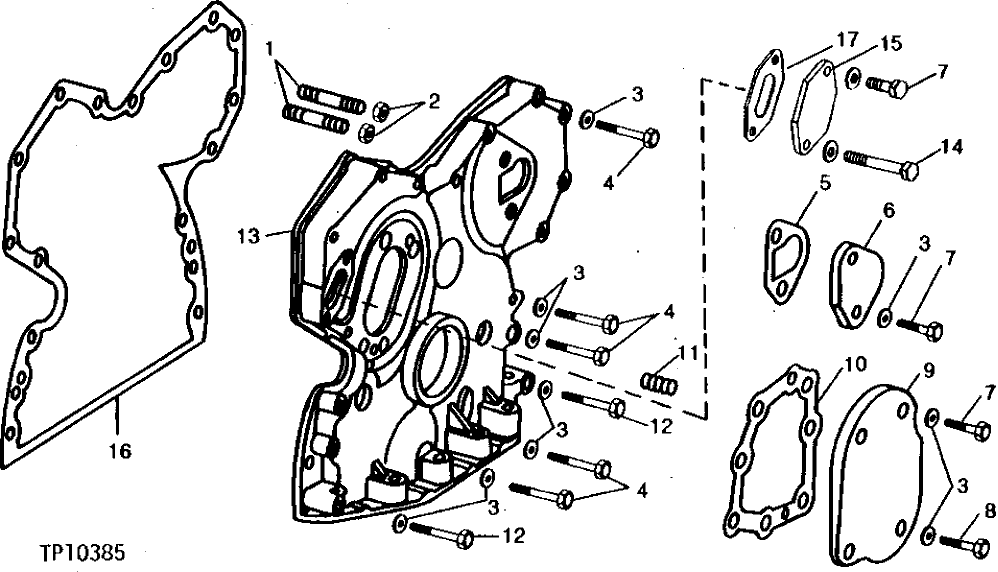

Запчасти John Deere 90 5 - TIMING GEAR COVER 402 - ENGINE 4

1

R122226

STUD

(SUB FOR R122226)

2шт.

R84984

STUD

(USE WITH RE25595 CYLINDER BLOCK)

2шт.

2

14H812

NUT

3/8"

2шт.

14H774

NUT

3/8", (USE WITH RE25595 CYLINDER BLOCK)

2шт.

3

24H1304

WASHER

13/32" X 23/32" X 0.120"

ARшт.

4

19H3065

CAP SCREW

3/8" X 2"

10шт.

5

R125066

GASKET

(SUB FOR R78366 OR R97773)

1шт.

6

R126041

COVER

(SUB FOR T20362)

1шт.

7

19H2284

CAP SCREW

3/8" X 7/8"

4шт.

R122618

SCREW

(USE WITH T23260 OR (2) R126041)

3шт.

8

19H1726

CAP SCREW

3/8" X 2-1/4"

1шт.

9

T20272

COVER

1шт.

10

T20273

GASKET

1шт.

11

15H275

PIPE PLUG

3/8" X 2-1/2"

1шт.

12

19H3031

CAP SCREW

3/8" X 2-1/2"

2шт.

13

AR58196

COVER

(MARKED R52880) (ALSO ORDER T20272, T20273, 15H275, 19H1726, (3) 19H2284 AND (4) 24H1304)

1шт.

14

19H1726

CAP SCREW

3/8" X 2-1/4"

1шт.

15

T23260

COVER

1шт.

16

R126513

GASKET

(SUB FOR T20155, R97454, R119269 OR R121314)

1шт.

17

R97352

GASKET

(SUB FOR T20336)

1шт.
