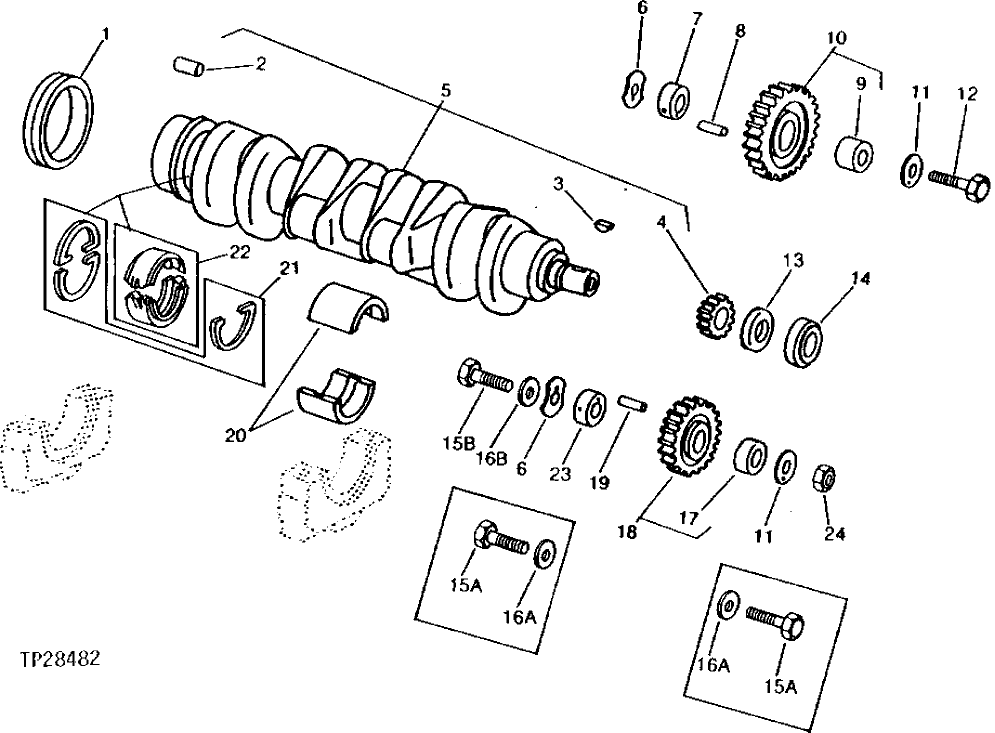

Запчасти John Deere 90 2 - CRANKSHAFT, IDLER GEARS AND MAIN BEARINGS 401 - ENGINE 4

1

RE44574

SEAL

(SUB FOR AR92893, RE17831 OR RE24959)

1шт.

2

R48685

DOWEL PIN

(SUB FOR A120R)

1шт.

3

26H72

SHAFT KEY

1/8" X 5/8"

1шт.

4

T20094

HELICAL GEAR

(24 TEETH)

1шт.

5

CRANKSHAFT

RE33197,MARKED R121018 NO LONGER AVAILABLE (SUB FOR AT18030,MARKED T23519 OR T23480, AND RE57664,MARKED R81959)SUB RE48748 CRANKSHAFT KIT

1шт.

6

T26324

THRUST WASHER

2шт.

7

R89824

SHAFT

(SUB FOR T26323)

1шт.

8

34H283

SPRING PIN

3/16" X 1-1/8"

1шт.

9

T20034

BUSHING

UPPER

1шт.

10

AR91660

GEAR

(55 TEETH) UPPER, (MARKED R70182)

1шт.

11

T26326

THRUST WASHER

2шт.

12

T26327

SCREW

1шт.

13

T20046

OIL SLINGER

1шт.

14

AR67942

SEAL

1шт.

15A

T26325

SCREW

2шт.

15B

19H3183

CAP SCREW

HS, SAE 8, 1/2" X 2-1/8"

1шт.

16A

R76126

WASHER

2шт.

16B

R100105

WASHER

1шт.

17

T26321

BUSHING

LOWER

1шт.

18

AT24252

GEAR

(45 TEETH) LOWER, (MARKED T26322)

1шт.

19

34H286

SPRING PIN

3/16" X 1-1/2"

1шт.

20

RE27352

BEARING KIT

(SUB FOR AT21140) I.D.=STANDARD (SET OF (2) T23214)

4шт.

BEARING

( AT21108 NO LONGER AVAILABLE) I.D.=0.254MM (.010") (SET OF (2) T23552)

ARшт.

RE27353

BEARING KIT

I.D.=0.254MM (.010") (SET OF (2) T23554) (SUB FOR AT21110)

ARшт.

RE27360

KIT

I.D.=-0.508MM (.020") (SET OF (2) T23556) (SUB FOR AT21112)

ARшт.

RE27368

KIT

I.D.=-0.762MM (.030") (SET OF (2) T23558) (SUB FOR AT21114)

ARшт.

21

BEARING KIT

TK=STANDARD (RE13571 NO LONGER AVAILABLE, SUB.(3)R78598)

1шт.

R78598

THRUST WASHER

3шт.

AR95932

KIT

1шт.

22

RE57279

BEARING

REAR,I.D.=STANDARD, (SUB FOR AR81786) (SUB FOR RE27350 AND RE60350) (SET OF (2) R83381) (SUB FOR AT21139) (SET OF (2) T23215)

1шт.

RE27351

KIT

REAR,I.D.= -0.254MM (.010") (SET OF (2) R87749) (SUB FOR AT21130) (SET OF (2) T23474) AND (SUB FOR AT21132) (SET OF (2) T23576)

ARшт.

RE27359

KIT

REAR,I.D.=-0.508MM (.020") (SET OF (2) R87755) (SUB FOR AT21134) (SET OF (2) T23578)

ARшт.

RE27366

KIT

REAR,I.D.=-0.762MM (.030") (SET OF (2) R87758) (SUB FOR AT21136) (SET OF (2) T23480)

ARшт.

23

T26323

SHAFT

1шт.

R89824

SHAFT

1шт.

24

14H865

NUT

1/2"

1шт.
