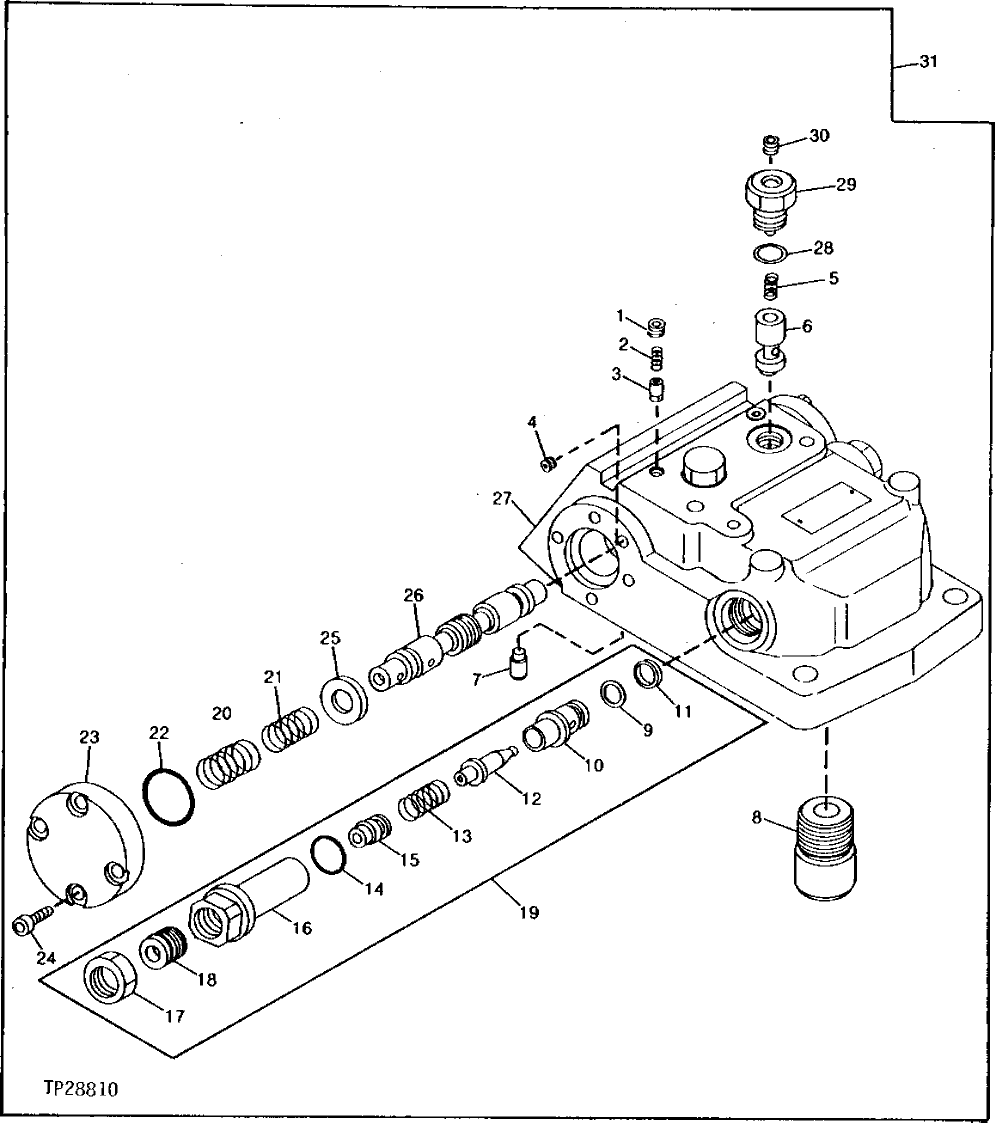

Запчасти John Deere 90 2 - COUNTERBALANCE VALVE 260 - AXLES AND SUSPENSION SYSTEMS 2

1

37H99

SCREW

0.100" X 1/4", (SUB FOR TH100069)

2шт.

2

4145921

COMPRESSION SPRING

(SUB FOR TH100063)

2шт.

3

4145920

POPPET

(SUB FOR TH100062)

2шт.

4

15H560

PIPE PLUG

1/16", (SUB FOR TH100064)

2шт.

5

4070131

COMPRESSION SPRING

(SUB FOR TH100059)

2шт.

6

4126451

POPPET

(SUB FOR TH100058)

2шт.

7

4046490

DOWEL PIN

(SUB FOR TH100067)

2шт.

8

4171180

SHAFT

(SUB FOR TH106982)

1шт.

9

4038533

BACK-UP RING

(SUB FOR TH100050)

1шт.

10

SLEEVE

( TH100048 NO LONGER AVAILABLE)

1шт.

11

CH11570

O-RING

(SUB FOR TH100049)

1шт.

12

PISTON

( TH100051 NO LONGER AVAILABLE)

1шт.

13

COMPRESSION SPRING

( TH100052 NO LONGER AVAILABLE)

1шт.

14

4506424

O-RING

(SUB FOR TH100055)

1шт.

15

RETAINER

( TH100053 NO LONGER AVAILABLE)

1шт.

16

RETAINER

( TH100054 NO LONGER AVAILABLE)

1шт.

17

NUT

( TH100057 NO LONGER AVAILABLE)

1шт.

18

SET SCREW

( TH100056 NO LONGER AVAILABLE)

1шт.

19

9048471

PRESSURE RELIEF VALVE

(SUB FOR TH100047)

2шт.

20

4162861

COMPRESSION SPRING

(SUB FOR TH102683)

2шт.

21

4162862

COMPRESSION SPRING

(SUB FOR TH102682)

2шт.

22

AT264324

O-RING

(SUB FOR TH100044) (USE IF AVAILABLE)

2шт.

AT264324

O-RING

(SUB FOR T32587, TH100044)

2шт.

23

4126450

COVER

(SUB FOR TH100045)

2шт.

24

M341232

BOLT

(SUB FOR TH100046)

8шт.

25

4120224

WASHER

(SUB FOR TH100041)

2шт.

26

SPOOL

(SUB TH100037)

1шт.

27

HOUSING

(SUB TH100037)

1шт.

28

4506418

O-RING

(SUB FOR TH100061) (SUB FOR U46489)

2шт.

29

4136603

FITTING PLUG

(SUB FOR TH100060)

2шт.

30

94-2010

FITTING PLUG

(SUB FOR TH100689)

4шт.

31

9048327

VALVE

(SUB FOR TH100037)

1шт.
