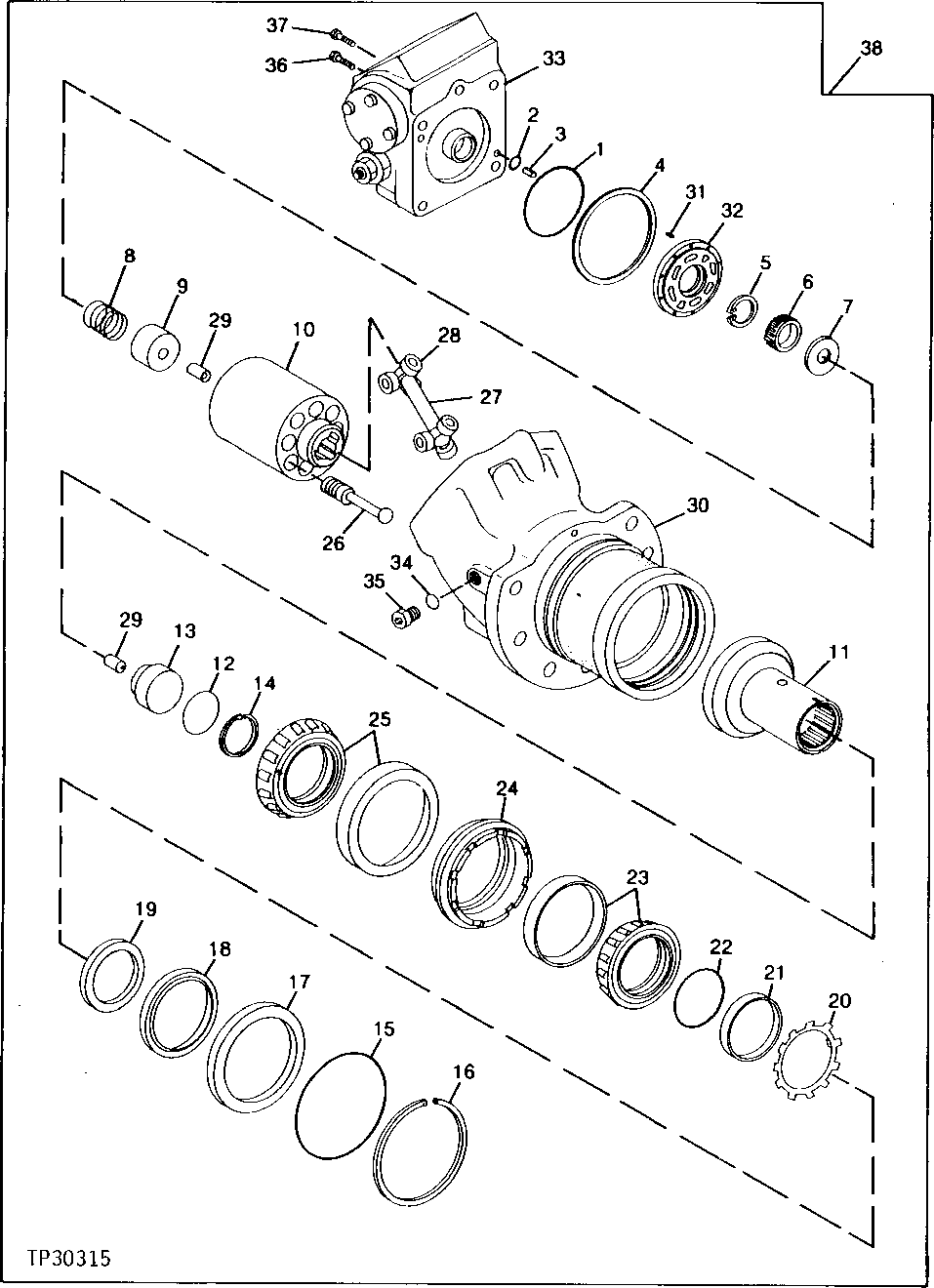

Запчасти John Deere 90 2 - PROPEL MOTOR 250 - AXLES AND SUSPENSION SYSTEMS 2

1

A810120

O-RING

(SUB FOR TH100031)

1шт.

2

CH11569

PACKING

(SUB FOR TH100032)

1шт.

3

CH15134

PIN

(SUB FOR TH100033)

1шт.

4

4147546

SNAP RING

(SUB FOR TH100035)

1шт.

5

SNAP RING

( 40M1862 NO LONGER AVAILABLE) (SUB FOR TH100025)

1шт.

6

L65031

CYLINDRICAL ROLLER BEARING

(SUB FOR TH100024) (SUB FOR JD10105)

1шт.

7

4114335

WASHER

(SUB FOR TH100023)

1шт.

8

4114332

COMPRESSION SPRING

(SUB FOR TH100022)

1шт.

9

4137948

RETAINER

(SUB FOR TH100021)

1шт.

10

2013674

ROTOR

(SUB FOR TH100020)

1шт.

11

2015159

DRIVE DISK

(SUB FOR TH100003)

1шт.

12

CH11436

O-RING

(SUB FOR TH100004)

1шт.

13

TH100005

RETAINER

1шт.

14

40M1864

SNAP RING

(SUB FOR TH100006)

1шт.

15

AT264224

O-RING

(SUB FOR TH100029, AT122159)

1шт.

16

40M7231

SNAP RING

(SUB FOR TH100030)

1шт.

17

4138075

SEAL

(SUB FOR TH100013)

1шт.

18

TH100012

SEAL

1шт.

19

454939

NUT

(SUB FOR TH100015)

1шт.

20

454956

WASHER

(SUB FOR TH100014)

1шт.

21

4127345

SLEEVE

(SUB FOR TH100011)

1шт.

22

CH14671

PACKING

(SUB FOR TH100010)

1шт.

23

TH100009

TAPERED ROLLER BEARING

1шт.

24

3025192

SPACER

(SUB FOR TH100008)

1шт.

25

TH100007

TAPERED ROLLER BEARING

1шт.

26

9044928

PISTON

(SUB FOR TH100016)

9шт.

27

3020028

ROD

(SUB FOR TH100017)

1шт.

28

TH100018

SPHERICAL ROLLER BEARING

6шт.

29

4137947

STOP

(SUB FOR TH100019)

2шт.

30

HOUSING

( TH100026 NO LONGER AVAILABLE)

1шт.

31

34M7061

SPRING PIN

8 X 20 MM, (SUB FOR TH100034)

2шт.

32

3022866

PLATE

(SUB FOR TH100036)

1шт.

33

9048327

VALVE

(SUB FOR TH100037)

1шт.

34

CH11562

O-RING

(SUB FOR TH100028)

1шт.

35

4074727

DRAIN PLUG

(SUB FOR TH100027)

1шт.

36

19M8712

SCREW

M14 X 50, (SUB FOR TH100039)

2шт.

37

M341400

SCREW

(SUB FOR TH100038)

2шт.

38

AT217309

HYDRAULIC MOTOR

(REMANUFACTURED) (SUB FOR TH100002)

2шт.
