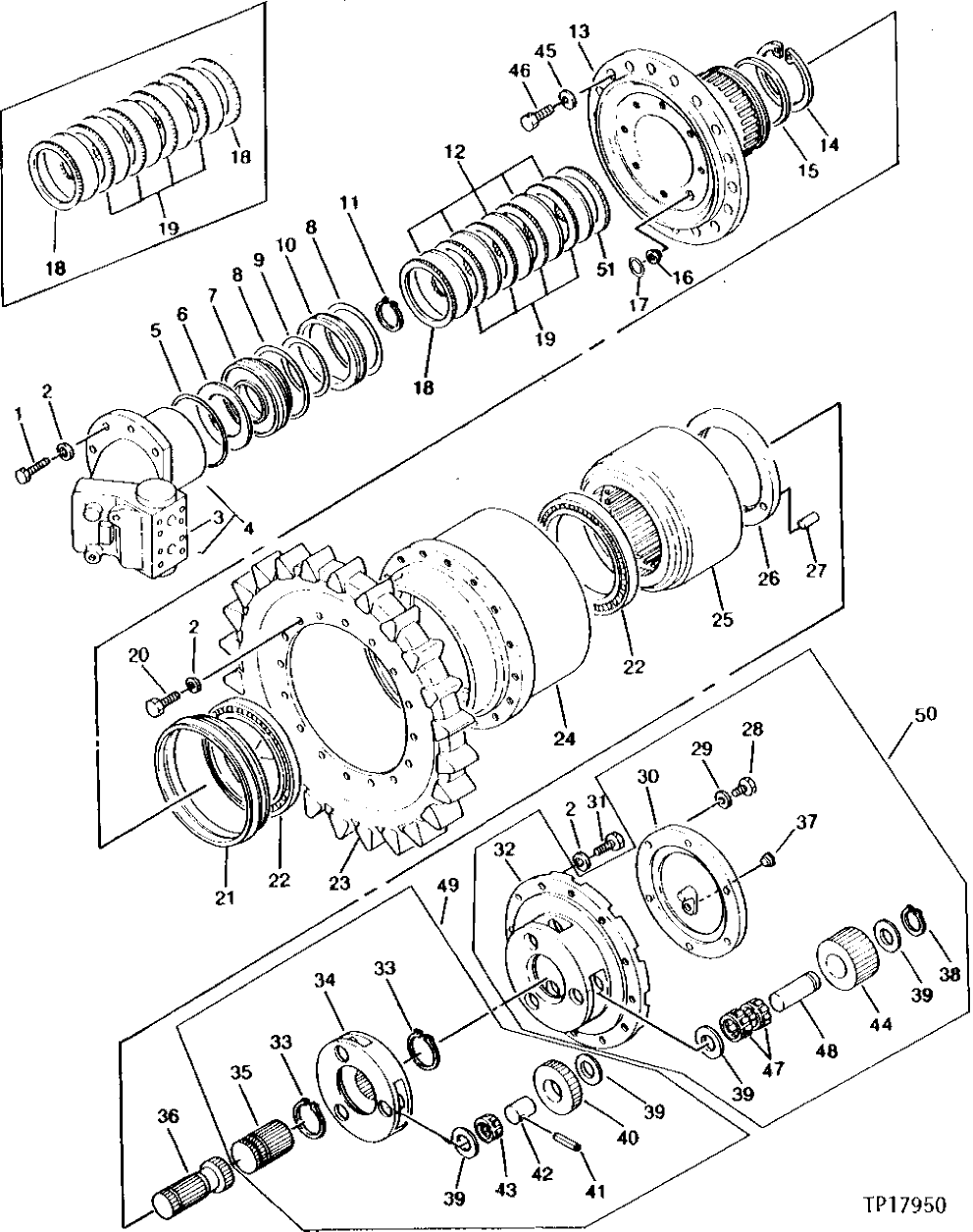

Запчасти John Deere 90 18 - PROPEL MOTOR, BRAKE AND FINAL DRIVE 130 - TRACKS 1

1

19M7409

CAP SCREW

M16 X 50

7шт.

2

12H294

LOCK WASHER

5/8", (SUB FOR TH100466)

35шт.

3

9048327

VALVE

(SUB FOR TH100037) BRAKE

1шт.

4

AT217309

HYDRAULIC MOTOR

(REMANUFACTURED) (SUB FOR TH100002)

1шт.

5

O-RING

(K) ( TH100499 NO LONGER AVAILBALE)

1шт.

6

3020853

DISK SPRING

(SUB FOR TH100497)

1шт.

7

3022888

PISTON

(SUB FOR TH100496)

1шт.

8

O-RING

(K) ( TH100494 NO LONGER AVAILABLE)

2шт.

9

4324947

O-RING

(K) (SUB FOR 4117030 OR TH100495)

1шт.

10

4115810

SPACER

(SUB FOR TH100493)

1шт.

11

40M7066

SNAP RING

(SUB FOR TH100498)

1шт.

12

3022524

BRAKE DISK

(SUB FOR TH100491)

5шт.

13

1005849

HOUSING

(SUB FOR TH100459)

1шт.

14

40M7194

SNAP RING

(SUB FOR TH100461)

1шт.

15

4115811

SPACER

(SUB FOR TH100460)

1шт.

16

4135291

SPACER

(SUB FOR TH100502)

1шт.

17

CH17167

O-RING

(SUB FOR TH100500)

1шт.

18

3030241

CLUTCH PLATE

(BRAKE SEPARATOR) (SUB FOR TH100490) (SUB TH102312 AND TH102309)

2шт.

3030240

CLUTCH PLATE

(SUB FOR TH102312)

1шт.

19

3030239

CLUTCH PLATE

(SUB FOR TH100492)

4шт.

3030239

CLUTCH PLATE

(SUB FOR TH102311)

4шт.

20

19M7489

CAP SCREW

M16 X 45

16шт.

21

TH100463

SEAL

1шт.

22

JD10423

BEARING CUP

(SUB FOR TH100426 ALONG WITH JD10425)

2шт.

JD10425

BEARING CONE

(SUB FOR TH100462 ALONG WITH JD10423)

2шт.

23

1005873

DRIVE SPROCKET

(SUB FOR TH100465)

1шт.

24

1005872

HUB

(SUB FOR TH100464)

1шт.

25

2015088

RING GEAR

(SUB FOR TH100468)

1шт.

26

3022523

RETAINER

(SUB FOR TH100469)

1шт.

27

4126653

DOWEL PIN

(SUB FOR TH100470)

1шт.

28

19M7872

CAP SCREW

M12 X 25

6шт.

29

4065034

WASHER

(SUB FOR TH100486)

6шт.

30

2015089

COVER

(SUB FOR TH100484)

1шт.

31

19M7488

CAP SCREW

M16 X 40

12шт.

32

1005871

PLANET PINION CARRIER

(SUB FOR TH100479)

1шт.

33

40M7120

SNAP RING

(SUB FOR TH100473)

2шт.

34

2016959

PLANET PINION CARRIER

(SUB FOR TH100471)

1шт.

35

TH100472

SUN GEAR

1шт.

36

2015123

DRIVE SHAFT

(SUB FOR TH100489)

1шт.

37

4241426

FITTING PLUG

(SUB FOR TH100487) (SUB FOR TH111907)

1шт.

38

962002

SNAP RING

(SUB FOR TH100483)

3шт.

39

4135227

THRUST WASHER

(SUB FOR TH100477)

12шт.

40

TH100474

GEAR

3шт.

41

4082632

SPRING PIN

(SUB FOR TH100478)

3шт.

42

4135192

PIN FASTENER

(SUB FOR TH100475)

3шт.

43

4135194

NEEDLE BEARING

(SUB FOR TH100476)

3шт.

44

3022429

GEAR

(SUB FOR TH100480)

3шт.

45

12M7070

LOCK WASHER

20 MM

28шт.

46

19M8639

CAP SCREW

M20 X 70, (SUB FOR TH100504) (SUB FOR 19M8387)

28шт.

47

4139193

NEEDLE BEARING

(SUB FOR TH100481)

6шт.

48

4138218

PIN FASTENER

(SUB FOR TH100482)

3шт.

49

PLANET PINION CARRIER

( TH105666 NO LONGER AVAILABLE, ORDER INDIVIDUAL COMPONENTS)

1шт.

50

PLANET PINION CARRIER

( TH105667 NO LONGER AVAILABLE, ORDER INDIVIDUAL COMPONENTS)

1шт.

51

3030241

CLUTCH PLATE

(SUB FOR TH102309) (RADIAL GROOVES IN THE PLATES SHOULD BE ON THE SPACER SIDE)

1шт.
