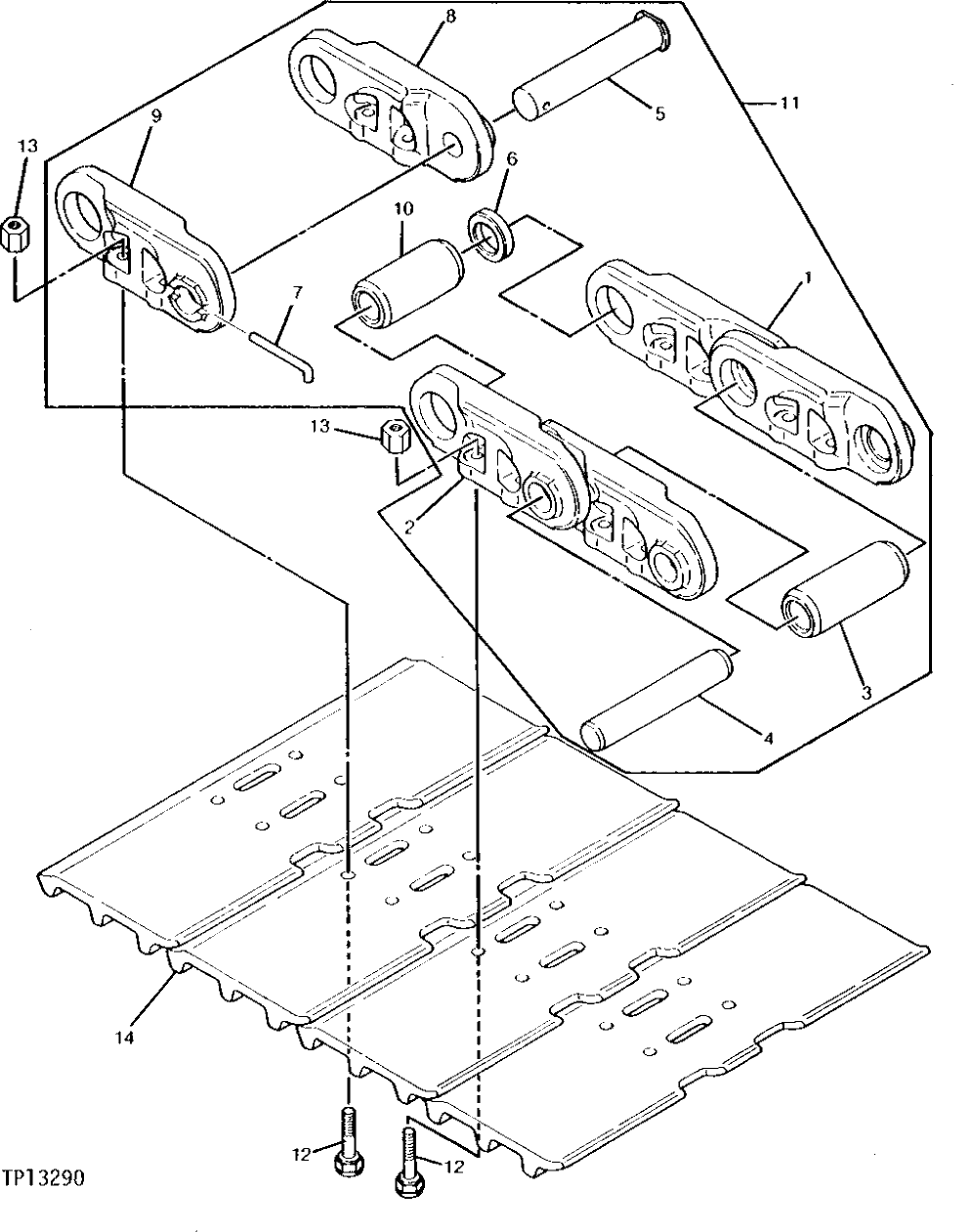

Запчасти John Deere 90 4 - TRACK SHOES AND CHAIN 130 - TRACKS 1

1

TRACK LINK

(SUB 1010119, 1010120, (2) 4347208 AND AT128414) (SUB FOR TH100388 AND AT173245, THIS APPLICATION)

42шт.

2

TRACK LINK

(SUB 1010119, 1010120, AT128414, (2) 4347208, AT128414) (SUB FOR 3023212 AND AT173245, THIS APPLICATION)

42шт.

3

4129251

BUSHING

(SUB FOR TH100390)

42шт.

BUSHING

(SUB TH108893, TH108894, AT128414, (2) 4347208, AT128414 AND AT173245)

42шт.

4

AT173246

PIN

(SUB FOR TH100391 OR TH108896)

42шт.

5

4150285

PIN FASTENER

(SUB FOR TH100392) (SUB FOR TH101374) MASTER

1шт.

4157878

PIN FASTENER

(SUB FOR TH103459) MASTER

1шт.

6

SPACER

( 4510917 NO LONGER AVAILABLE) (SUB 1010120, AT128412, TH100397, AT173247, TH108898 AND TH108899) MASTER

2шт.

7

4098449

PIN FASTENER

(SUB FOR TH100394)

1шт.

4145374

PIN

(SUB FOR TH102373)

1шт.

8

MASTER TRACK LINK

( 3029282 NO LONGER AVAILABLE) (SUB 1010120, AT128412, TH100397, AT173247, TH108898 AND TH108899)

1шт.

9

MASTER TRACK LINK

( TH100396 NO LONGER AVAILABLE) (SUB 1010120, AT128412, TH100397, AT173247, TH108898 AND TH108899)

1шт.

MASTER TRACK LINK

( TH103458 NO LONGER AVAILABLE) (SUB 1010120, AT128412, TH100397, AT173247, TH108898 AND TH108899)

1шт.

10

TH100397

BUSHING

MASTER

1шт.

11

AT128409

TRACK CHAIN W/O SHOES

(REMOVE LINKS TO CORRECT LENGTH) (SUB FOR TH100387 AND TH108892)

1шт.

12

4254888

BOLT

(SUB FOR TH100398, ALONG WITH AT180443)

172шт.

13

4122664

NUT

(SUB FOR TH100399) (USE WITH TH100398 BOLT)

172шт.

AT180443

NUT

(SUB FOR AT128416) (USE WITH 4254888 BOLT)

172шт.

14

2037093

OPEN CENTER 3 BAR SHOE

(SUB FOR TH100400 AND 2019235) 500 MM (20")

43шт.

2024425

OPEN CENTER 3 BAR SHOE

(SUB FOR TH108986) 700 MM (SUB FOR 710MM SHOE - TH101375)

43шт.
