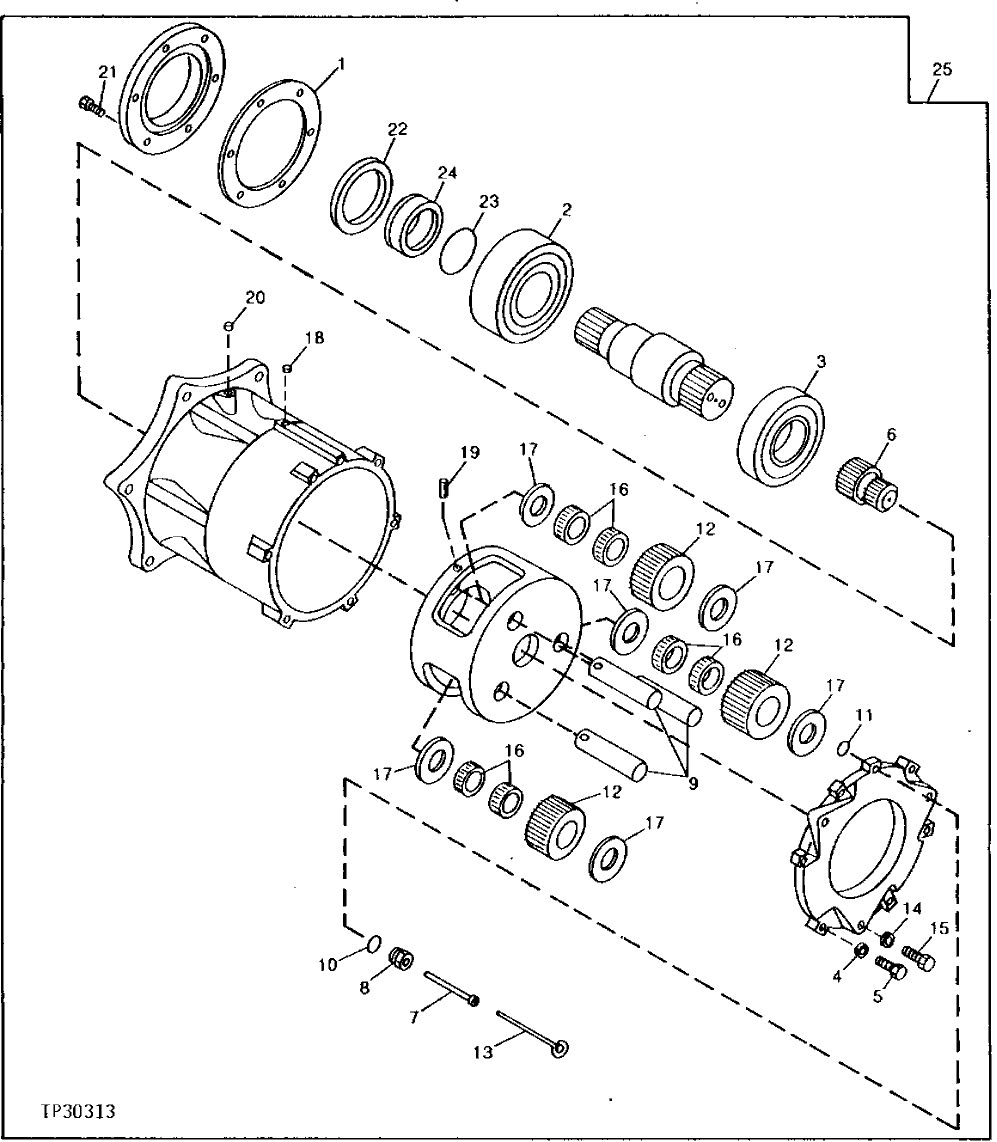

Запчасти John Deere 90 8 - SWING DRIVE MOTOR GEAR CASE 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

T43514

GASKET

1шт.

2

TH100178

SPHERICAL ROLLER BEARING

1шт.

3

TH100179

CYLINDRICAL ROLLER BEARING

1шт.

4

12H301

LOCK WASHER

1/2", (SUB FOR TH100181)

6шт.

5

19M8634

CAP SCREW

M12 X 35, (SUB FOR TH100180)

6шт.

6

0212403

SUN GEAR

(SUB FOR TH100182)

1шт.

7

0212418

UNION FITTING

(SUB FOR TH100200)

1шт.

8

0212417

PLUG

(SUB FOR TH100199)

1шт.

9

0212404

SHAFT

(SUB FOR TH100183)

3шт.

10

0212416

O-RING

(SUB FOR TH100198)

1шт.

11

0101272

O-RING

(SUB FOR TH100196) (USE IF AVAILABLE)

1шт.

12

0212414

GEAR

(SUB FOR TH100195)

3шт.

13

0212415

DIPSTICK

(SUB FOR TH100197)

1шт.

14

12M7069

LOCK WASHER

16 MM, (SUB FOR TH100185)

3шт.

15

0212405

BOLT

(SUB FOR TH100184)

3шт.

16

0212413

NEEDLE BEARING

(SUB FOR TH100194)

6шт.

17

0212412

THRUST WASHER

(SUB FOR TH100193)

6шт.

18

0101207

ELBOW FITTING

(SUB FOR TH100192)

1шт.

19

34M7124

SPRING PIN

8 X 30 MM, (SUB FOR TH100191)

3шт.

20

94-2012

FITTING PLUG

(SUB FOR TH100190) (SUB FOR TH100653)

1шт.

21

19M8721

CAP SCREW

M12 X 30, (SUB FOR TH100189)

6шт.

22

0234207

SEAL

(SUB FOR TH100188)

1шт.

23

0212408

O-RING

(SUB FOR TH100187)

1шт.

24

0212407

BUSHING

(SUB FOR TH100186)

1шт.

25

4149123

GEAR CASE

(SUB FOR TH100177)

1шт.
