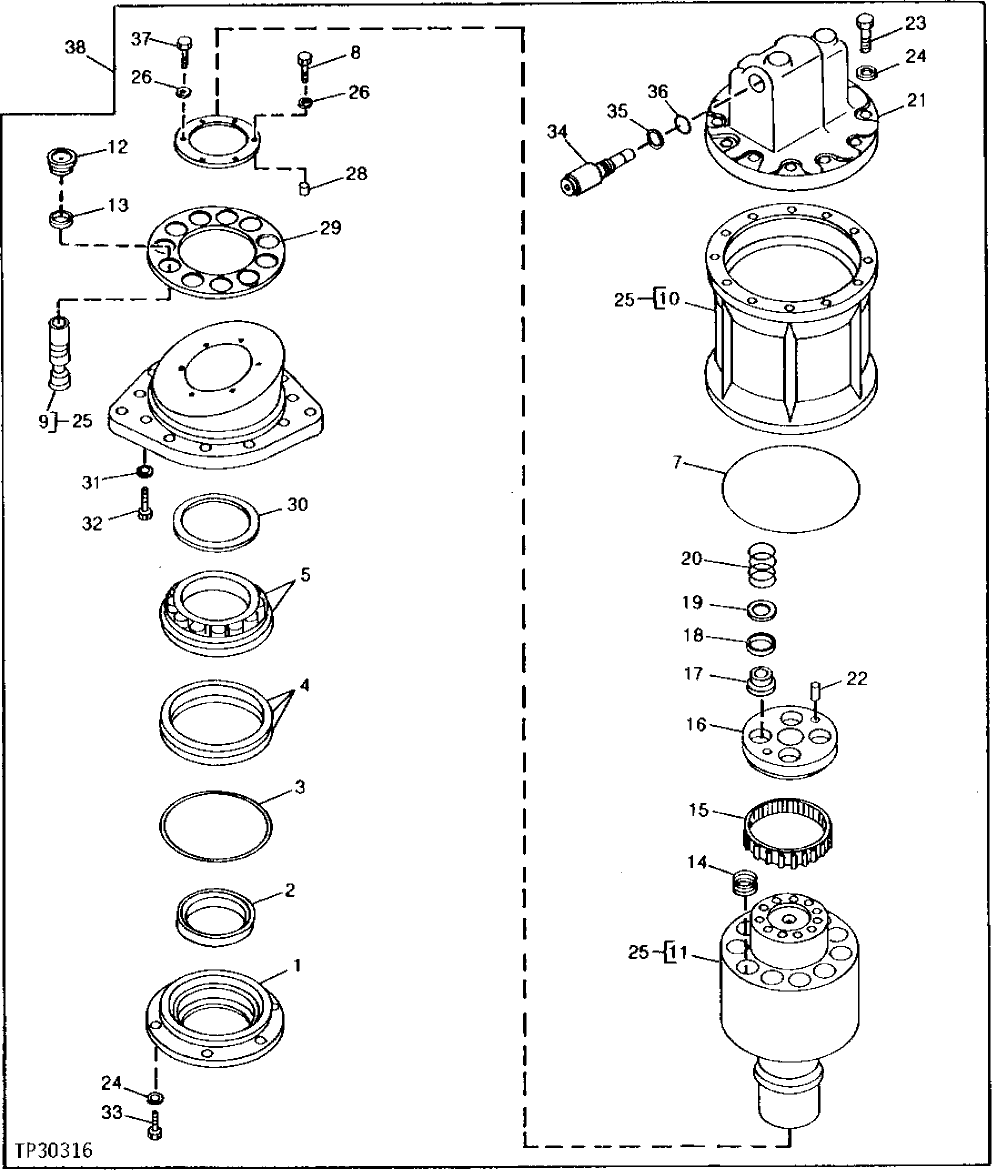

Запчасти John Deere 90 6 - SWING DRIVE MOTOR 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

0302801

RETAINER

(SUB FOR TH106978)

1шт.

2

4215633

SEAL

(SUB FOR TH100203)

1шт.

3

0212202

O-RING

(SUB FOR TH100204)

1шт.

4

SHIM

(A) ( TH100205 NO LONGER AVAILABLE)

1шт.

SHIM

(A) ( TH100206 NO LONGER AVAILABLE)

1шт.

SHIM

(A) ( TH100207 NO LONGER AVAILABLE)

1шт.

5

TH100208

TAPERED ROLLER BEARING

1шт.

6

CAM

(USE TH106979 IF AVAILABLE)

1шт.

7

0212223

O-RING

(SUB FOR TH100209)

2шт.

8

TH100210

CAP SCREW

2шт.

9

PISTON

(SUB TH106977)

11шт.

10

HOUSING

( TH106980 NO LONGER AVAILABLE)

1шт.

11

CYLINDER

(SUB TH106977)

1шт.

12

0212208

SHOE

(SUB FOR TH100211)

11шт.

13

0212209

RING

(SUB FOR TH100212)

11шт.

14

TH100213

SPRING

11шт.

15

TH100214

CYLINDRICAL ROLLER BEARING

1шт.

16

0212212

WEAR PLATE

(SUB FOR TH100215)

1шт.

17

0212213

BUSHING

(SUB FOR TH100216)

4шт.

18

0111418

RING

(SUB FOR TH100217) (USE IF AVAILABLE)

4шт.

19

TH100218

WASHER

4шт.

20

TH100219

SPRING

4шт.

21

COVER

( TH106981 NO LONGER AVAILABLE)

1шт.

22

0101522

DOWEL PIN

(SUB FOR TH100220)

2шт.

23

19M7493

CAP SCREW

M12 X 40, (SUB FOR TH100221)

12шт.

24

12H301

LOCK WASHER

1/2", (SUB FOR TH100181)

18шт.

25

4195016

PISTON

(SUB FOR TH106977)

1шт.

26

12H302

LOCK WASHER

1/4", (SUB FOR TH100222)

6шт.

27

0212218

PLATE

(SUB FOR TH100223)

1шт.

28

0212219

WASHER

(SUB FOR TH100224)

6шт.

29

0212220

PLATE

(SUB FOR TH100225)

1шт.

30

0212221

BACK-UP RING

(SUB FOR TH100226)

1шт.

31

TH100227

LOCK WASHER

12шт.

32

TH100228

SCREW

12шт.

33

19M8721

CAP SCREW

M12 X 30, (SUB FOR TH100229)

6шт.

34

0212222

RELIEF VALVE

(SUB FOR TH100230)

2шт.

35

4044839

BACK-UP RING

(SUB FOR TH103457)

1шт.

36

AT264347

O-RING

(SUB FOR TH100136, 4506428)

1шт.

37

19M7286

CAP SCREW

(SUB FOR TH101604)

4шт.

38

4149124

HYDRAULIC MOTOR

(REMANUFACTURED) (SUB FOR TH100202, AT217310)

1шт.
