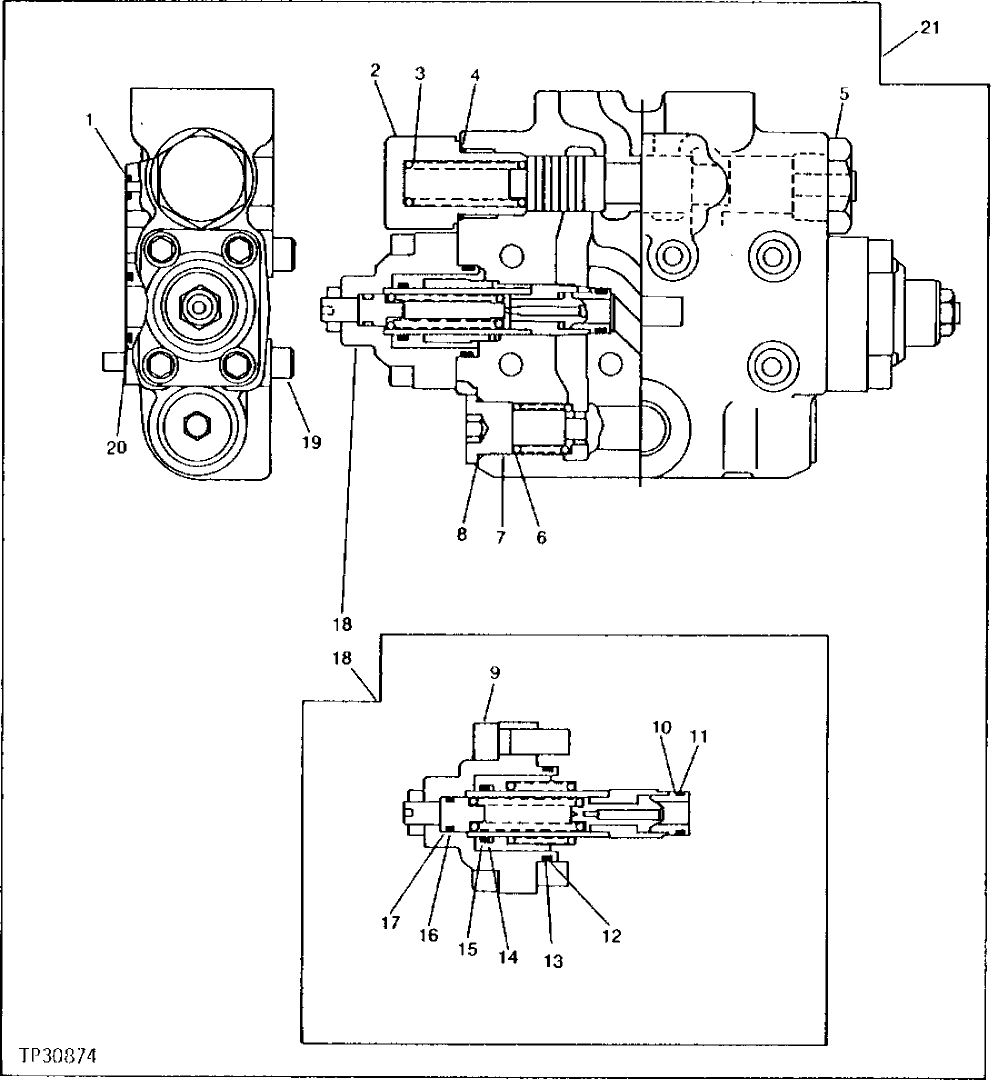

Запчасти John Deere 90 5A - SWING LOCK VALVE 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

CH17167

O-RING

(SUB FOR TH100500)

1шт.

2

0234002

PIPE PLUG

(SUB FOR TH103571)

1шт.

3

0234001

SPRING

(SUB FOR TH103570)

1шт.

4

TH101926

O-RING

2шт.

5

0234003

PIPE PLUG

(SUB FOR TH103572)

1шт.

6

0224808

SPRING

(SUB FOR TH103580)

2шт.

7

T64769

DRAIN PLUG

(SUB FOR TH103581)

2шт.

8

U12547

O-RING

(SUB FOR TH103582)

2шт.

9

19M8448

SCREW

(SUB FOR TH101907)

4шт.

10

4506418

O-RING

(SUB FOR TH100061) (SUB FOR U46489)

1шт.

11

4033725

BACK-UP RING

(SUB FOR TH103576)

2шт.

12

985097

O-RING

(SUB FOR TH103575)

1шт.

13

4017625

BACK-UP RING

(SUB FOR TH103578)

1шт.

14

4071340

BACK-UP RING

(SUB FOR TH103577)

2шт.

15

AT264354

O-RING

(SUB FOR TH103574)

1шт.

16

CH10568

PACKING

(SUB FOR TH102668)

1шт.

17

4027963

BACK-UP RING

(SUB FOR TH103579)

1шт.

18

4182481

RELIEF VALVE

(SUB FOR TH103573)

1шт.

19

0225004

BOLT

(SUB FOR TH103583)

4шт.

20

AT264347

O-RING

(SUB FOR TH100136, 4506428)

2шт.

21

4182480

VALVE

(SUB FOR TH103542)

1шт.
