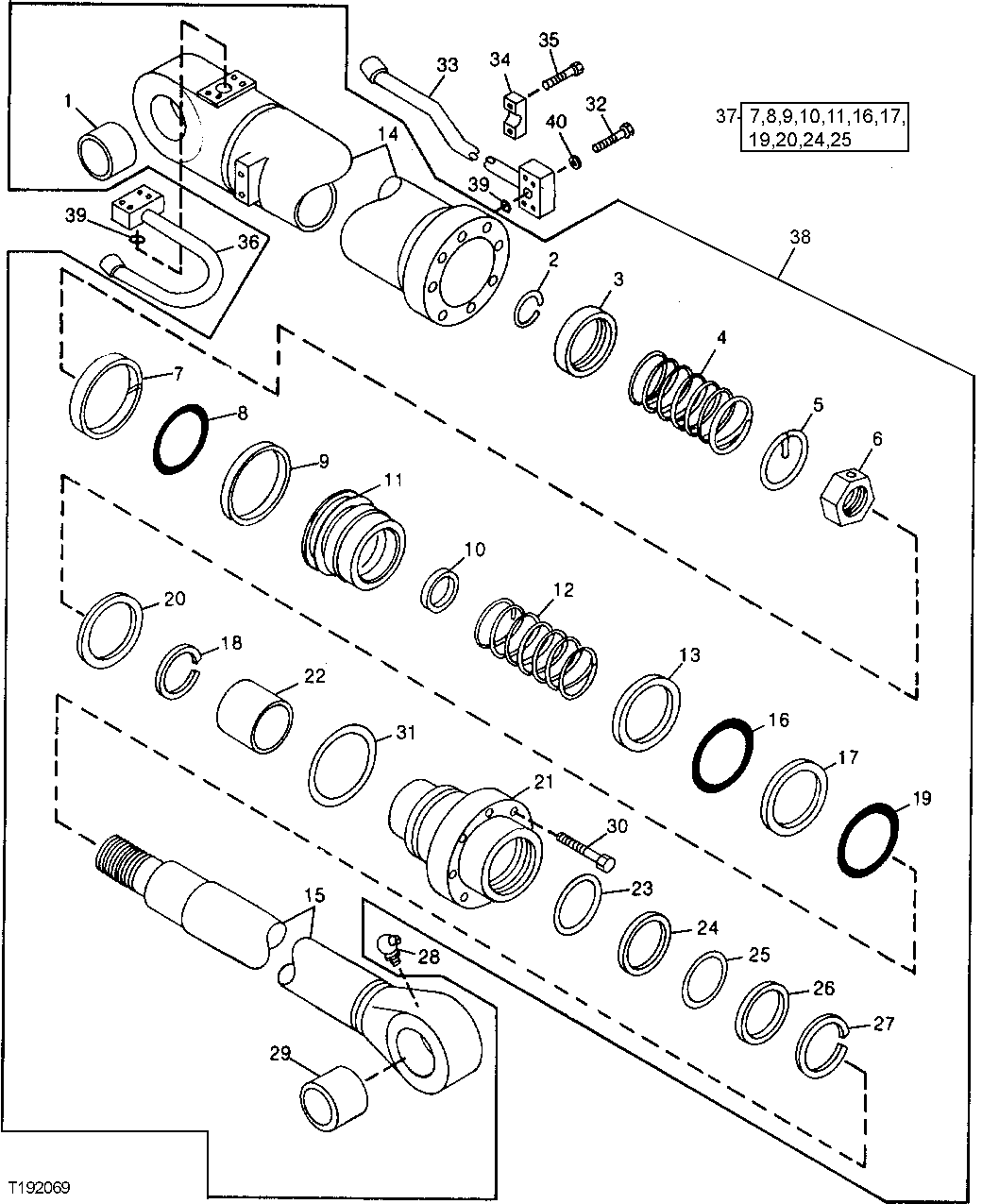

Запчасти John Deere 90 14 - ARM CYLINDER 3360 - EXCAVATOR 33

1

4657238

BUSHING

(SUB FOR TH100073 OR 0207603)

1шт.

2

0207811

SNAP RING

(SUB FOR TH100116)

1шт.

3

0207813

WASHER

(SUB FOR TH100118)

1шт.

4

0207815

SPRING

(SUB FOR TH100120)

1шт.

5

0207810

SNAP RING

(SUB FOR TH100115)

1шт.

6

0207809

NUT

(SUB FOR TH100114)

1шт.

7

AT264336

WEAR RING

(SUB FOR TH100111, 0207806)

2шт.

8

AT264337

SEAL

(SUB FOR TH100112, 0207807)

1шт.

9

AT264338

O-RING

(SUB FOR TH100113, 0207808)

1шт.

10

CH15107

PACKING

(SUB FOR TH100110)

1шт.

11

0207834

PISTON

(SUB FOR TH103531) (SUB FOR TH100109, ALSO ORDER (2) TH103532)

1шт.

AT264353

RING

(SUB FOR TH103532, 0207838)

2шт.

12

0207814

SPRING

(SUB FOR TH100119)

1шт.

13

0207812

RETAINER

(SUB FOR TH100117)

1шт.

14

HYDRAULIC CYLINDER BARREL

( TH100106 NO LONGER AVAILABLE FOR SERVICE - ORDER COMPLETE CYLINDER ASSEMBLY)

1шт.

15

3022050

ROD

(SUB FOR TH100108 AND 0207804)

1шт.

16

AT264342

O-RING

(SUB FOR TH100125)

1шт.

17

AT264343

BACK-UP RING

(SUB FOR TH100126, 0207818)

1шт.

18

0207820

SNAP RING

(SUB FOR TH100128)

1шт.

19

AT264340

O-RING

(SUB FOR TH100123, 992446)

1шт.

20

AT264341

BACK-UP RING

(SUB FOR TH100124, 0207817)

1шт.

21

0207816

HYDR. CYLINDER ROD GUIDE

(SUB FOR TH100121)

1шт.

22

0207819

BUSHING

(SUB FOR TH100127)

1шт.

23

0207822

O-RING

(SUB FOR TH100130)

1шт.

24

AT264344

SEAL

(SUB FOR TH100129, 0207821)

1шт.

25

AT264345

O-RING

(SUB FOR TH100131, 0207823)

1шт.

26

AT264346

SEAL

(SUB FOR TH100132, 0207824)

1шт.

27

0207825

SNAP RING

(SUB FOR TH100133)

1шт.

28

T116334

LUBRICATION FITTING

(SUB FOR TH100107) (SUB FOR TH100075, THIS APPLICATION)

1шт.

29

0207832

BUSHING

(SUB FOR TH100141)

1шт.

30

0207621

SCREW

(SUB FOR TH100093)

12шт.

31

AT264339

O-RING

(SUB FOR TH100122)

1шт.

32

19M8441

SCREW

M10 X 60, (SUB FOR TH100137)

8шт.

33

0207826

TUBE

(SUB FOR TH100134)

1шт.

34

0207829

HALF CLAMP

(SUB FOR TH100138)

3шт.

35

19M7658

CAP SCREW

M10 X 50, (SUB FOR TH100139)

6шт.

36

0207827

TUBE

(SUB FOR TH100135)

1шт.

37

AT264444

SEAL KIT

(SUB FOR TH100142 AND 4184190-P)

1шт.

38

AT264184

HYDRAULIC CYLINDER

(SUB FOR TH100105) (SUB FOR TH105663)

1шт.

39

AT264347

O-RING

(SUB FOR TH100136, 4506428) (BETWEEN TUBE AND CYLINDER BARREL)

2шт.

40

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100140)

14шт.
