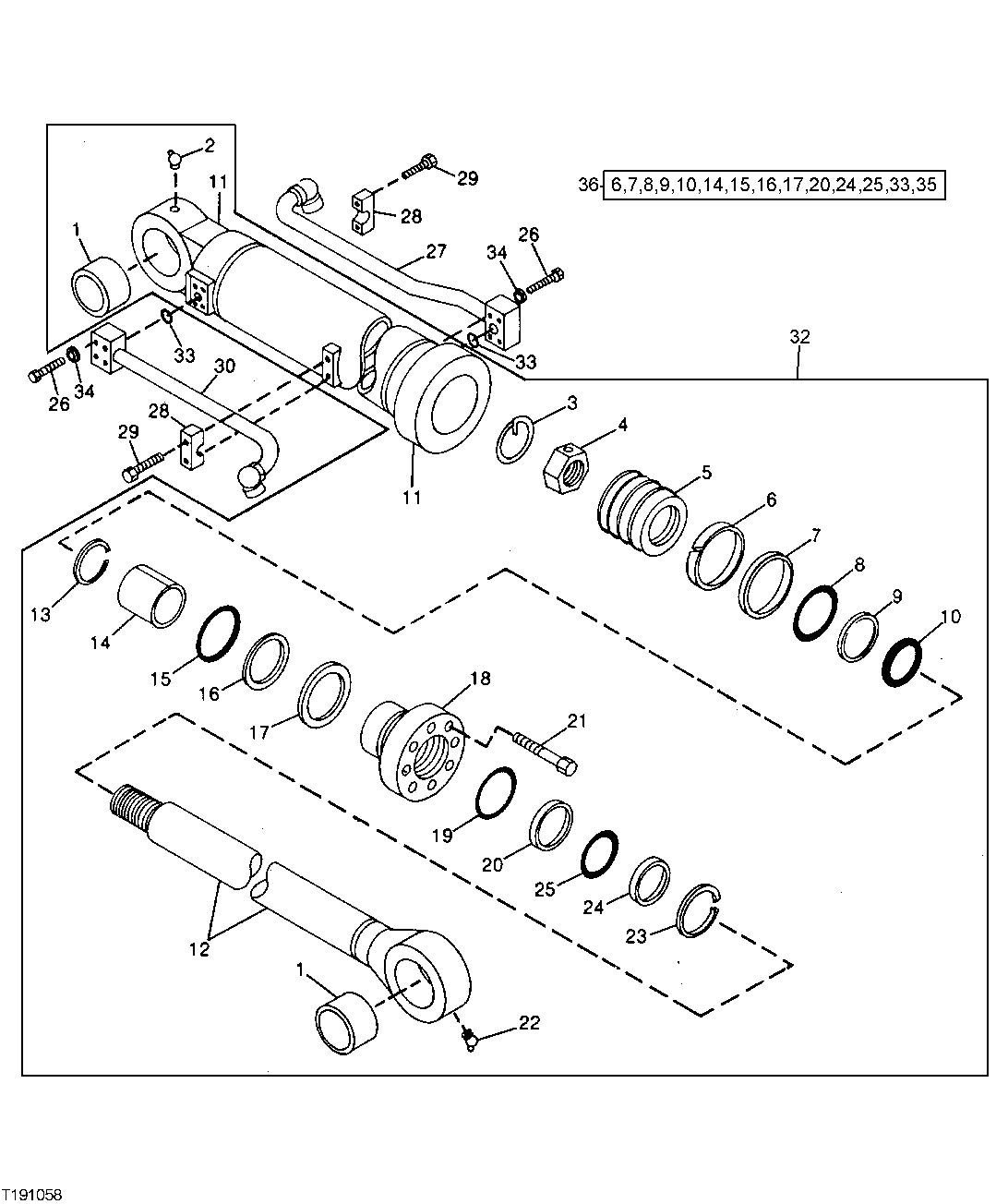

Запчасти John Deere 90 12 - BUCKET CYLINDER 3360 - EXCAVATOR 33
№
Артикул
Название
Примечание
Количество
1
4657238
BUSHING
(SUB FOR TH100073 OR 0207603)
2шт.
2
T116334
LUBRICATION FITTING
(SUB FOR TH100075)
1шт.
3
0208208
SNAP RING
(SUB FOR TH100082)
1шт.
4
0208207
NUT
(SUB FOR TH100081)
1шт.
5
0208221
PISTON
(SUB FOR TH103525)
1шт.
0208222
RING
(SUB FOR TH103526)
2шт.
6
AT264325
WEAR RING
(SUB FOR TH100078, 0208204)
2шт.
7
AT264326
SEAL
(SUB FOR TH100079, 0208205)
1шт.
8
AT264327
O-RING
(SUB FOR TH100080, 0208206)
1шт.
9
AT264335
BACK-UP RING
(SUB FOR TH100102, 0208219)
1шт.
10
AT264334
O-RING
(SUB FOR TH100101)
1шт.
11
HYDRAULIC CYLINDER BARREL
( 0208201 NO LONGER AVAILABLE -LOW VOLUME) (SUB FOR TH100072)
1шт.
12
0208202
ROD
(SUB FOR TH100076)
1шт.
13
0208212
SNAP RING
(SUB FOR TH100087)
1шт.
14
AT264329
BUSHING
(SUB FOR TH100086, 0208211)
1шт.
15
AT264418
O-RING
(SUB FOR 4367664)
1шт.
16
AT264328
BACK-UP RING
(SUB FOR TH100085, 0208210)
1шт.
17
AT264319
O-RING
(SUB FOR TH100084, T110447)
1шт.
18
HYDR. CYLINDER ROD GUIDE
( 0208209 NO LONGER AVAILABLE) (SUB FOR TH100083)
1шт.
19
0208214
O-RING
(SUB FOR TH100089)
1шт.
20
AT264330
SEAL
(SUB FOR TH100088, 0208213)
1шт.
21
0207621
SCREW
(SUB FOR TH100093)
8шт.
22
TH100074
LUBRICATION FITTING
1шт.
23
0207615
SNAP RING
(SUB FOR TH100092)
1шт.
24
AT264332
SEAL
(SUB FOR TH100091, 0208216)
1шт.
25
AT264331
O-RING
(SUB FOR TH100090, 0208215)
1шт.
26
19M8711
SCREW
(SUB FOR TH100097)
8шт.
27
0208217
OIL LINE
(SUB FOR TH100094)
1шт.
28
0207630
HALF CLAMP
(SUB FOR TH100098)
2шт.
29
19M8261
CAP SCREW
M8 X 40, (SUB FOR TH100099)
4шт.
30
0208218
OIL LINE
(SUB FOR TH100095)
1шт.
32
AT182465
HYDRAULIC CYLINDER
(REMANFACTURED) (SUB FOR TH105664, TH100071)
1шт.
33
AT264333
O-RING
(SUB FOR TH100096) (BETWEEN TUBE AND CYLINDER BARREL)
2шт.
34
12M7056
LOCK WASHER
8 MM (0.315") (SUB FOR TH100100) (SUB FOR 12M7065)
12шт.
35
AT264388
RING
(NOT ILLUSTRATED)
1шт.
36
AT264443
SEAL KIT
1шт.
Выбрано товаров: 36
