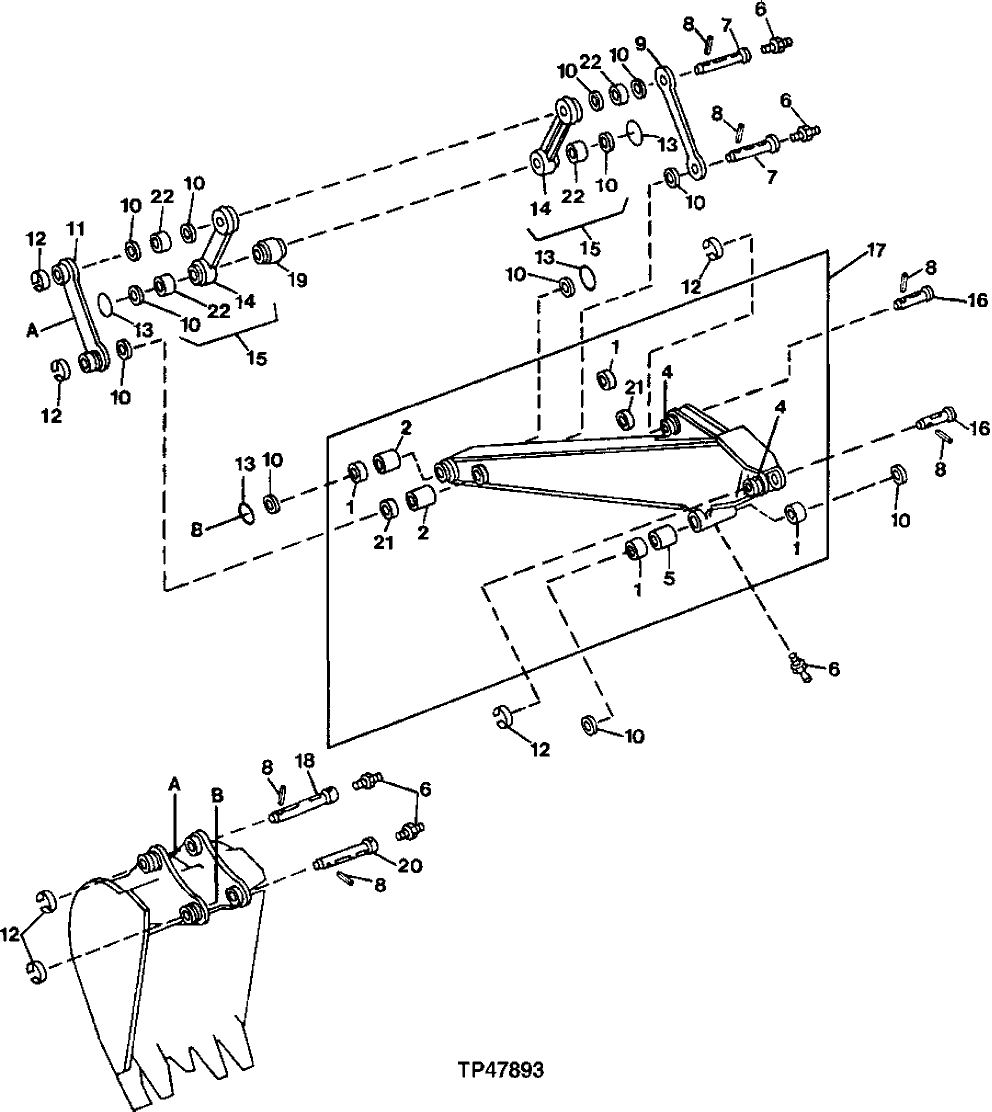

Запчасти John Deere 90 4 - ARM 3340 - EXCAVATOR 33

1

AT122209

BUSHING

(SUB FOR TH100373, TH100371 OR TH108931) GUIDE LINKS, BOOM PIVOT AND BUCKET PIVOTS

4шт.

2

4124575

SPACER

(SUB FOR TH100369)

2шт.

4

4124573

BUSHING

(SUB FOR TH100368) (USE WITH STANDARD ARM)

2шт.

4124573

BUSHING

(SUB FOR TH100368) (USE WITH LONG ARM)

3шт.

5

4128972

SPACER

(SUB FOR TH100370)

1шт.

6

TH100074

LUBRICATION FITTING

5шт.

7

TH100378

PIN FASTENER

2шт.

8

4065689

PIN FASTENER

(SUB FOR TH100625)

6шт.

9

3022291

LINK

(SUB FOR TH100375)

1шт.

10

TH100374

SEAL

12шт.

11

9718201

LINK

(SUB FOR TH100383)

1шт.

12

4065688

RETAINER

(SUB FOR TH100624)

6шт.

13

TH100380

O-RING

4шт.

14

LINK

(SUB TH100381)

2шт.

15

9057032

LINK

(SUB FOR TH100381)

2шт.

16

3027760

PIN FASTENER

(SUB FOR 3022288) (ALSO ORDER (2) TH100434) (SUB FOR TH101382)

2шт.

94-2011

FITTING PLUG

(USE WITH TH101382) (SUB FOR TH100434)

2шт.

17

9041995

ARM

(SUB FOR TH100367) STANDARD

1шт.

9051586

ARM

(SUB FOR TH101378) LONG

1шт.

18

P68886

PIN

(ALSO ORDER TH100074) (SUB FOR TH100379, TH108942)

1шт.

19

4065885

SPACER

(SUB FOR TH100376)

1шт.

20

AT318059

PIN FASTENER

(SUB FOR 3084540) (ALSO ORDER TH100074) (SUB FOR TH100384, TH108941)

1шт.

21

AT122209

BUSHING

65 X 80 X 50 MM (2.559" X 3.150" X 1.969")

2шт.

22

4188796

BUSHING

(SUB FOR TH108930)

4шт.
