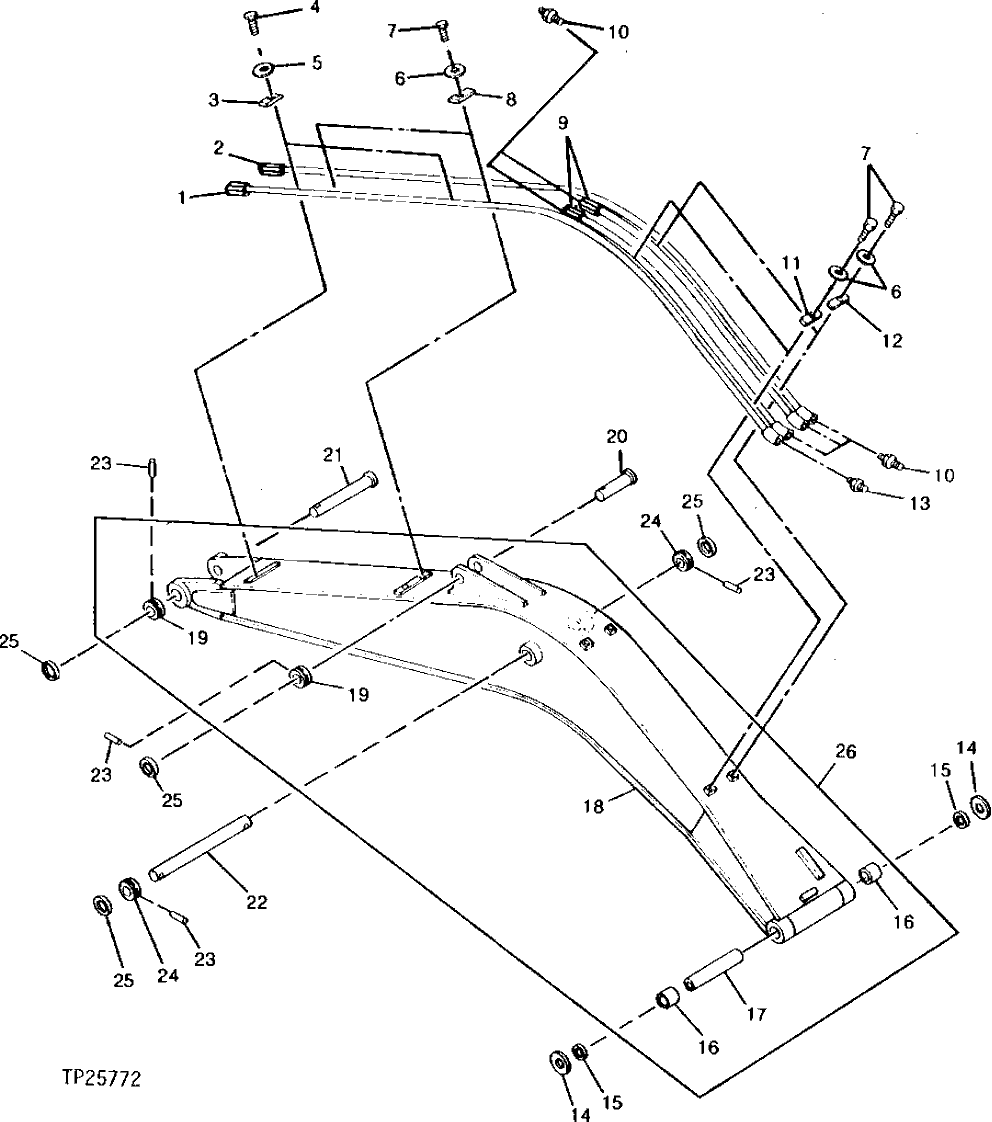

Запчасти John Deere 90 2 - BOOM AND BOOM OIL LINES 3340 - EXCAVATOR 33

1

8028563

OIL LINE

(SUB FOR TH101317)

1шт.

2

8028562

OIL LINE

(SUB FOR TH101316)

1шт.

3

4053594

CLAMP

(SUB FOR TH100970)

2шт.

4

19M7358

CAP SCREW

M10 X 40

2шт.

5

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

2шт.

6

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

6шт.

7

19M7361

CAP SCREW

M12 X 50

6шт.

8

4053595

CLAMP

(SUB FOR TH100947)

2шт.

9

9719723

OIL LINE

(SUB FOR TH101318)

2шт.

10

4154654

ADAPTER FITTING

(SUB FOR TH100942)

5шт.

11

4141806

CLAMP

(SUB FOR TH100968)

2шт.

12

4053596

CLAMP

(SUB FOR TH100948)

2шт.

13

4154653

ADAPTER FITTING

(SUB FOR TH100989)

1шт.

14

4075359

WASHER

(SUB FOR TH101314) 1.0MM

2шт.

4075360

WASHER

(SUB FOR TH101315) 2.0MM

2шт.

15

TH100374

SEAL

2шт.

16

4146089

BUSHING

(SUB FOR TH101311)

2шт.

17

4124574

SPACER

(SUB FOR TH101310)

1шт.

18

EXCAVATOR BOOM

(SUB TH101308)

1шт.

19

4124573

BUSHING

(SUB FOR TH100368)

2шт.

20

3027760

PIN FASTENER

(SUB FOR 3022288) (ALSO ORDER TH100434) (SUB FOR TH101382)

1шт.

94-2011

FITTING PLUG

(USE WITH TH101382) (SUB FOR TH100434)

1шт.

21

TH108925

PIN

(SUB FOR TH101313)

1шт.

22

3022286

PIN FASTENER

(SUB FOR TH101312)

1шт.

23

4065689

PIN FASTENER

(SUB FOR TH100625)

4шт.

24

4124573

BUSHING

(SUB FOR TH100368)

2шт.

25

4065688

RETAINER

(SUB FOR TH100624)

4шт.

26

9041992

EXCAVATOR BOOM

(SUB FOR TH101308)

1шт.
