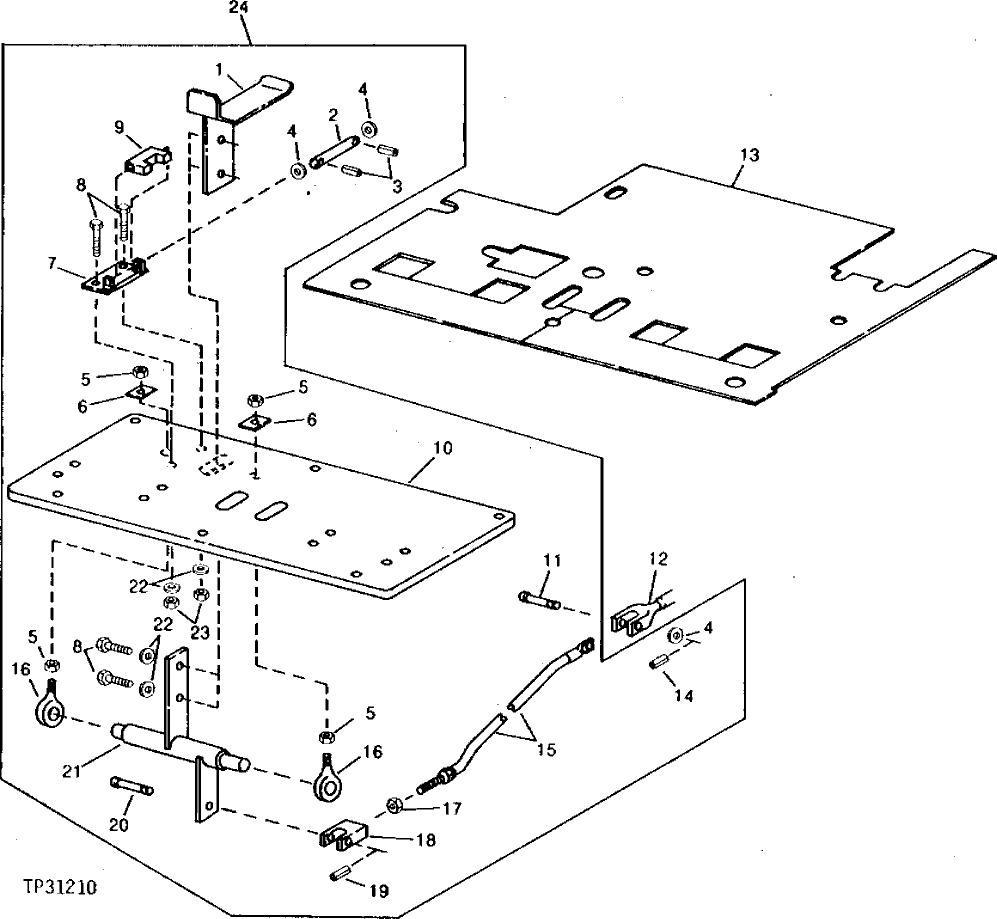

Запчасти John Deere 90 10 - AUXILIARY VALVE CONTROL PEDAL AND LINKAGE 3315 - EXCAVATOR 33

1

9721167

PEDAL

(SUB FOR TH107009)

1шт.

2

4153761

PIN

(SUB FOR TH107011)

1шт.

3

11M7099

COTTER PIN

2 X 12 MM

2шт.

4

24M7055

WASHER

8.400 X 16 X 1.600 MM, (SUB FOR TH100280)

3шт.

5

14M7276

NUT

M16, (SUB FOR TH101725)

4шт.

6

E53005

STRAP

(SUB FOR TH107007)

2шт.

7

9727017

BRACKET

(SUB FOR TH107012)

1шт.

8

19M8761

SCREW

M10 X 22, (SUB FOR TH100456)

4шт.

9

4153762

PLATE

(SUB FOR TH107010)

1шт.

10

BRACKET

( TH100302 NO LONGER AVAILABLE)

1шт.

11

4162104

PIN FASTENER

(SUB FOR TH101638)

1шт.

12

YOKE

VALVE SPOOL YOKE

1шт.

13

MAT

(NOT AVAILABLE FOR SERVICE)

1шт.

14

11M7058

COTTER PIN

2 X 25 MM, (SUB FOR 11M7009)

1шт.

15

9727059

ROD

(SUB FOR TH107006)

1шт.

16

4086698

TIE ROD END

(SUB FOR TH103837)

2шт.

17

M501210

NUT

(SUB FOR TH100312)

1шт.

18

M981266

YOKE

(SUB FOR TH100308)

1шт.

19

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR TH100310) (SUB FOR 11M7021)

1шт.

20

45M7084

PIN FASTENER

12 X 35 MM, (SUB FOR TH100309)

1шт.

21

9727060

LEVER

(SUB FOR TH107008)

1шт.

22

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

23

14M7274

NUT

M10

2шт.

24

AT107223

KIT

1шт.
