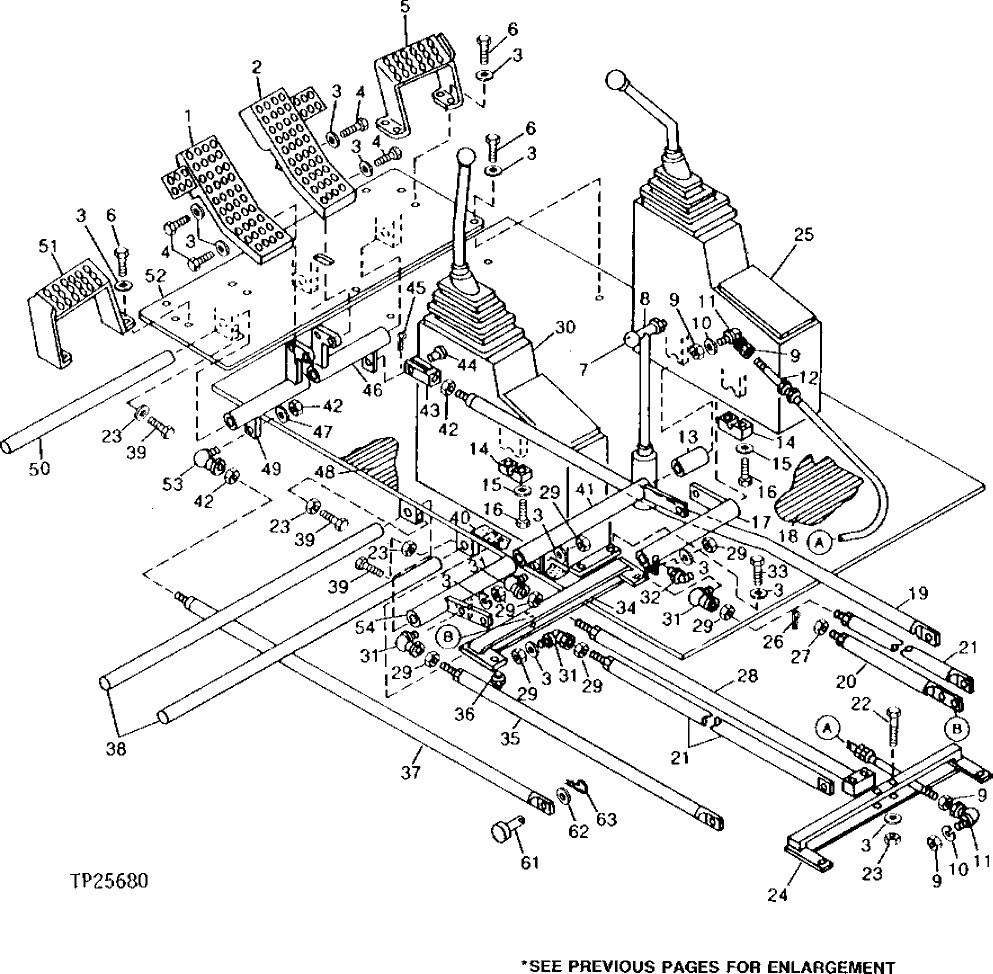

Запчасти John Deere 90 6 - FOOT AND HAND CONTROL LINKAGE 3315 - EXCAVATOR 33

1

2019420

PEDAL

(SUB FOR TH101226)

1шт.

2

TH101225

PEDAL

1шт.

3

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

32шт.

4

19M7402

CAP SCREW

M10 X 25

8шт.

5

2019421

FOOTREST

(SUB FOR TH101227)

1шт.

6

19M7938

CAP SCREW

M10 X 20

14шт.

7

4143169

KNOB

(SUB FOR TH100268)

1шт.

8

9717527

LOCK

(SUB FOR TH100323) SWING LOCK PIN

1шт.

9

14M7297

NUT

M5

4шт.

10

12M7064

LOCK WASHER

5 MM, (SUB FOR TH100519)

2шт.

11

4056016

BALL JOINT

(SUB FOR TH100325)

2шт.

12

4065075

PUSH PULL CABLE

(SUB FOR TH100324)

1шт.

13

4146727

BUSHING

(SUB FOR TH100298)

1шт.

14

4116377

HALF CLAMP

(SUB FOR TH100300)

4шт.

15

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

8шт.

16

19M7922

CAP SCREW

M8 X 40, (SUB FOR 19M7301)

8шт.

17

9051111

LEVER

(SUB FOR TH100296)

1шт.

4063692

NEEDLE BEARING

(SUB FOR TH103818) (INSIDE LEVER ENDS)

2шт.

18

1007422

MAT

(SUB FOR TH100328)

1шт.

19

9718283

ROD

(SUB FOR TH100306)

1шт.

20

9718724

ROD

(SUB FOR TH101222)

1шт.

21

9718287

ROD

(SUB FOR TH100315)

2шт.

22

19M8499

CAP SCREW

M10 X 60

2шт.

23

14M7274

NUT

M10

6шт.

24

8025229

LINK

(SUB FOR TH100316)

1шт.

25

6005764

CONSOLE

(SUB FOR TH100556) RIGHT

1шт.
