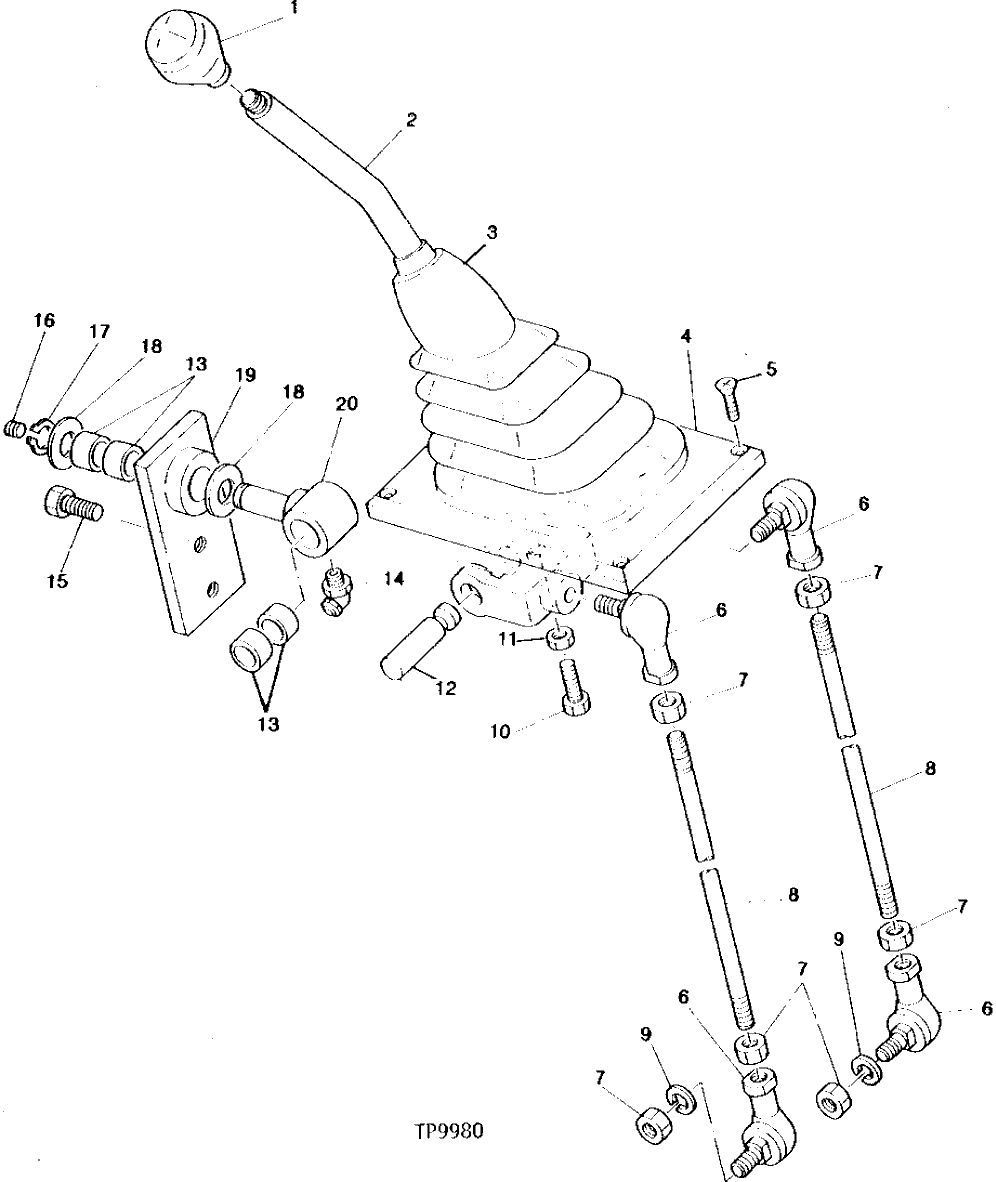

Запчасти John Deere 90 4 - RIGHT-HAND CONSOLE CONTROL LEVER 3315 - EXCAVATOR 33

1

4117704

KNOB

(SUB FOR TH100591)

1шт.

2

8026355

LEVER

(SUB FOR TH100291) (INCLUDES PIVOT CASTING)

1шт.

3

2019365

BOOT

(SUB FOR TH100281)

1шт.

4

3026035

BASE

(SUB FOR TH100282)

1шт.

5

21M7326

SCREW

M6 X 20, (SUB FOR TH100573)

4шт.

6

4056019

BALL JOINT

(SUB FOR TH100254)

4шт.

7

14M7444

NUT

M10, (SUB FOR TH100255)

6шт.

8

4116383

ROD

(SUB FOR TH100256)

2шт.

9

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

10

19M7376

CAP SCREW

M8 X 22

1шт.

11

14M7273

NUT

M8

1шт.

12

4086444

PIN FASTENER

(SUB FOR TH100249)

1шт.

13

TH100248

NEEDLE BEARING

4шт.

14

T116334

LUBRICATION FITTING

(SUB FOR TH100075)

1шт.

15

19M7402

CAP SCREW

M10 X 25

2шт.

16

94-2010

FITTING PLUG

(SUB FOR TH100689)

1шт.

17

40M7068

SNAP RING

1шт.

18

24M7053

WASHER

17 X 30 X 3 MM, (SUB FOR TH100520)

2шт.

19

9715423

BOSS

(SUB FOR TH100290)

1шт.

20

3025206

PIVOT

(SUB FOR TH100247)

1шт.
