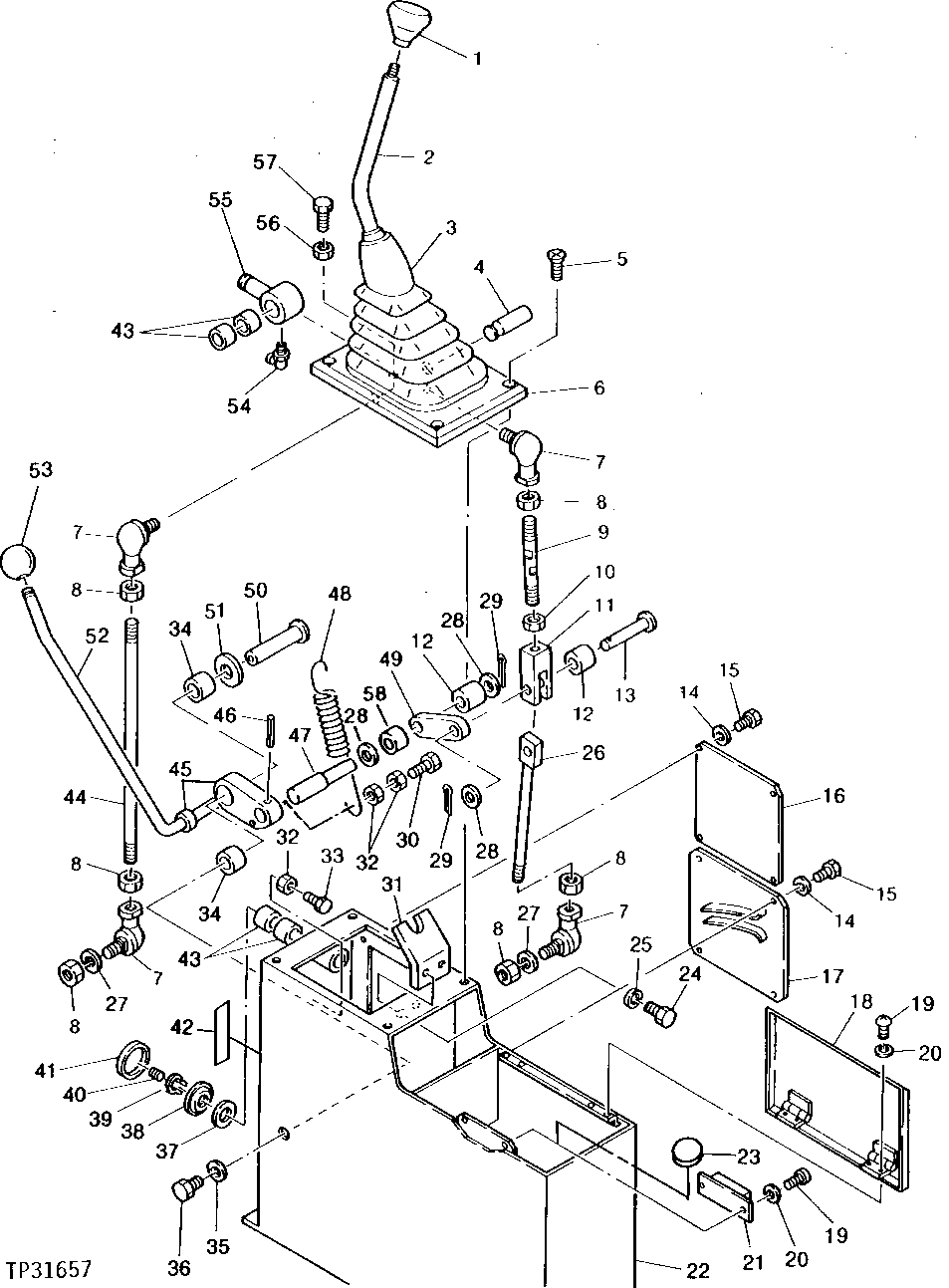

Запчасти John Deere 90 2 - LEFT-HAND CONSOLE CONTROL LEVERS AND LINKAGE 3315 - EXCAVATOR 33

1

4269020

KNOB

(SUB FOR TH100252) (SUB FOR TH108073) (INCLUDES HORN SWITCH)

1шт.

2

8026356

LEVER

(SUB FOR TH100251)

1шт.

3

2019365

BOOT

(SUB FOR TH100281)

1шт.

4

4086444

PIN FASTENER

(SUB FOR TH100249)

1шт.

5

21M7326

SCREW

M6 X 20, (SUB FOR TH100573)

4шт.

6

3026035

BASE

(SUB FOR TH100282)

1шт.

7

4056019

BALL JOINT

(SUB FOR TH100254)

4шт.

8

14M7444

NUT

M10, (SUB FOR TH100255)

6шт.

9

4128527

SHAFT

(SUB FOR TH100257)

1шт.

10

M500010

NUT

(SUB FOR TH100688)

1шт.

11

M991040

YOKE

(SUB FOR TH100259)

1шт.

12

4128520

SPACER

(SUB FOR TH100262)

2шт.

13

4128521

PIN FASTENER

(SUB FOR TH100260)

1шт.

14

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100278)

8шт.

15

19M8425

CAP SCREW

M6 X 16

8шт.

16

4144855

COVER

(SUB FOR TH100277)

1шт.

17

8045506

BRACKET

(SUB FOR TH100276) (SUB FOR TH112004)

1шт.

18

8026234

COVER

(SUB FOR TH100283)

1шт.

19

21M7268

SCREW

M3 X 6

6шт.

20

24M7029

SHIM

0.500 MM

6шт.

21

TH100286

MAGNET

1шт.

22

6005855

CONSOLE

(SUB FOR TH100246)

1шт.

23

TH100285

PLUG

1шт.

24

19M7932

CAP SCREW

M8 X 16

2шт.

25

24M7055

WASHER

8.400 X 16 X 1.600 MM, (SUB FOR TH100280)

2шт.

26

9717774

ROD

(SUB FOR TH100258)

1шт.

27

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

2шт.

28

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

3шт.

29

11M7082

COTTER PIN

2.500 X 25 MM, (SUB FOR TH100264) (SUB FOR 11M7081)

2шт.

30

19M7077

CAP SCREW

M6 X 20

1шт.

31

TH100279

BRACKET

1шт.

32

14M7272

NUT

M6

3шт.

33

19M8425

CAP SCREW

M6 X 16

1шт.

34

TH100248

NEEDLE BEARING

2шт.

35

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

1шт.

36

19M8451

CAP SCREW

(SUB FOR TH100270)

1шт.

37

24M7053

WASHER

17 X 30 X 3 MM, (SUB FOR TH100520)

2шт.

38

4149472

RETAINER

(SUB FOR TH100288)

1шт.

39

40M7068

SNAP RING

1шт.

40

94-2010

FITTING PLUG

(SUB FOR TH100689)

1шт.

41

4149471

CAP

(SUB FOR TH100287)

1шт.

42

4149203

LABEL

(SUB FOR TH101569)

1шт.

43

TH100248

NEEDLE BEARING

4шт.

44

4116383

ROD

(SUB FOR TH100256)

1шт.

45

4143123

BUSHING

(SUB FOR TH100271)

1шт.

46

34M7029

SPRING PIN

4 X 30 MM, (SUB FOR TH100266)

1шт.

47

4156653

PIN FASTENER

(SUB FOR TH100265)

1шт.

48

4126714

EXTENSION SPRING

(SUB FOR TH100274)

1шт.

49

4156655

LINK

(SUB FOR TH100261)

1шт.

50

4143124

PIN FASTENER

(SUB FOR TH100269)

1шт.

51

24M7053

WASHER

17 X 30 X 3 MM, (SUB FOR TH100520)

1шт.

52

8038618

LEVER

(SUB FOR TH100267)

1шт.

53

4143169

KNOB

(SUB FOR TH100268)

1шт.

54

T116334

LUBRICATION FITTING

(SUB FOR TH100075)

1шт.

55

3025206

PIVOT

(SUB FOR TH100247)

1шт.

56

14M7273

NUT

M8

1шт.

57

19M7376

CAP SCREW

M8 X 22, (SUB FOR TH100253)

1шт.

58

4156654

BUSHING

(SUB FOR TH101603)

1шт.
