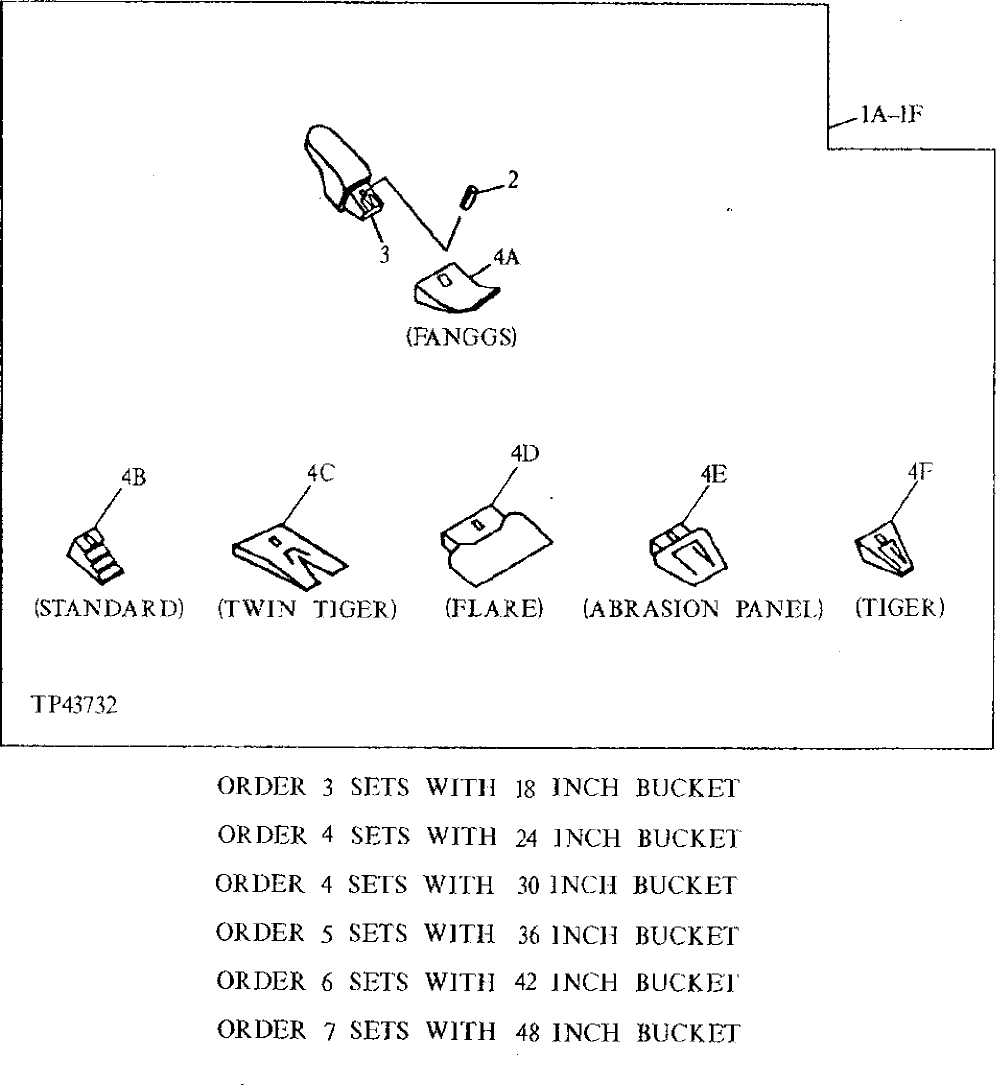

Запчасти John Deere 90 18 - GENERAL PURPOSE BUCKET TOOTH ASSEMBLY 3302 - EXCAVATOR 33

2

TP160L

SPRING PIN

(SUB FOR TP160, THIS APPLICATION) (USE WITH 220 TOOTH ASSEMBLIES)

1шт.

TK290

PIN

(USE WITH 290 TOOTH ASSEMBLIES)

1шт.

EX21LKS

TOOTH RETAINER

(ESCO) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

T9J2308

PIN FASTENER

(CATERPILLAR) (NOT ILLUSTRATED)

1шт.

3

T109X220

BUCKET TOOTH ADAPTER

(USE WITH 200 TOOTH ASSEMBLIES)

1шт.

T127X290

BUCKET TOOTH ADAPTER

(USE WITH 290 TOOTH ASSEMBLIES)

1шт.

EX5849-21

BUCKET TOOTH ADAPTER

(ESCO) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

T3G6304

BUCKET TOOTH ADAPTER

(CATERPILLAR) (30 SERIES) (NOT ILLUSTRATED)

1шт.

4A

TF220

TOOTH

(ALSO ORDER TP160L) (FANGGS 220)

1шт.

TF290

TOOTH

(FANGGS 290)

1шт.

4B

TX220

TOOTH

(ALSO ORDER TP160L) (STANDARD 220)

1шт.

TX290

TOOTH

(STANDARD 290)

1шт.

4C

TX220WT

TOOTH

(ALSO ORDER TP160L) (TWIN TIGER 220)

1шт.

TX290WT

TOOTH

(TWIN TIGER 290)

1шт.

4D

TX220F

TOOTH

(ALSO ORDER TP160L)

1шт.

4E

TX220AP

TOOTH

(ALSO ORDER TP160L)

1шт.

4F

TT220

TOOTH

(ALSO ORDER TP160L) (TIGER 220)

1шт.

TT290

TOOTH

(TIGER 290)

1шт.

4G

EX21SYL

TOOTH

(ESCO STANDARD) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4H

EX21TVIP

TOOTH

(ESCO TWIN TIGER) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4I

EX21S5F

TOOTH

(ESCO FLARE) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4J

EX21VIP

TOOTH

(ESCO TIGER) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4K

TF1U3302D

TOOTH

(CATERPILLAR REPLACEMENT FANGGS) (30 SERIES DIGGER) (NOT ILLUSTRATED)

1шт.

4L

T1U3302

TOOTH

(CATERPILLAR REPLACEMENT STANDARD LONG) (30 SERIES) (NOT ILLUSTRATED)

1шт.

4M

TX1U3302WT

TOOTH

(CATERPILLAR REPLACEMENT TWIN TIGER) (NOT ILLUSTRATED)

1шт.

4N

TT1U3302

TOOTH

(CATERPILLAR REPLACEMENT TIGER) (NOT ILLUSTRATED)

1шт.

5

T3G9609

WASHER

(CATERPILLAR REPLACEMENT) (NOT ILLUSTRATED)

1шт.
