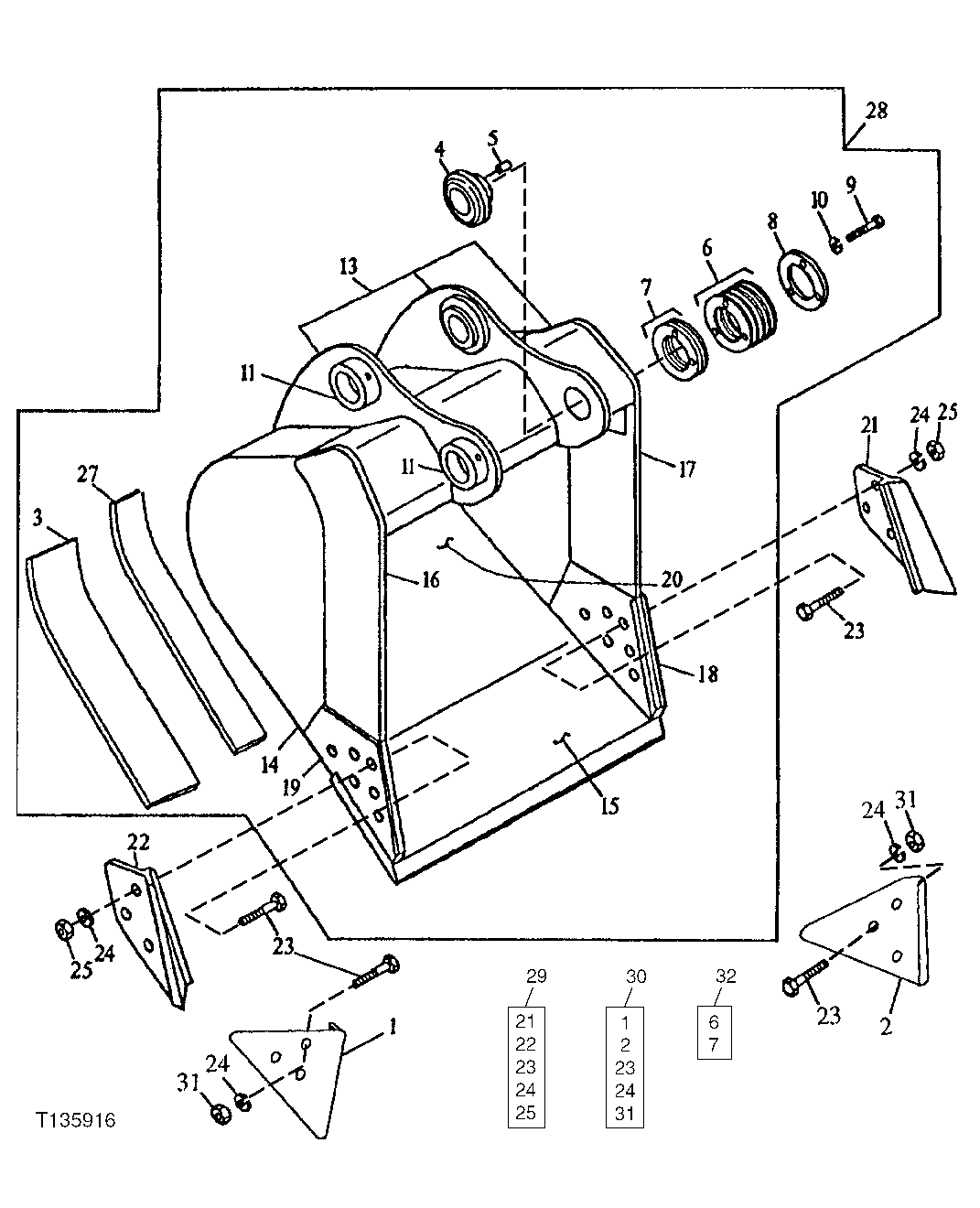

Запчасти John Deere 90 10 - GENERAL PURPOSE BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES) 3302 - EXCAVATOR 33

1

SHROUD

(B) (RT. EDGE PROTECTOR)

1шт.

2

SHROUD

(B) (LT. EDGE PROTECTOR)

1шт.

3

306618

BAR

(OUTER WEAR)

2шт.

4

3028363

BUSHING

(SUB FOR TH100346)

1шт.

5

4179109

PIN

(SUB FOR TH103619)

1шт.

6

SOLID SHIM

(C)

7шт.

7

SHIM

(C)

3шт.

8

TH100347

WASHER

1шт.

9

19M7404

CAP SCREW

M14 X 40

3шт.

10

12H317

LOCK WASHER

9/16"

3шт.

11

TH108649

BUSHING

2шт.

13

C607884

PIVOT

(D) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

607048

PLATE

(D) (RIGHT AND LEFT SIDE)

2шт.

15

AT131081

CUTTING EDGE

(CUT TO LENGTH) (72 INCH LENGTH)

1шт.

16

304954

VERTICAL CUTTER

(D) (UPPER RIGHT SIDE CUTTER)

1шт.

17

304955

VERTICAL CUTTER

(D) (UPPER LEFT SIDE CUTTER)

1шт.

18

304953

VERTICAL CUTTER

(D) (LEFT SIDE CUTTER INSERT)

1шт.

19

304952

VERTICAL CUTTER

(D) (RIGHT SIDE CUTTER INSERT)

1шт.

20

604664

MOLDBOARD

(D) (18 INCH BUCKET)

1шт.

604667

MOLDBOARD

(D) (24 INCH BUCKET)

1шт.

604669

MOLDBOARD

(D) (30 INCH BUCKET)

1шт.

604670

MOLDBOARD

(D) (36 INCH BUCKET)

1шт.

604671

MOLDBOARD

(D) (42 INCH BUCKET)

1шт.

604672

MOLDBOARD

(D) (48 INCH BUCKET)

1шт.

21

CUTTING EDGE

(A) (LT. HAND SIDE CUTTER)

1шт.

22

CUTTING EDGE

(A) (RT. HAND SIDE CUTTER)

1шт.

23

09H1770

BOLT

(A) (B) 7/8" X 2-1/2"

6шт.

24

12H245

LOCK WASHER

(A) (B) 7/8"

6шт.

25

14H1077

NUT

(A) 7/8"

6шт.

27

304966

BAR

(D) (INNER WEAR)

1шт.

28

AT163507

EXCAVATOR BUCKET

WHOLEGOODS (WHOLE GOODS) (SUB FOR AT131006 OR AT131126) (18 INCH - .34 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

AT163508

EXCAVATOR BUCKET

WHOLEGOODS (WHOLE GOODS) (SUB FOR AT131007 OR AT131127) (24 INCH - .50 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

AT163509

EXCAVATOR BUCKET

WHOLEGOODS (WHOLE GOODS) (SUB FOR AT131008 OR AT131128) (30 INCH - .64 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

AT163510

EXCAVATOR BUCKET

WHOLEGOODS (WHOLE GOODS) (SUB FOR AT131009 OR AT131129) (36 INCH - .78 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

AT163512

EXCAVATOR BUCKET

WHOLEGOODS (WHOLE GOODS) (SUB FOR AT131010 OR AT131130) (42 INCH - .92 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

AT163514

EXCAVATOR BUCKET

WHOLEGOODS (WHOLE GOODS) (SUB FOR AT131011 OR AT131131) (48 INCH - 1.06 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

29

AT131080

KIT

WHOLEGOODS (SIDE CUTTER) (WHOLE GOODS) (INCLUDES PARTS MARKED (A))

1шт.

30

AT167874

KIT

WHOLEGOODS (EDGE PROTECTOR) (WHOLE GOODS) (INCLUDES PARTS MARKED (B))

1шт.

31

14H1044

NUT

(B) 22.225 MM (7/8")

6шт.

32

AT146242

KIT

WHOLEGOODS (SHIM) (WHOLE GOODS) (INCLUDES PARTS MARKED (C))

1шт.
