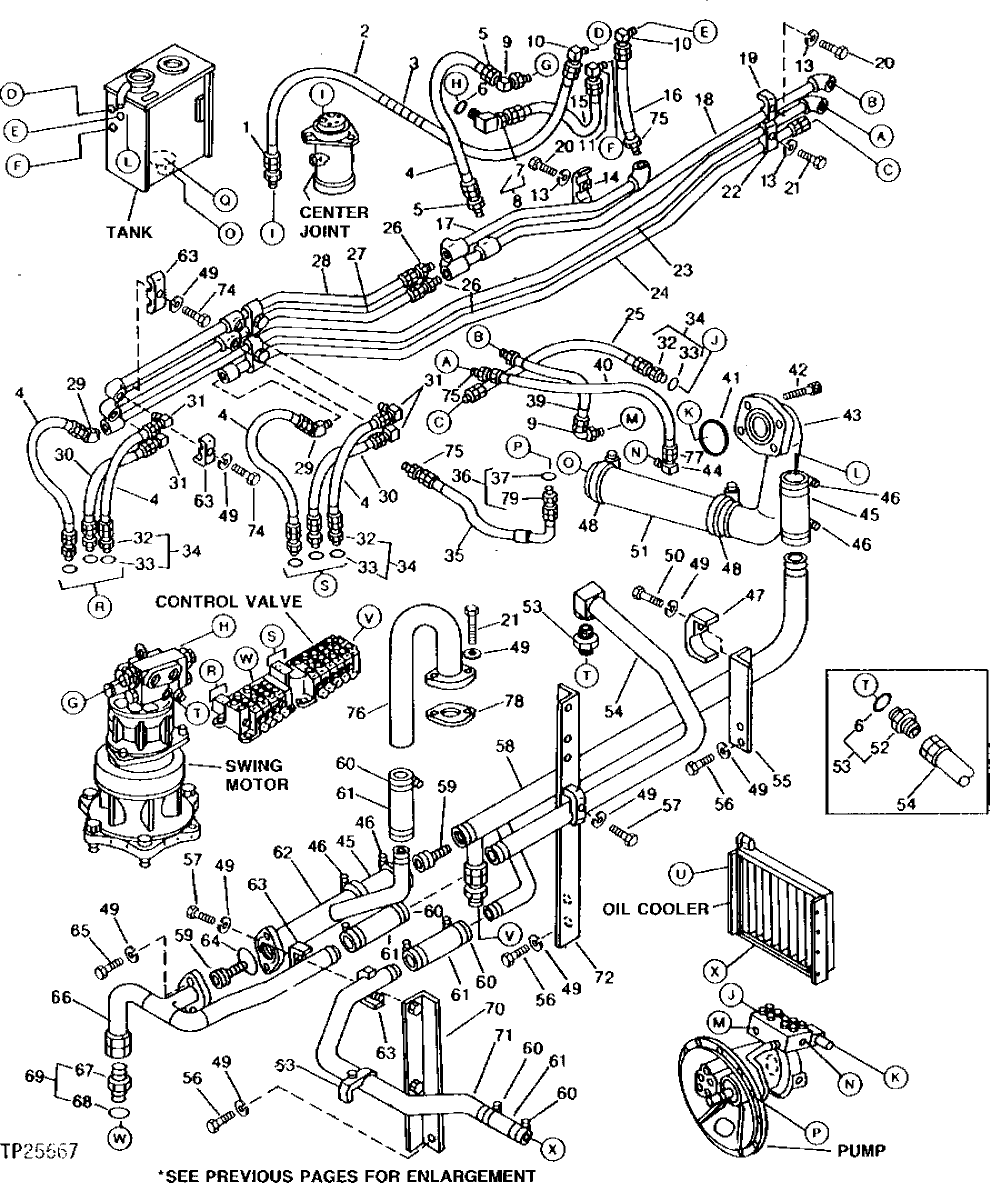

Запчасти John Deere 90 28 - OIL COOLER PIPING 2160 - MAIN HYDRAULIC SYSTEM 21

1

T115957

ADAPTER FITTING

(SUB FOR TH101034)

1шт.

2

AT46299

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH101033)

1шт.

3

HOSE GUARD

(MAKE FROM AT138222 BULK MATERIAL, CUT TO LENGTH)

1шт.

4

AR101376

HYDRAULIC HOSE

(SUB FOR TH101040)

5шт.

5

X0103-4-4

ADAPTER FITTING

(SUB FOR TH100963)

2шт.

6

U12547

O-RING

1шт.

7

ADAPTER FITTING

(SUB TH101039)

1шт.

8

4154658

ELBOW FITTING

(SUB FOR TH101037, THIS APPLICATION) (SUB FOR TH101039)

1шт.

9

4154670

ELBOW FITTING

(SUB FOR TH100951)

2шт.

10

T115889

ELBOW FITTING

(SUB FOR TH101035)

2шт.

11

4154658

ELBOW FITTING

(SUB FOR TH101039)

1шт.

13

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

9шт.

14

4053593

CLAMP

(SUB FOR TH100969)

1шт.

15

TH101005

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH101036 OR TH103550, THIS APPLICATION)

1шт.

16

AR50603

HYDRAULIC HOSE

(SUB FOR TH101051)

1шт.

17

9717415

TUBE

(SUB FOR TH101050)

1шт.

M800462

PLUG

(SUB FOR TH101049) (NOT ILLUSTRATED)

2шт.

18

8025829

OIL LINE

(SUB FOR TH101046)

1шт.

19

4138227

CLAMP

(SUB FOR TH101062)

2шт.

20

19M7572

CAP SCREW

M10 X 45

3шт.

21

19M7550

CAP SCREW

M10 X 35

6шт.

22

U40447

CLAMP

(SUB FOR TH101063, THIS APPLICATION)

6шт.

23

7012455

TUBE

(SUB FOR TH101054)

1шт.

24

7013911

OIL LINE

(SUB FOR TH101055)

1шт.

25

AR101376

HYDRAULIC HOSE

(SUB FOR TH101057)

1шт.

26

X4F3P4S

ADAPTER FITTING

(SUB FOR TH100362 OR 94-1301)

2шт.

27

9717412

OIL LINE

(SUB FOR TH101053)

1шт.

28

9717411

OIL LINE

(SUB FOR TH101052)

1шт.

29

4154655

ELBOW FITTING

(SUB FOR TH101056)

2шт.

30

AR101376

HYDRAULIC HOSE

(SUB FOR TH101057)

2шт.

31

4154656

ELBOW FITTING

(SUB FOR TH101588)

4шт.

32

ADAPTER FITTING

(SUB TH108328)

1шт.

33

M800650

PACKING

(SUB FOR TH100716)

1шт.

34

4200465

ADAPTER FITTING

(SUB FOR TH101059) (SUB FOR TH108328)

7шт.

35

AR98204

HYDRAULIC HOSE

(SUB FOR TH101066)

1шт.

36

4200466

ADAPTER FITTING

(SUB FOR TH101064) (SUB FOR TH108320)

1шт.

37

CH11570

O-RING

(SUB FOR TH100049)

1шт.

38

94-1302

ADAPTER FITTING

(SUB FOR TH101302)

1шт.

39

AR98204

HYDRAULIC HOSE

(SUB FOR TH101048)

1шт.
