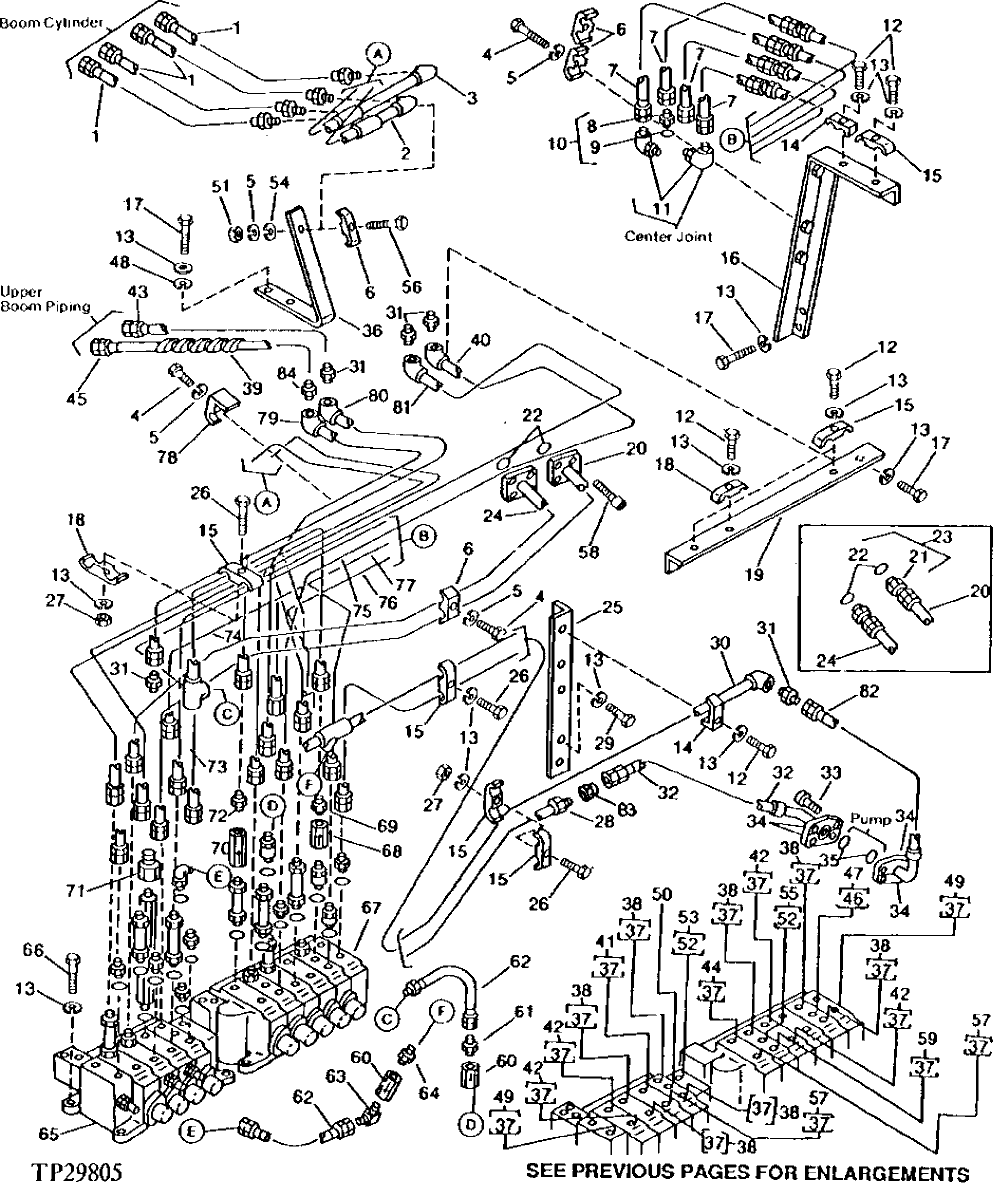

Запчасти John Deere 90 24 - MAIN HYDRAULIC PIPING 2160 - MAIN HYDRAULIC SYSTEM 21

1

TH100988

HYDRAULIC HOSE - FABRICATE

4шт.

2

7011444

OIL LINE

(SUB FOR TH100987)

1шт.

3

7011443

TUBE

(SUB FOR TH100986)

1шт.

4

19M7572

CAP SCREW

M10 X 45

4шт.

5

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

5шт.

6

4053593

CLAMP

(SUB FOR TH100969)

4шт.

7

TH101005

HYDRAULIC HOSE - FABRICATE

4шт.

8

ADAPTER FITTING

(SUB TH101006 OR X8-10F5OX)

1шт.

9

4506418

O-RING

(SUB FOR TH100061) (SUB FOR U46489)

1шт.

10

X8-10F5OX

ADAPTER FITTING

(SUB FOR TH101006)

2шт.

11

4154672

ELBOW FITTING

(SUB FOR TH101008)

2шт.

12

19M7362

CAP SCREW

M12 X 55

7шт.

13

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

25шт.

14

4053595

CLAMP

(SUB FOR TH100947)

2шт.

15

4053596

CLAMP

(SUB FOR TH100948)

7шт.

16

8022500

SUPPORT

(SUB FOR TH100964)

1шт.

17

19M7872

CAP SCREW

M12 X 25

6шт.

18

4141806

CLAMP

(SUB FOR TH100968)

2шт.

19

9715052

SUPPORT

(SUB FOR TH100965)

1шт.

20

8025830

OIL LINE

(SUB FOR TH100997)

1шт.

8034095

OIL TUBE

(SUB FOR TH103547)

1шт.

21

4111534

ADAPTER FITTING

(SUB FOR TH101000) (SUB FOR TH100999)

2шт.

22

U12547

O-RING

2шт.

A811030

O-RING

(SUB FOR TH101300)

2шт.

23

4111534

ADAPTER FITTING

(SUB FOR TH100999)

2шт.

24

8025831

OIL LINE

(SUB FOR TH100998)

1шт.

8034096

OIL TUBE

(SUB FOR TH103548)

1шт.

25

9716794

SUPPORT

(SUB FOR TH100946)

1шт.

26

19M8348

CAP SCREW

M12 X 65

3шт.

27

14M7275

NUT

M12

2шт.

28

8028590

OIL LINE

(SUB FOR TH100937)

1шт.

29

19M7872

CAP SCREW

M12 X 25

2шт.

30

8028589

OIL LINE

(SUB FOR TH100936)

1шт.

31

4154654

ADAPTER FITTING

(SUB FOR TH100942)

4шт.

32

4154650

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH100938)

1шт.

33

19M8447

SCREW

(SUB FOR TH100941)

8шт.

34

T107446

FLANGE FITTING

(SUB FOR TH100940)

4шт.

35

T59014

O-RING

(SUB FOR TH100939)

2шт.

36

4137779

SUPPORT

(SUB FOR TH100966)

1шт.

37

U12547

O-RING

ARшт.

38

4111534

ADAPTER FITTING

(SUB FOR TH100972) (SUB FOR TH101000)

7шт.

39

HOSE GUARD

(MAKE FROM AT138222 BULK MATERIAL, CUT TO LENGTH)

4шт.

40

8028594

OIL LINE

(SUB FOR TH100993)

1шт.

41

4137784

ADAPTER FITTING

(SUB FOR TH100982)

1шт.

42

TH100974

ADAPTER FITTING

4шт.

43

4154647

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH100994)

3шт.

44

4125661

ADAPTER FITTING

(SUB FOR TH100980)

1шт.

45

TH100995

HYDRAULIC HOSE - FABRICATE

1шт.

46

R26906

O-RING

ARшт.

47

4137781

ADAPTER FITTING

(SUB FOR TH100958)

1шт.

48

24M7047

WASHER

13 X 24 X 2.500 MM, (SUB FOR TH100967)

2шт.

49

4042040

ADAPTER FITTING

(SUB FOR TH100943)

2шт.
