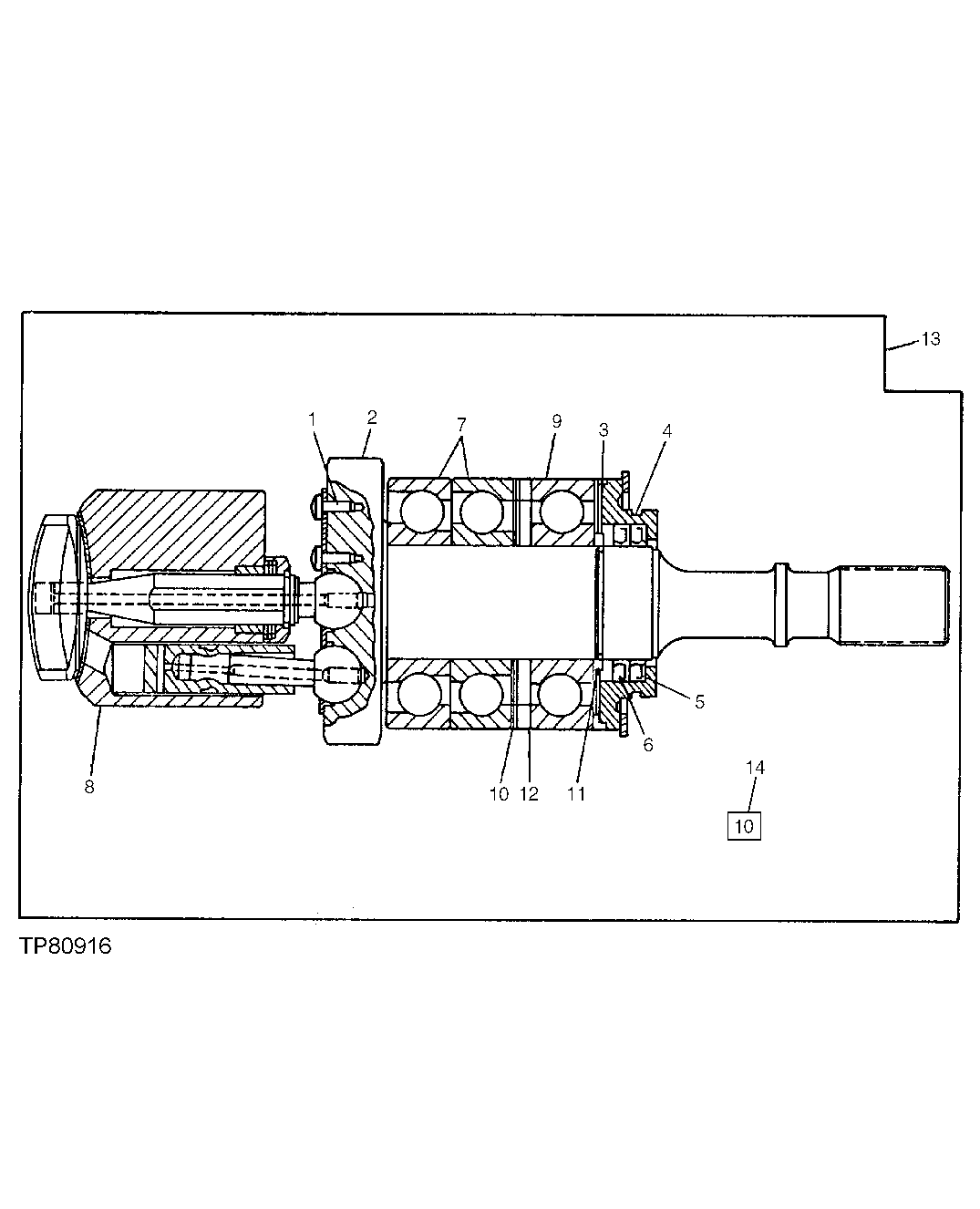

Запчасти John Deere 90 12 - MAIN HYDRAULIC PUMP ROTATING GROUP 2160 - MAIN HYDRAULIC SYSTEM 21

1

0215413

SCREW

(SUB FOR TH101521)

14шт.

2

PINION SHAFT

( TH101509 NO LONGER AVAILABLE)

1шт.

3

U42703

O-RING

(SUB FOR TH101531)

1шт.

4

0331702

GUIDE

(SUB FOR TH101517)

1шт.

5

0215426

SEAL

(SUB FOR TH101534)

1шт.

6

4S00104

SEAL

(SUB FOR TH101530 OR TH110119 OR AT127362)

1шт.

7

TH108162

BEARING

2шт.

8

CYLINDER BLOCK

( TH108164 NO LONGER AVAILABLE)

1шт.

9

JD8520

BALL BEARING

(SUB FOR TH101523)

1шт.

10

SHIM

(A) 1 MM, ( TH101524 NO LONGER AVAILABLE)

1шт.

SHIM

(A) 0.5 MM ( TH101525 NO LONGER AVAILABLE)

1шт.

SHIM

(A) 0.3 MM ( TH101526 NO LONGER AVAILABLE)

1шт.

SHIM

(A) 0.1 MM ( TH101527 NO LONGER AVAILABLE)

1шт.

11

0215421

RETAINER

(SUB FOR TH101529)

1шт.

12

0215427

SHIM

(SUB FOR TH101535)

1шт.

13

4163189

SHAFT

INPUT, (SUB FOR TH101414)

1шт.

14

AT146244

SHIM KIT

(INCLUDES PARTS MARKED (A))

1шт.
