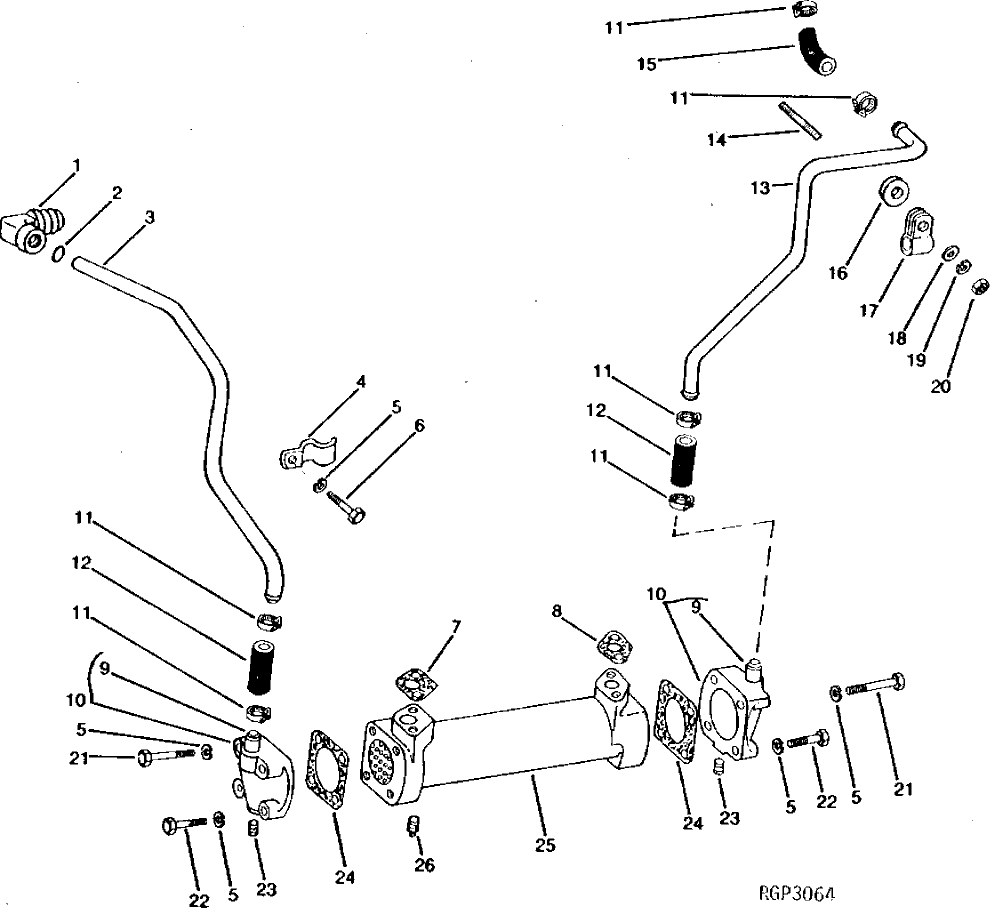

Запчасти John Deere 50LC 56 - Engine Oil Cooler 0419 Engine Oil Cooler 6101AT010 6101AT010

1

R58725

Elbow Fitting

1шт.

2

R47153

O-Ring

1шт.

3

R57514

Oil Tube

1шт.

4

R64437

Clamp

1шт.

5

12H304

Lock Washer

3/8"

NAшт.

6

19H1936

Cap Screw

3/8" X 3/4"

1шт.

7

R520541

Gasket

(SUB FOR R49491)

1шт.

8

R520540

Gasket

(SUB FOR R49490)

1шт.

9

R57503

Tube

2шт.

10

AR69044

Cap

(MARKED R57502)

2шт.

11

TY22467

Clamp

(SUB FOR AR21839)

6шт.

12

R78326

Bulk Hose

24 mm X 67 mm (1 in. X 2-5/8 in.), (SUB FOR R44324) (CTL)

2шт.

13

R68635

Oil Tube

1шт.

14

K3083R

Stud

1шт.

15

R520157

Hose

(SUB FOR R58684)

1шт.

16

R50317

Spacer

1шт.

17

R72659

Clamp

1шт.

18

24H1305

Washer

13/32" X 13/16" X 0.065"

NAшт.

19

12H293

Lock Washer

7/16"

NAшт.

20

14H1059

Nut

7/16"

1шт.

21

19H1801

Cap Screw

3/8" X 2"

4шт.

22

19H3267

Cap Screw

3/8" X 1-5/8"

4шт.

23

R55233

Pipe Plug

2шт.

24

R520552

Gasket

(SUB FOR R57504)

2шт.

25

AR69045

Oil Cooler

1шт.

26

15H604

Pipe Plug

1/4"

1шт.
