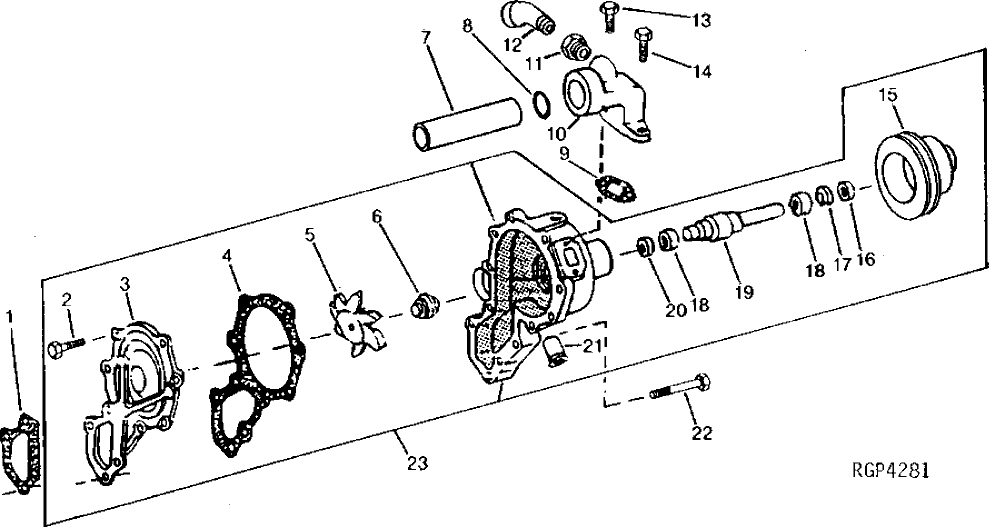

Запчасти John Deere 50LC 53 - Water Pump 0417 Water Pump 6101AT010 6101AT010

1

R520542

Gasket

(SUB FOR R49495)

1шт.

2

19H2127

Cap Screw

5/16" X 7/8"

6шт.

3

R67351

Cover

1шт.

4

R99785

Gasket

1шт.

5

R84180

Impeller

1шт.

6

RE521496

Seal Kit

(SUB FOR RE68318)

1шт.

7

R67358

Tube

1шт.

8

T19687

O-Ring

1шт.

9

R67357

Gasket

1шт.

10

R98247

Elbow Fitting

1шт.

11

15H619

Pipe Bushing

3/8"

1шт.

12

15H221

Elbow Fitting

3/8"

1шт.

13

19H2661

Cap Screw

5/16" X 1-3/8"

1шт.

14

19H2127

Cap Screw

5/16" X 7/8"

1шт.

15

R110445

Pulley

1шт.

16

RE20768

Seal

1шт.

17

F2367R

Snap Ring

1.57 mm (.062 in.)

ARшт.

R62191

Snap Ring

1.70 mm(.067 in.), Red

ARшт.

R62192

Snap Ring

1.96 mm (.077 in.), Green

ARшт.

R62193

Snap Ring

2.20 mm (.087 in.), Blue

ARшт.

R62194

Snap Ring

2.46 mm (.097 in.), White

ARшт.

18

JD10329

Ball Bearing

2шт.

19

R82051

Shaft

1.57 mm (.062 in.)

1шт.

20

RE20767

Seal

1шт.

21

R57503

Tube

1шт.

22

19H3708

Cap Screw

3/8" X 2-5/8"

2шт.

23

RE60371

Water Pump

1шт.

SE500906

Water Pump Reman

(SUB FOR RE60371)

1шт.

R98527

Filter

(WEEP HOLE)

1шт.
