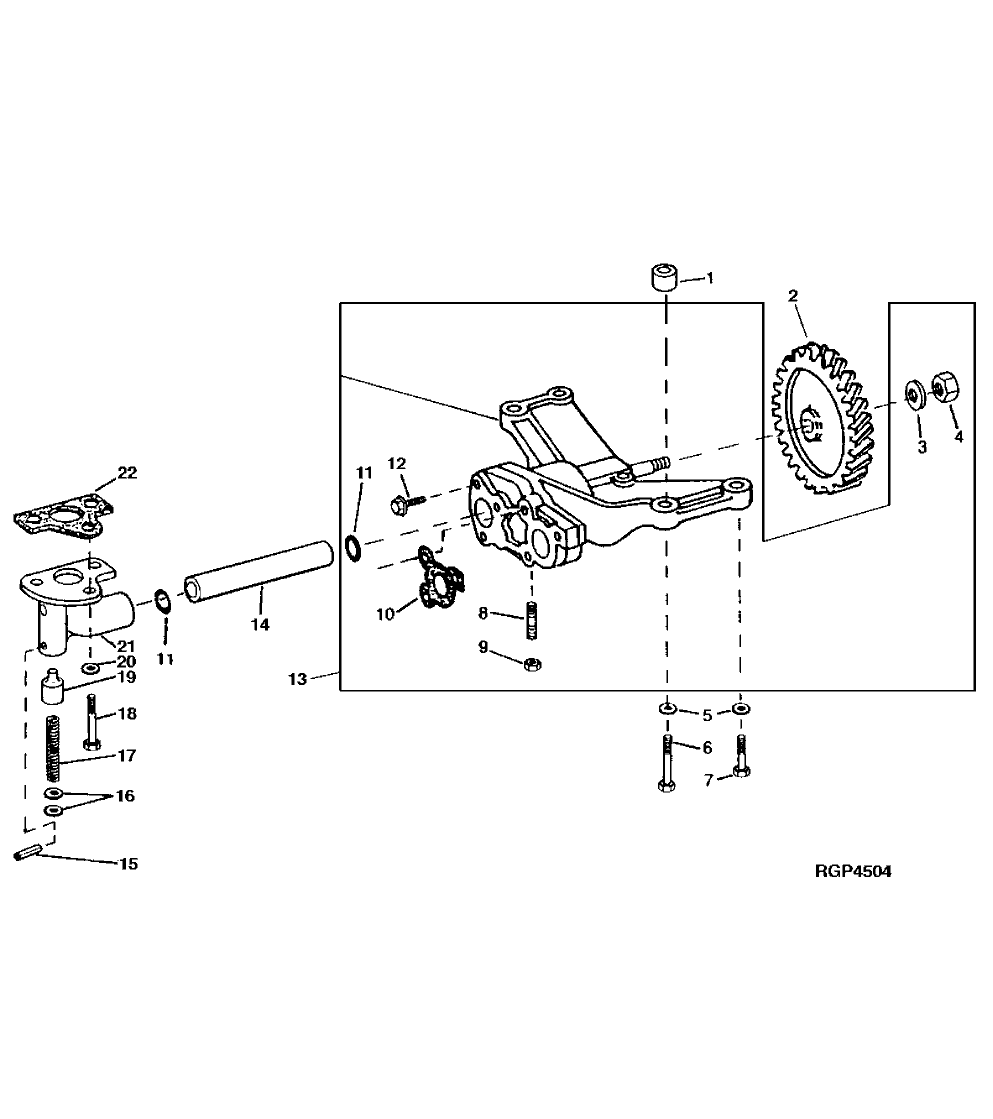

Запчасти John Deere 50LC 31 - Oil Pump 0407 Engine Oiling System 6101AT010 6101AT010

1

R500642

Bushing

(SUB FOR R62930, THIS APPLICATION)

2шт.

2

R62938

Gear

1шт.

3

T21242

Washer

1шт.

4

14H826

Nut

1/2"

1шт.

5

R57696

Washer

4шт.

6

19H2549

Cap Screw

3/8" X 1-7/8"

2шт.

7

19H3219

Cap Screw

3/8" X 1-3/8"

2шт.

8

22H1040

Set Screw

5/16" X 1-1/4"

1шт.

9

14H785

Nut

5/16"

1шт.

10

R100569

Gasket

1шт.

11

R71732

O-Ring

2шт.

12

R104628

Screw

2шт.

R104628

Screw

(OIL PUMP INTAKE TO COVER)

3шт.

13

RE507076

Oil Pump

NLA (MARKED R504028) (ORDER SE500877)

1шт.

SE500877

Oil Pump Reman

(REMAN FOR RE507076)

1шт.

RE60622

Oil Pump

NLA (MARKED R124328 OR R62946) ( SUB FOR RE44118) (ORDER SE501063)

1шт.

SE501063

Oil Pump Reman

(REMAN FOR RE60622 OR RE44118)

1шт.

14

R62947

Tube

1шт.

15

34H283

Spring Pin

3/16" X 1-1/8"

1шт.

16

24H1287

Washer

9/32" X 5/8" X 0.065"

3шт.

17

T31636

Spring

1шт.

18

19H3483

Cap Screw

3/8" X 1-1/8"

3шт.

19

R63532

Valve

1шт.

20

24M7239

Washer

10.700 X 21 X 2.500 mm (SUB FOR M72490)

3шт.

21

R82177

Housing

1шт.

22

R520576

Gasket

(SUB FOR R69418)

1шт.
