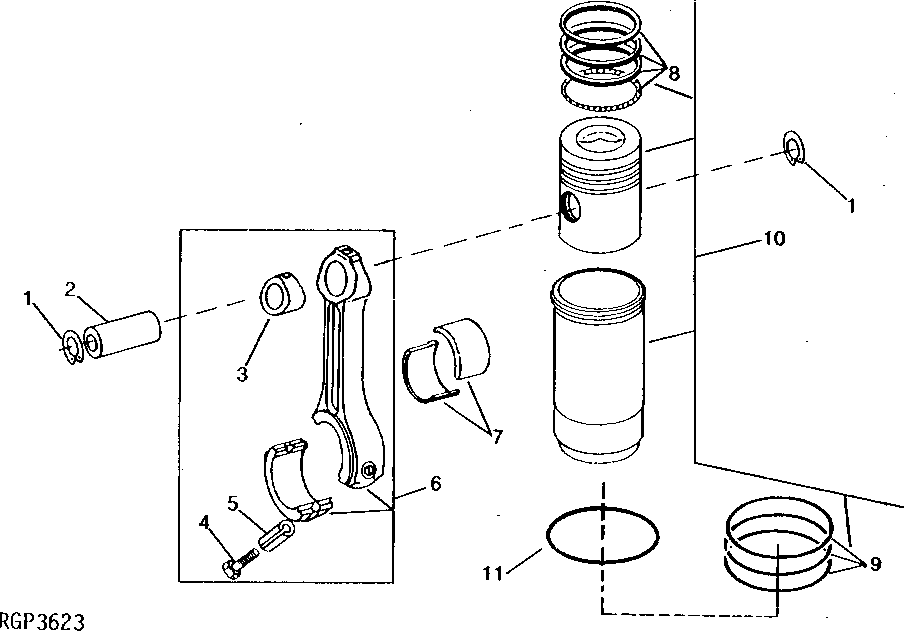

Запчасти John Deere 50LC 25 - Piston, Rings, Liners and Connecting Rods 0403 Connecting Rods And Pistons 6101AT010 6101AT010

1

N51168

Snap Ring

12шт.

2

R64451

Piston Pin

6шт.

3

R69045

Bushing

6шт.

4

R66453

Cap Screw

12шт.

5

R48317

Sleeve

12шт.

6

AR79366

Connecting Rod

NLA (ORDER SE500499)

6шт.

SE500499

Connecting Rod Reman

(REMAN FOR AR79366)

6шт.

7

AR101271

Bearing

(STD) (PKG OF (2) R74671)

ARшт.

AR104129

Bearing

0.05 mm (.002 in.), (U S) (PKG OF (2) R76649)

ARшт.

AR104130

Bearing

0.25 mm (.010 in.), (U S) (PKG OF (2) R76650)

ARшт.

AR104131

Bearing

0.50 mm (.020 in.), (U S) (PKG OF (2) R76651)

ARшт.

AR104132

Bearing

0.75 mm (.030 in.), (U S) (PKG OF (2) R76652)

ARшт.

8

AR82355

Piston Ring Kit

1шт.

9

AR72351

O-Ring Kit

6шт.

10

RE53215

Piston-Liner Kit

(PISTON MARKED) RE57949 AND WHITE DOT) (LINER MARKED E)

6шт.

11

R81276

Shim

0.05 mm

ARшт.

R81277

Shim

0.10 mm

ARшт.
