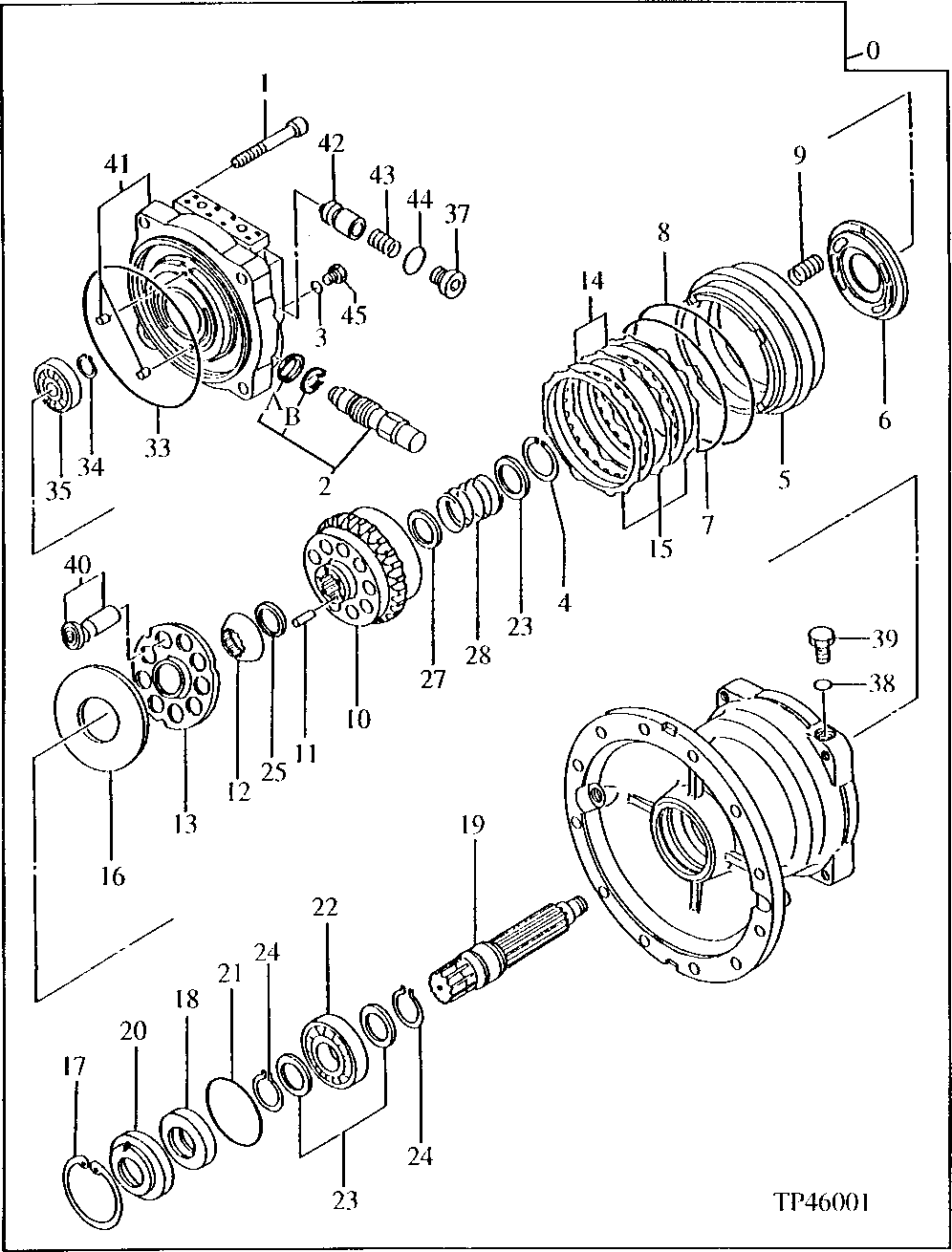

Запчасти John Deere 50LC 327 - Swing Motor 4360 Hydraulics

0

AT217357

Hydraulic Motor

SUB FOR AT201794

1шт.

4334276EX

Hydraulic Motor Reman

REMAN, SUB FOR AT201794 OR AT217357

1шт.

1

0365318

Screw

SUB FOR AT128294

4шт.

2

4278501

Pressure Relief Valve

SUB FOR AT130948

2шт.

2A

A811030

O-Ring

29.400 X 3.100 mm (1.157" X 0.122") SUB FOR TH101300

1шт.

2B

4284569

Back-Up Ring

SUB FOR AT168851 OR 4S01077

1шт.

3

M800650

Packing

2шт.

4

40M7201

Snap Ring

1шт.

5

0365329

Piston

SUB FOR AT128302

1шт.

6

0365315

Plate

SUB FOR AT128291

1шт.

7

0365330

O-Ring

SUB FOR AT128303, 4S00219 OR 4S01092

1шт.

8

0308623

O-Ring

SUB FOR AT170299, 04114 16, TH109953 OR 4S01094

1шт.

9

0365331

Spring

SUB FOR TH112060

16шт.

10

0365307

Cylinder

SUB FOR AT128283

1шт.

11

0365310

Pin

SUB FOR AT128286

12шт.

12

0365308

Bushing

SUB FOR AT128284

1шт.

13

0365313

Pressed Flanged Housing

SUB FOR AT128289

1шт.

14

0365332

Plate

SUB FOR AT128304

2шт.

15

0365333

Plate

SUB FOR AT128305

3шт.

16

0365314

Washer

64 X 140 X 8 mm (2.520" X 5.5 12" X 0.315") SUB FOR AT128290

1шт.

17

40M7118

Snap Ring

1шт.

18

0353318

Seal

SUB FOR AT132386 OR 4S00822

1шт.

19

0365305

Shaft

SUB FOR AT128281

1шт.

20

0365317

Cover

SUB FOR AT128293

1шт.

21

AT264319

O-Ring

99.400 X 3.100 mm (3.913" X 0.122") SUB FOR T110447

1шт.

22

0365323

Cylindrical Roller Bearing

SUB FOR AT128298

1шт.

23

0365312

Washer

45 X 57 X 3 mm (1.772" X 2.24 4" X 0.118") SUB FOR AT128288

1шт.

24

40M7047

Snap Ring

2шт.

25

0365311

Washer

43 X 54 X 1.500 mm (1.693" X 2. 126" X 0.059") SUB FOR AT128287

1шт.

27

0365312

Washer

45 X 57 X 3 mm (1.772" X 2.24 4" X 0.118") SUB FOR AT128288

1шт.

28

0365309

Spring

SUB FOR AT128285

1шт.

33

4323631

O-Ring

SUB FOR AT130950, 4S00205, AT132 162, 0125431, 4S01096 OR 4S00614

1шт.

34

40M7195

Snap Ring

1шт.

35

0365324

Bearing

SUB FOR TH112052

1шт.

37

15M7027

Drain Plug

2шт.

38

M800650

Packing

1шт.

39

0236014

Fitting Plug

SUB FOR TH102650

1шт.

40

0365301

Piston

SUB FOR AT128278

9шт.

41

0365302

Housing

SUB FOR AT128279

1шт.

42

0236006

Plunger

SUB FOR TH102635

2шт.

43

0236009

Spring

SUB FOR TH102638

2шт.

44

AT264347

O-Ring

SUB FOR TH100136 OR 4506428

2шт.

45

0236014

Fitting Plug

SUB FOR TH102650

2шт.
