Запчасти John Deere 50LC 323 - Right Swing Motor 4360 Hydraulics

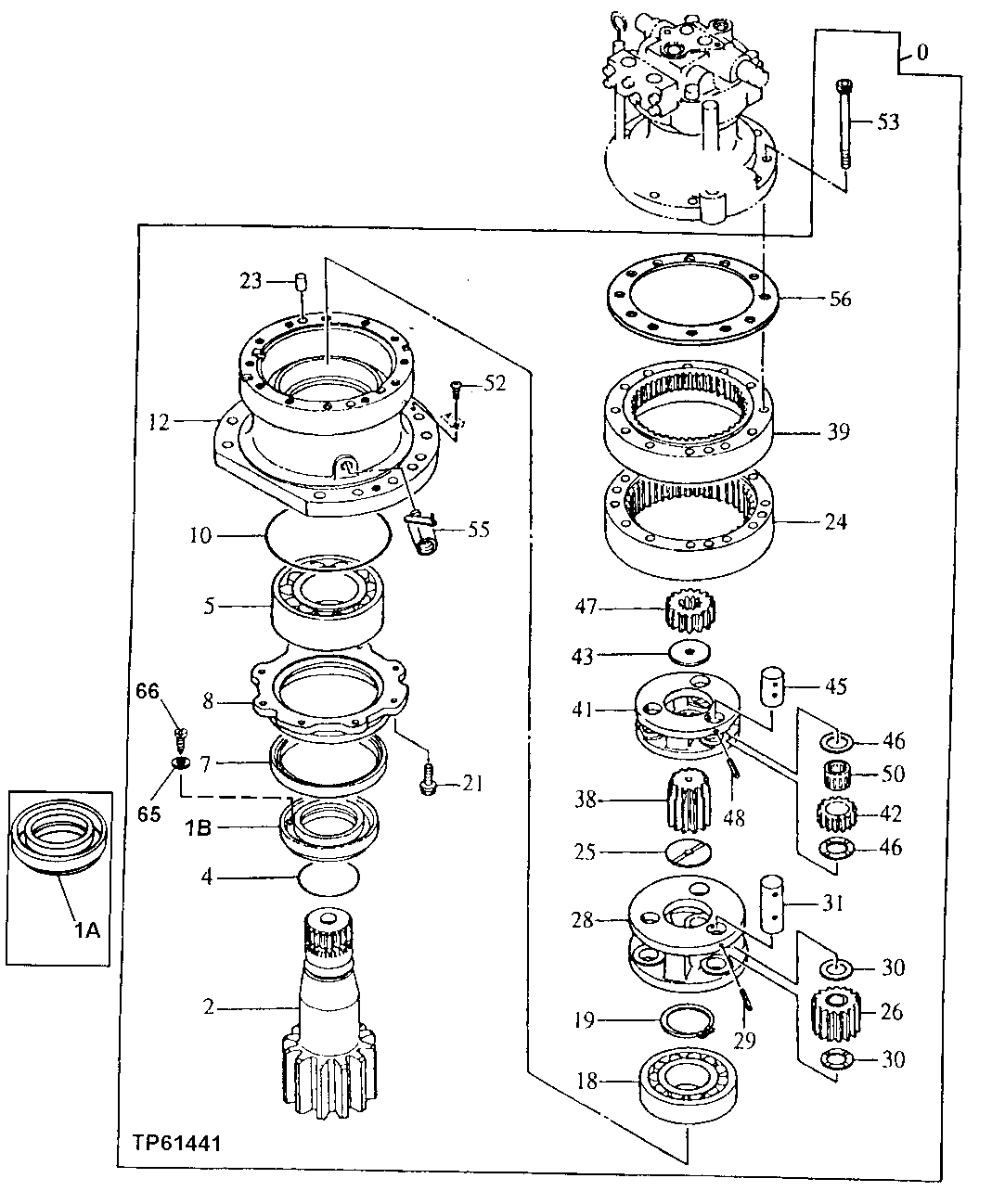

Схема запчастей John Deere 50LC - 323 - Right Swing Motor 4360 Hydraulics

Артикул

Название

Примечание

Количество

0

9138912

Device

(SUB FOR AT202244)

1шт.

1A

Sleeve

(SUB 3084390, (3) 4204644 AND (3) 21M7265) ( AT202067 OR 3045362 NLA)

1шт.

1B

3084390

Sleeve

(SUB FOR AT184549)

1шт.

2

1016164

Shaft

(SUB FOR AT201651)

1шт.

4

AT264339

O-Ring

(SUB FOR TH100122)

1шт.

5

4327304

Spherical Roller Bearing

(SUB FOR AT201776)

1шт.

7

4424980

Seal

(USE AT201798 IF AVAILABLE) (SUB FOR AT201798) (SUB FOR AT187561)

1шт.

4405532

Seal

Extreme Cold Weather Applications

1шт.

8

3060672

Cover

(SUB FOR AT202070)

1шт.

10

4210325

O-Ring

232 X 3 mm (9.134" X 0. 118") (SUB FOR TH110138)

1шт.

12

1020571

Housing

(SUB FOR AT201655)

1шт.

18

AT131688

Spherical Roller Bearing

1шт.

19

991352

Snap Ring

(SUB FOR AT127246)

1шт.

21

19M7403

Cap Screw

M12 X 35

8шт.

12H301

Lock Washer

1/2"

8шт.

23

J401640

Dowel Pin

(SUB FOR TH110085)

2шт.

24

1011220

Gear

(SUB FOR AT131577)

1шт.

25

4176073

Plate

(SUB FOR AT126233)

1шт.

26

9727844

Gear

(SUB FOR AT132134)

3шт.

28

1013272

Planet Pinion Carrier

(SUB FOR AT131580)

1шт.

29

34M7045

Spring Pin

6 X 60 mm

3шт.

30

4176072

Plate

(SUB FOR AT126232)

6шт.

31

4203534

Pin

(SUB FOR AT131754)

3шт.

38

3038494

Sun Gear

(SUB FOR AT131620)

1шт.

39

2024516

Gear

(SUB FOR AT131591)

1шт.

41

1011219

Planet Pinion Carrier

(SUB FOR AT131576)

1шт.

42

3038496

Gear

(SUB FOR AT131621)

3шт.

43

4195372

Plate

(SUB FOR TH108260)

1шт.

45

4203533

Pin

(SUB FOR AT131753)

3шт.

46

4176072

Plate

(SUB FOR AT126232)

6шт.

47

3038492

Sun Gear

(SUB FOR AT131619)

1шт.

49

4144020

Spring Pin

6 X 56 mm (0.236" X 2.2 05") (SUB FOR TH108833)

3шт.

50

4334731

Needle Bearing

(SUB FOR AT201797)

3шт.

52

37H99

Screw

0.100" X 1/4"

2шт.

53

M341805

Bolt

M18 X 180 (SUB FOR AT131556)

12шт.

55

4194712

Drain Valve

(SUB FOR TH108278)

1шт.

56

8045520

Cover

(SUB FOR AT172705) (USED FOR SHIPPING ONLY)

1шт.

65

4204644

Magnet

(SUB FOR TH108284)

3шт.

66

21M7265

Screw

M5 X 12

3шт.

Выбрано товаров: 39
