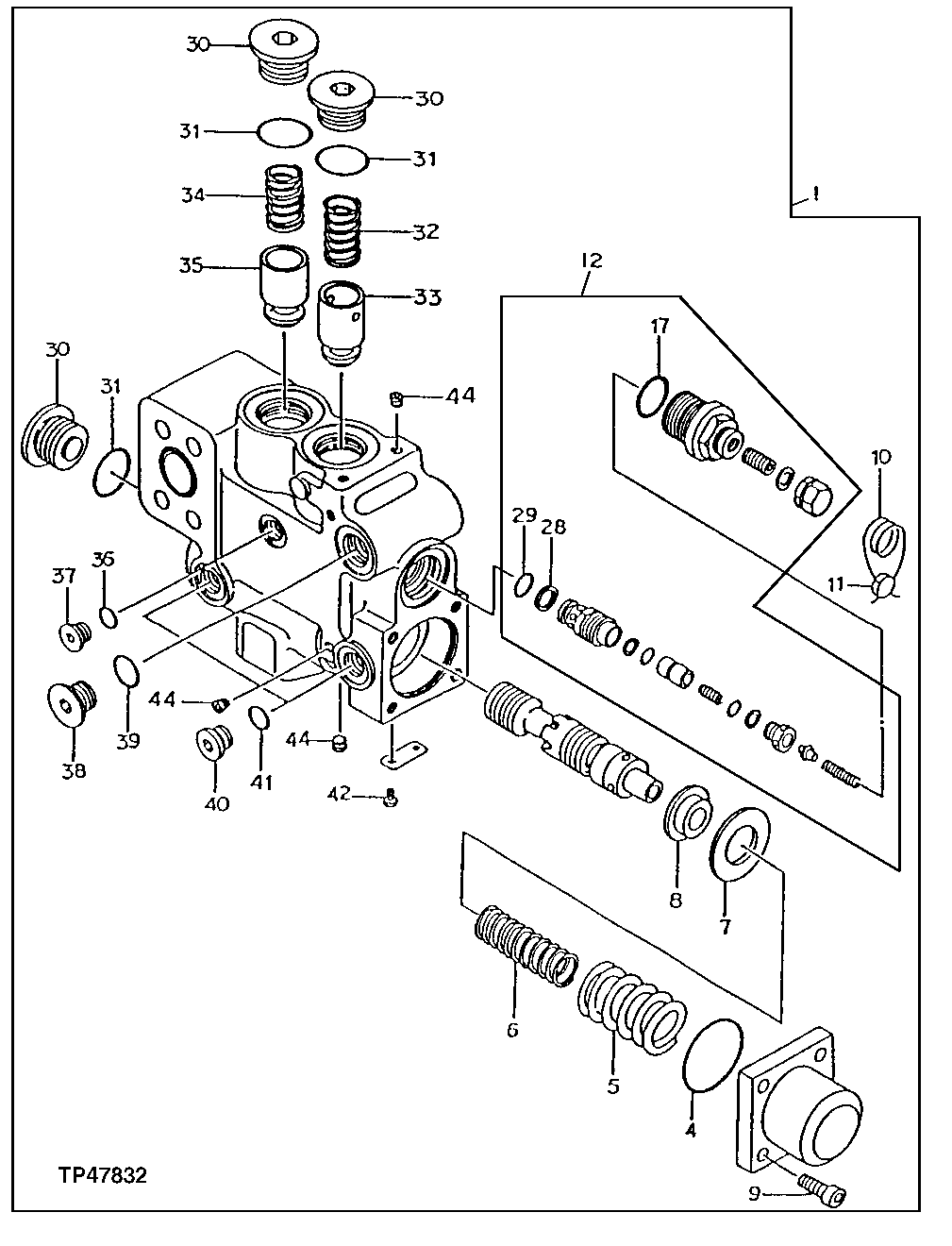

Запчасти John Deere 50LC 321 - BOOM CYLINDER LOAD LOWERING HOLDING VALVE 3365 Hydraulic Cylinders

1

4473857

Flow Control Hyd. Valve

(SUB FOR 4358534) (LOAD LOWERING HOLDING VALVE)

1шт.

4

CH15107

Packing

1шт.

5

0658003

Compression Spring

(SUB FOR AT175923)

1шт.

6

0658004

Compression Spring

(SUB FOR AT175924)

1шт.

7

0343507

Washer

(SUB FOR AT175925)

1шт.

8

0658005

Retainer

(SUB FOR AT175926)

1шт.

9

19M8439

Screw

M8 X 25

4шт.

10

0658006

Wire

(SUB FOR AT175927)

2шт.

11

0658007

Plug

(SUB FOR AT175928)

1шт.

12

4483073

Pressure Relief Valve

(SUB FOR 0663901)

1шт.

17

CH17886

Packing

1шт.

28

4038533

Back-Up Ring

(SUB FOR TH100050)

1шт.

29

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

30

0658008

Fitting Plug

(SUB FOR AT175929)

3шт.

31

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

3шт.

32

0343510

Compression Spring

(SUB FOR AT175930) (SUB FOR AT175875)

1шт.

33

0343505

Plunger

(SUB FOR AT175931) (SUB FOR AT175876)

1шт.

34

0223202

Compression Spring

(SUB FOR TH106368)

1шт.

35

0343504

Plunger

(SUB FOR AT175932)

1шт.

36

M800650

Packing

1шт.

37

0314205

Plug

(SUB FOR AT120949 OR TH0314205)

1шт.

38

0343611

Fitting Plug

(SUB FOR AT175933)

1шт.

39

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

40

15M7036

Drain Plug

(SUB FOR TH109285 OR 0309805)

2шт.

41

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

2шт.

44

0343514

Fitting Plug

(SUB FOR AT175880)

6шт.
