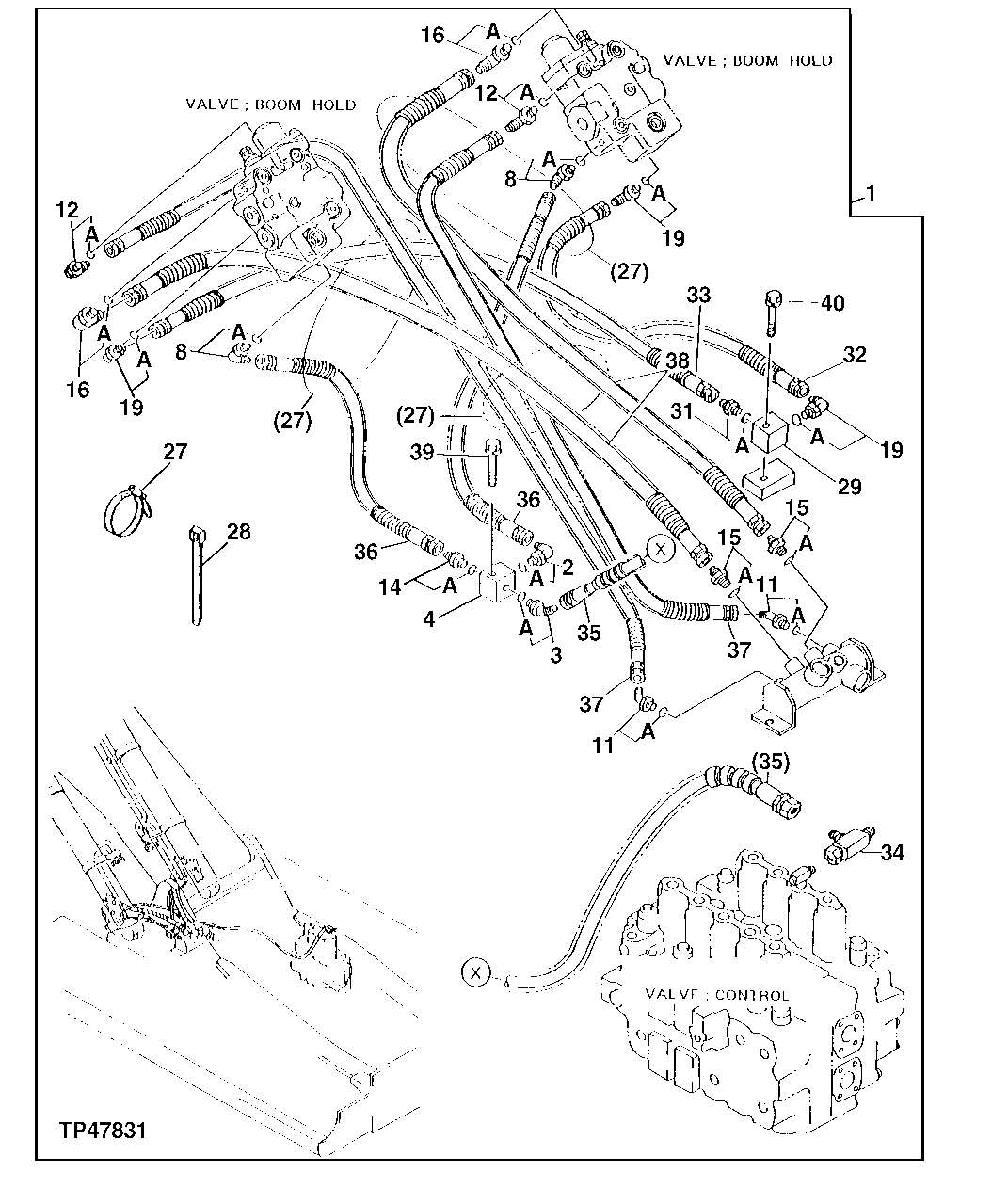

Запчасти John Deere 50LC 314 - Controlled Load Lowering Device Kit (Boom) 3365 Hydraulic Cylinders

1

Kit

( AT171167 NLA, SUB AT194999) (BOOM CYLI NDER LOAD LOWERING VALVE) (CONTAINS ALL I TEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.

2

A852333

Elbow Fitting

(SUB FOR TH101047) (SUB FOR 4154671)

1шт.

2A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

3

4190244

Elbow Fitting

(SUB FOR TH106152)

1шт.

3A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

4

4251601

Junction Block

(SUB FOR AT175150)

1шт.

8

A852333

Elbow Fitting

(SUB FOR TH101047) (SUB FOR 4154671)

2шт.

8A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

11

4190244

Elbow Fitting

(SUB FOR TH106152)

2шт.

11A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

12

A852333

Elbow Fitting

(SUB FOR TH101047) (SUB FOR 4154671)

2шт.

12A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

14

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

14A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

15

X8-10F5OX

Adapter Fitting

(SUB FOR TH101006)

2шт.

15A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

16

4154672

Elbow Fitting

(SUB FOR TH101008)

2шт.

16A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

19

4154670

Elbow Fitting

(SUB FOR TH100951)

3шт.

19A

M800650

Packing

1шт.

27

TY22485

Hose Clamp

(SUB FOR AT175267 OR 4351923)

3шт.

28

H77698

Tie Band

5шт.

29

4335378

Junction Block

(SUB FOR AT175157)

1шт.

31

4200465

Adapter Fitting

(SUB FOR TH108328)

1шт.

31A

M800650

Packing

1шт.

32

4322515

Hydraulic Hose

(SUB FOR AT175158)

1шт.

33

4322516

Hydraulic Hose

(SUB FOR AT175159)

1шт.

34

4246672

Tee Fitting

(SUB FOR AT200991)

1шт.

35

Hydraulic Hose

( 4356491 NLA) (SUB FOR AT175160)

1шт.

36

4322512

Hydraulic Hose

(SUB FOR AT175161)

2шт.

37

4322514

Hydraulic Hose

(SUB FOR AT175162)

2шт.

38

4322513

Hydraulic Hose

(SUB FOR AT175163)

2шт.

39

19M8348

Cap Screw

M12 X 65

1шт.

40

19M7363

Cap Screw

M12 X 60

1шт.

12H301

Lock Washer

1/2"

1шт.
