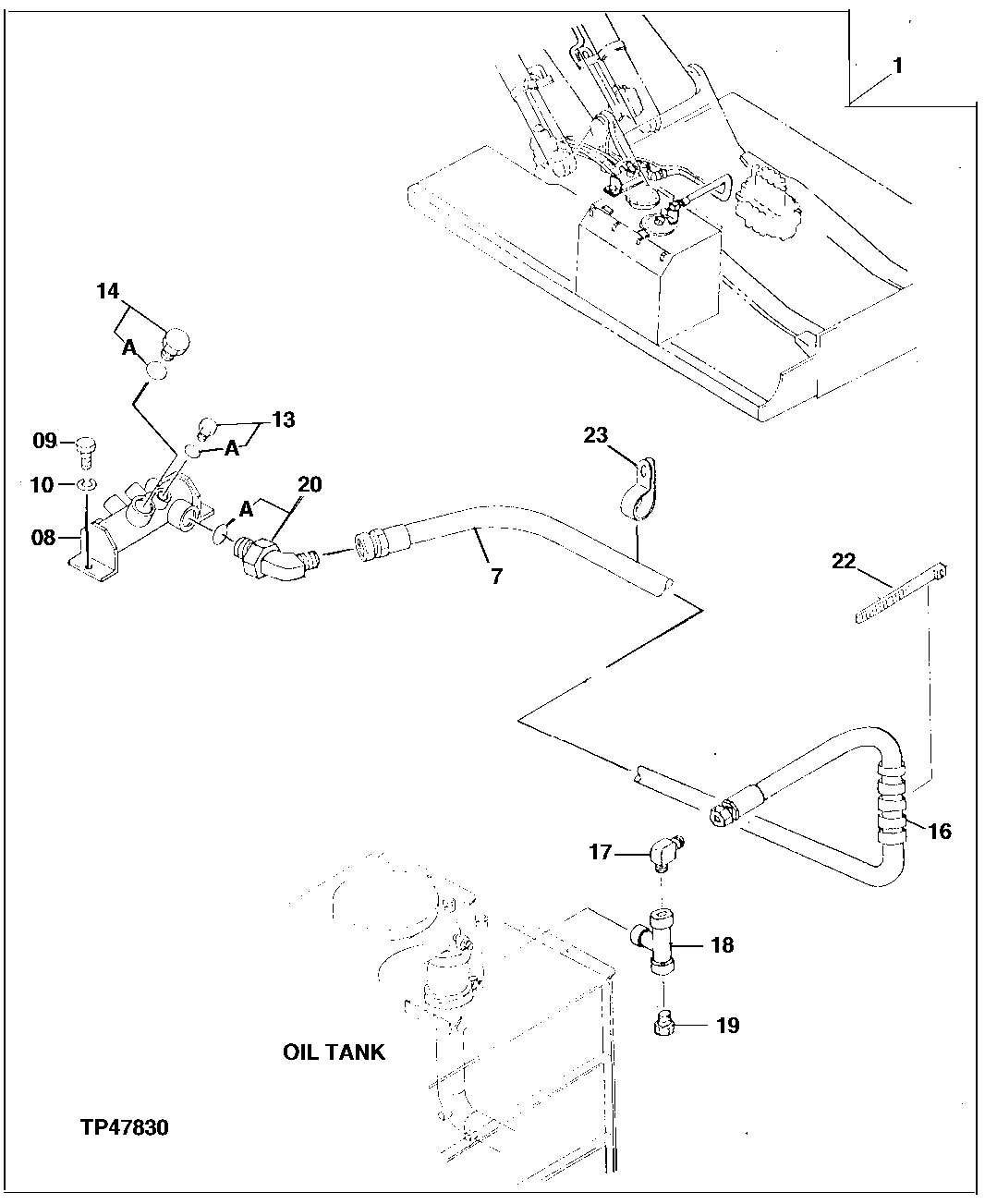

Запчасти John Deere 50LC 313 - Controlled Load Lowering Device Kit, Boom 3365 Hydraulic Cylinders

1

Kit

AT171167 NLA, SUB AT194999, BOOM CYLIN DER LOAD LOWERING VALVE, CONTAINS ALL IT EMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES

1шт.

7

Hydraulic Hose

4362977 NLA, SUB FOR AT175138

1шт.

8

8042550

Manifold

SUB FOR AT175140

1шт.

9

19M7872

Cap Screw

M12 X 25

2шт.

10

12H301

Lock Washer

1/2"

2шт.

13

4174541

Fitting

SUB FOR TH110477

1шт.

13A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

14

A885008

Pipe Plug

SUB FOR 4113926 AND AT126200

1шт.

14A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

16

Hose Guard

MF XHG-075 CTL, BULK MATERIAL, SUB FOR AT138222, TH100996 NLA

5шт.

17

94-1406

Elbow Fitting

SUB FOR AT175142

1шт.

18

94-0665

Tee Fitting

SUB FOR AT175143

1шт.

19

94-2027

Plug

SUB FOR AT202377

1шт.

20

4317647

Elbow Fitting

SUB FOR AT175144

1шт.

20A

970860

O-Ring

37.700 X 3.500 mm (1-31/64" X 0.138") SUB FOR TH104634

1шт.

22

H77698

Tie Band

5шт.

23

N198631

Clamp

SUB FOR TH109598 OR 4190265

1шт.
