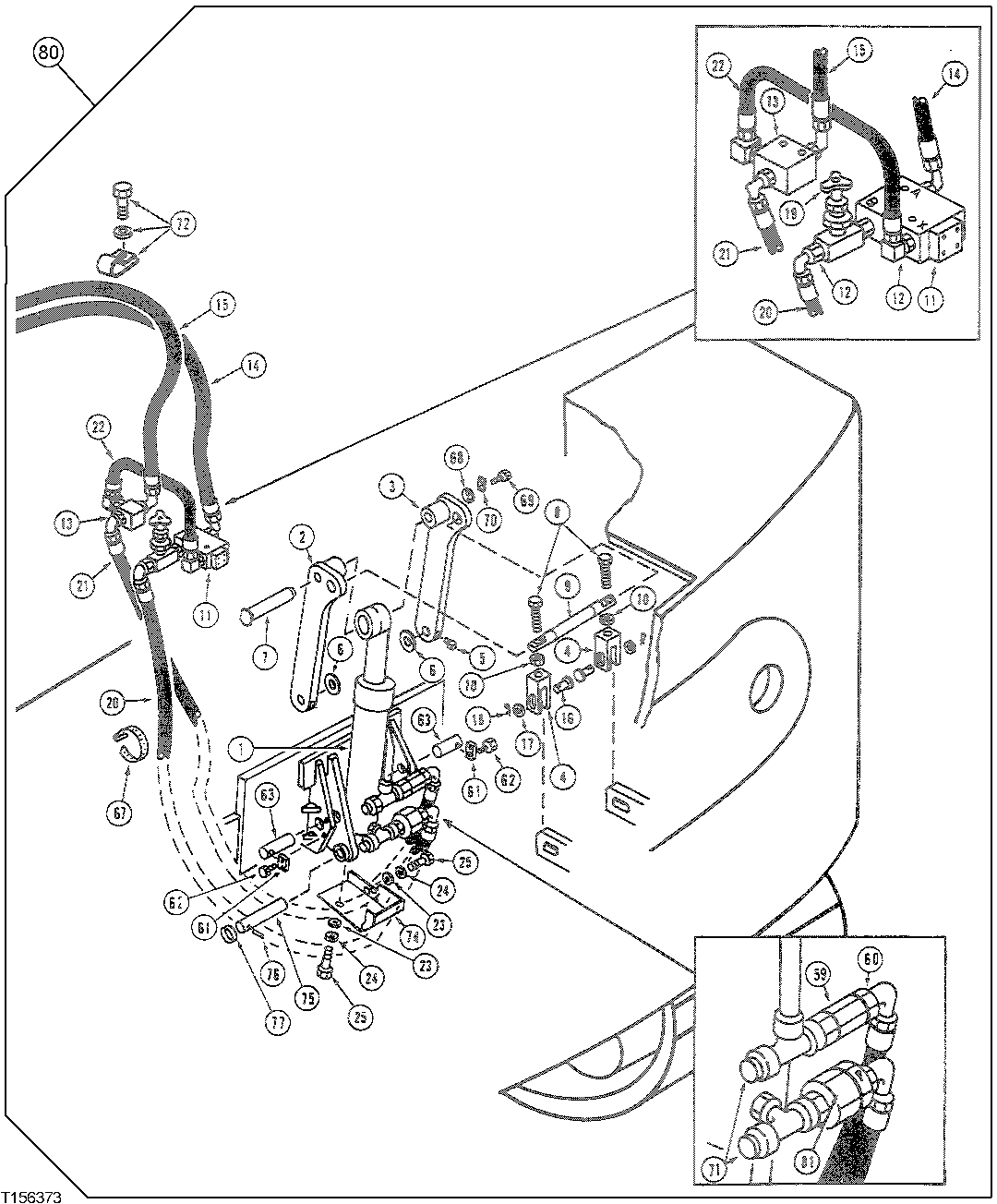

Запчасти John Deere 50LC 311 - Counterweight Removal Device 3365 Hydraulic Cylinders

25

4186695

Pin

Not Illustrated

1шт.

26

4226388

Tee Fitting

(SUB FOR AT205878) Not Illustrated

1шт.

M800650

Packing

Not Illustrated

1шт.

27

4257159

Bracket

Not Illustrated

1шт.

28

4456689

Wiring Harness

(SUB FOR TH4456689) Not Illustrated

1шт.

29

4190261

Clip

(SUB FOR TH109649) Not Illustrated

2шт.

59

3071216

Adapter Fitting

(SUB FOR AT170143)

1шт.

4131346

Spacer

(SUB FOR AT132491)

2шт.

60

T77857

O-Ring

1шт.

61

4274178

Elbow Fitting

(SUB FOR AT170146)

1шт.

4063340

Strap

(SUB FOR AT132480)

1шт.

T77857

O-Ring

1шт.

62

M341632

Bolt

(SUB FOR AT132460)

1шт.

4131346

Spacer

(SUB FOR AT132491)

1шт.

63

4337837

Pin

(SUB FOR AT170128)

2шт.

68

AD4112

Retainer

(SUB FOR AT170134, 492067 OR Z492067)

1шт.

69

19M8017

Cap Screw

M12 X 20

2шт.

70

442687

Strap

(SUB FOR TH103546)

1шт.

71

94-2024

Fitting Plug

(SUB FOR TH101292)

2шт.

72

12M7068

Lock Washer

14 mm

1шт.

74

8065783

Guard

1шт.

75

4337843

Pin

(SUB FOR AT170129)

1шт.

76

4186695

Pin

1шт.

77

TH101624

Kit

1шт.

79

Hose Guard

(MF XHG-075 CTL) (SUB FO R AT138222) Bulk Material

1шт.

80

AT196481

Kit

(SUB FOR AT169021) (WHOLEGOODS) (COUNTERWEIGHT REMOVAL) (ADDITI ONAL COMPONENTS ON PREVIOUS PAGE )

1шт.

81

4221984

Valve

(SUB FOR 4146466)

1шт.

4339469

Adapter Fitting

(SUB FOR AT170144)

1шт.
