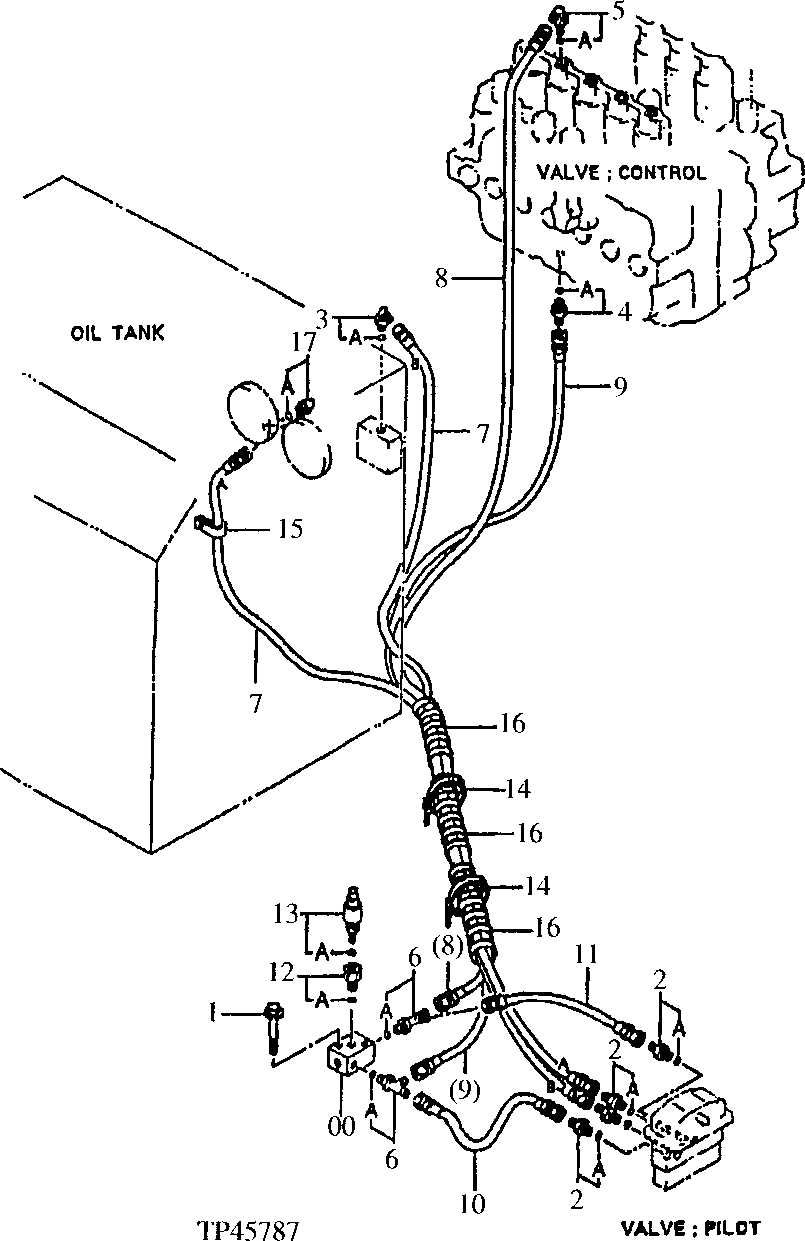

Запчасти John Deere 50LC 308 - COUNTERWEIGHT REMOVAL PILOT PIPINGS 3365 Hydraulic Cylinders

0

4195759

Flow Control Hyd. Valve

(SUB FOR AT132401)

1шт.

1

19M8655

Cap Screw

M10 X 55

2шт.

12M7066

Lock Washer

10 mm

2шт.

2

4200467

Adapter Fitting

(SUB FOR TH108417)

4шт.

2A

M800650

Packing

1шт.

3

AT318014

Elbow Fitting

(SUB FOR 4156434) (SUB FOR TH101930)

1шт.

3A

M800650

Packing

1шт.

4

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

4A

CH11570

O-Ring

1шт.

5

A852333

Elbow Fitting

(SUB FOR TH101047) (SUB FOR 4154671)

1шт.

5A

CH11570

O-Ring

1шт.

6

4207300

Tee Fitting

(SUB FOR AT126381)

2шт.

6A

M800650

Packing

1шт.

7

4373639

Hydraulic Hose

(SUB FOR AT170155 OR 4258889)

2шт.

8

4305130

Hydraulic Hose

(SUB FOR AT170156)

1шт.

9

4234397

Hydraulic Hose

(SUB FOR AT170157)

1шт.

10

4290170

Hydraulic Hose

(SUB FOR AT170158)

1шт.

11

AT37543

Hydraulic Hose

9/16" X 482 mm (19") X 9/16"

1шт.

12

4339737

Reducer

(SUB FOR AT170159)

1шт.

12A

M800650

Packing

1шт.

13

4254563

Pressure Switch

(SUB FOR AT154212)

1шт.

13A

CH19111

O-Ring

7.645 X 1.778 mm (0.301" X 0.070")

1шт.

14

H77698

Tie Band

2шт.

15

T28949

Clamp

(SUB FOR TH108460 OR 4190273)

1шт.

16

Hose Guard

(MF XHG-075 CTL) (SUB FO R AT138222) Bulk Material

3шт.

17

4241385

Elbow Fitting

(SUB FOR AT170160)

1шт.

17A

CH11570

O-Ring

1шт.

20

Counterweight

( AT169021 NLA, SUB AT196481) (WHOLEGO ODS (REMOVAL SYSTEM) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDI TIONAL COMPONENTS LISTED ON OTHER PAGES )

1шт.
