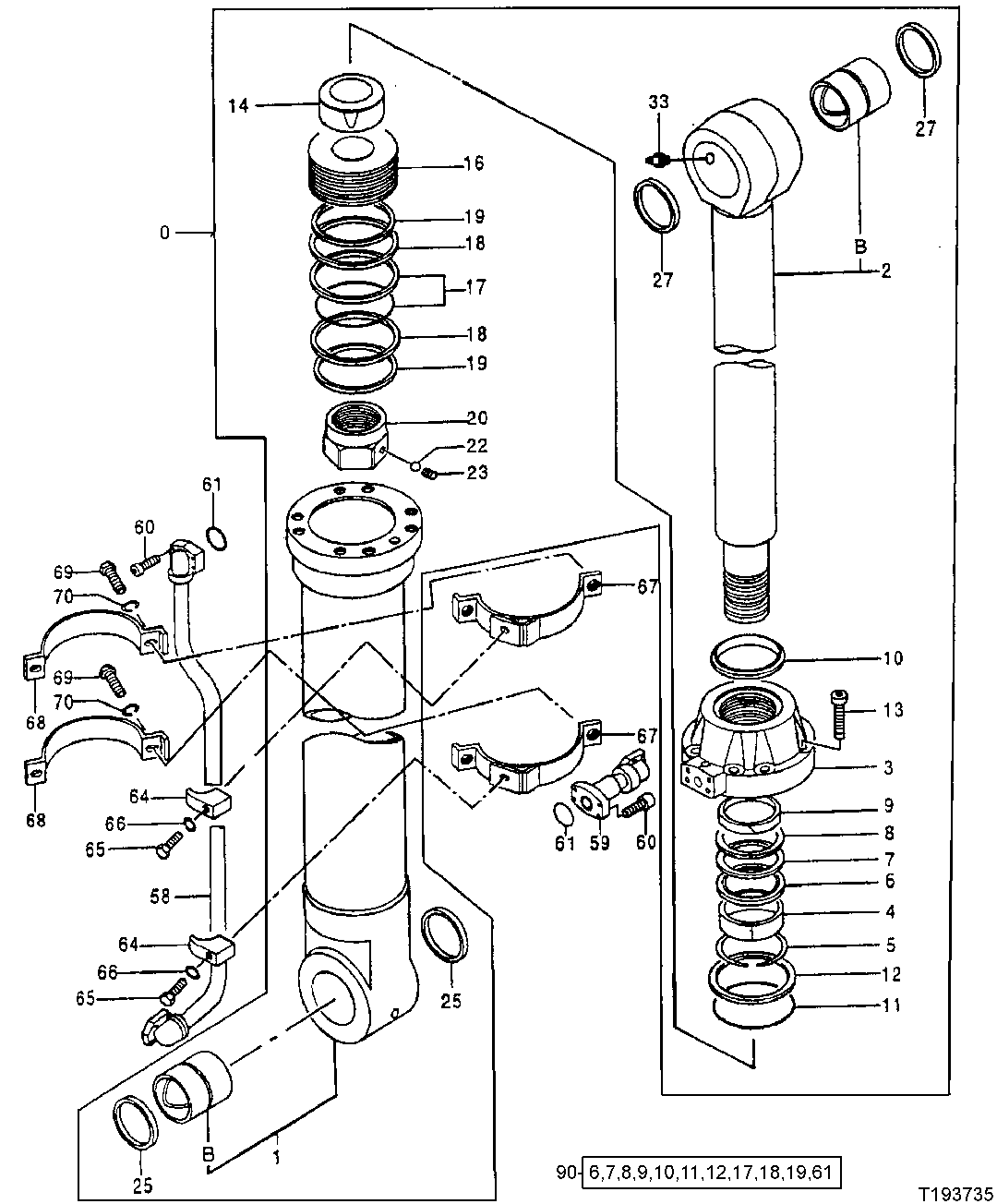

Запчасти John Deere 50LC 301 - Bucket Cylinder 3365 Hydraulic Cylinders

0

Cylinder

115 mm Rod, FOR USE W/ SHORT ARM, S TANDARD ARM, OR SEMI-LONG ARM, ORDER AT182462 BUCKET CYLINDER FROM VENDO R

1шт.

1

0420401

Tube

Hydraulic Cylinder Barrel

1шт.

1B

4609091

Bushing

SUB FOR 0352905

1шт.

2

0420402

Hydraulic Cylinder Rod

115 mm Diameter Rod

1шт.

2B

4660855

Bushing

SUB FOR 0420102

1шт.

3

0420105

Hydr. Cylinder Rod Guide

1шт.

4

0352704

Bushing

1шт.

5

0133103

Snap Ring

1шт.

6

AT132284

Ring

1шт.

7

AT132285

Seal

1шт.

8

AT132286

Back-Up Ring

1шт.

9

AT204911

Ring

1шт.

10

AT191197

Ring

1шт.

11

AT264240

O-Ring

1шт.

12

AT264252

Back-Up Ring

1шт.

13

0191412

Bolt

8шт.

14

0420106

Bearing

1шт.

15

0420113

Seal

Not Illustrated

1шт.

16

0420108

Piston

1шт.

17

AT264253

Ring

1шт.

18

AT264289

Ring

SUB FOR AT201577

2шт.

19

AT264248

Ring

2шт.

20

0352713

Nut

1шт.

21

0352714

Shim

Not Illustrated

1шт.

22

R26552

Ball

1шт.

23

0353012

Set Screw

1шт.

25

0420403

Ring

SUB FOR 4S00854

2шт.

27

AT201578

Ring

2шт.

33

TH100074

Lubrication Fitting

1шт.

58

4S00349

Line

1шт.

59

4S00350

Line

SUB FOR AT201591

1шт.

60

19M8395

Screw

M12 X 40

8шт.

61

AT264348

O-Ring

SUB FOR TH102788

2шт.

64

0309219J

Half Clamp

SUB FOR 0309219 OR T108064

2шт.

65

19M7363

Cap Screw

M12 X 60

2шт.

66

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

67

Band

0352719 NLA, SUB FOR AT132298

2шт.

0875612

Half Clamp

2шт.

68

0352721

Band

SUB FOR AT132300

2шт.

69

19M7550

Cap Screw

M10 X 35 SUB FOR AT153924

4шт.

70

12M7066

Lock Washer

10 mm

4шт.

90

AT196471

Seal Kit

1шт.
