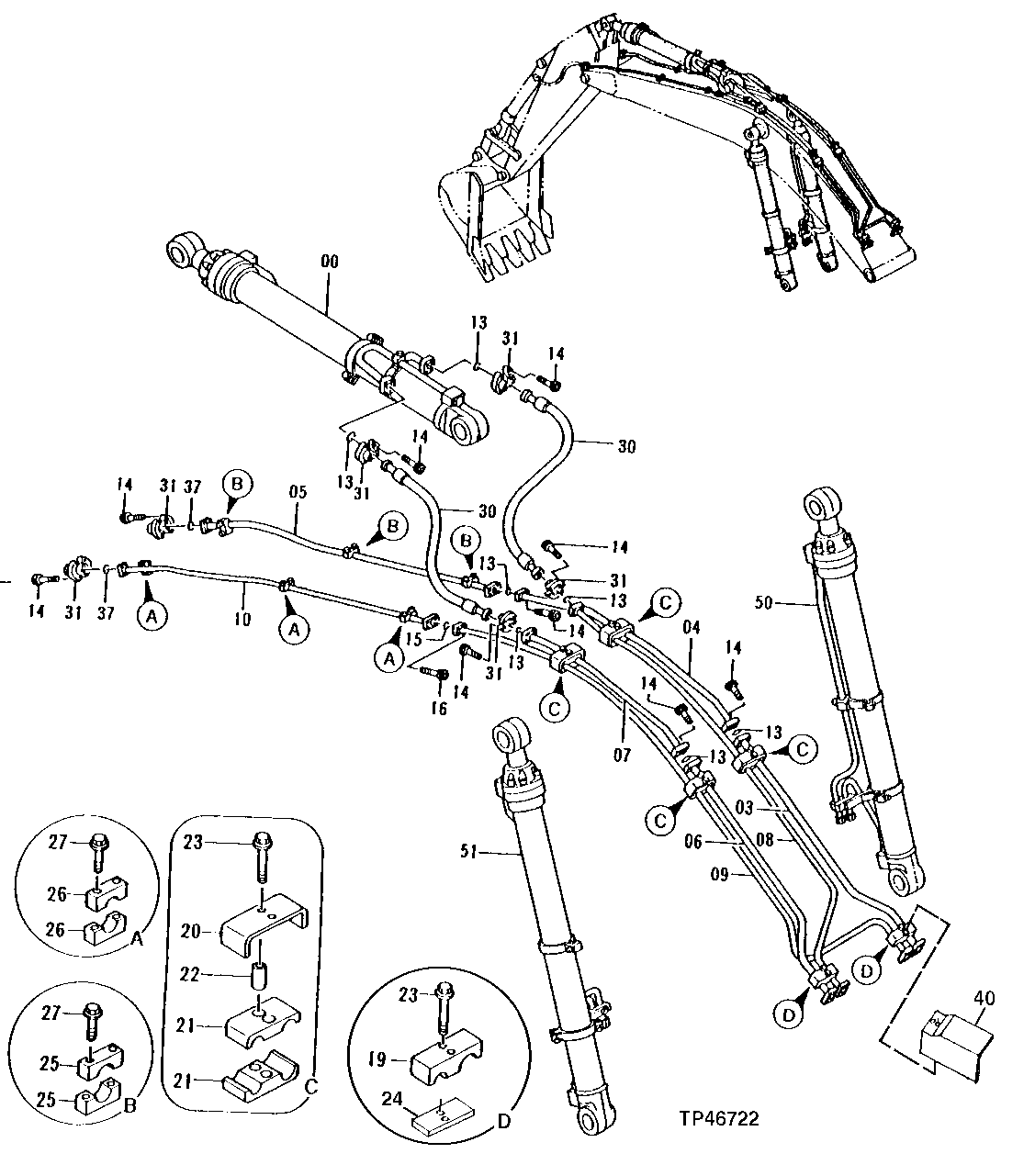

Запчасти John Deere 50LC 292 - Boom Lines 3365 Hydraulic Cylinders

0

Hydraulic Cylinder Reman

REMAN, 4340512JEX AND AT201823 NLA Arm See Arm Cylinder Page For Detail

1шт.

3

8055572

Oil Line

SUB FOR AT201896

1шт.

4

8055573

Oil Line

SUB FOR AT201897

1шт.

5

8055574J

Oil Line

SUB FOR AT201898 OR 8055574

1шт.

6

8055575

Oil Line

SUB FOR AT201899

1шт.

7

8055576

Oil Line

SUB FOR AT201900

1шт.

8

8055577

Oil Line

SUB FOR AT201901

1шт.

9

7026617

Oil Line

SUB FOR AT201864

1шт.

10

8055578J

Oil Line

SUB FOR AT201902 OR 8055578

1шт.

13

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

7шт.

14

19M8712

Screw

M14 X 50

36шт.

15

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

1шт.

16

19M8395

Screw

M12 X 40

4шт.

19

4249565

Clamp

SUB FOR AT202109

2шт.

20

4304481

Clamp

SUB FOR AT201755

4шт.

21

4304482

Clamp

SUB FOR AT201756

8шт.

22

28H2611

Spacer

0.546" X 0.840" X 2"

8шт.

23

19M8122

Cap Screw

M12 X 85

12шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

12шт.

24

4346877

Strap

SUB FOR AT172485

2шт.

25

AT201796

Clamp

6шт.

26

4334363

Clamp

SUB FOR AT201795

6шт.

27

19M8122

Cap Screw

M12 X 85

12шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

12шт.

30

AT168741

Hydraulic Hose

1-1/4" X 999 mm (39-1/4") X 1-1/4"

2шт.

31

AT131685

Flange Fitting

12шт.

37

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

2шт.

40

3070800

Cover

SUB FOR AT172486

1шт.

50

4340511

Hydraulic Cylinder

AT264221 AND AT201822 NLA, REMAN Right Bo om See Right Boom Cylinder Page For Details

1шт.

Hydraulic Cylinder Reman

AT192596 AND 9187754JEX NLA Right Boom See Right Boom Cylinder Page For Details

1шт.

51

4340511

Hydraulic Cylinder

SUB FOR AT201822 OR AT264221 Left Boom See Left Boom Cylinder Page For Details

1шт.

Hydraulic Cylinder Reman

REMAN, AT192596 AND 9187754JEX NLA Left Bo om See Left Boom Cylinder Page For Details

1шт.
