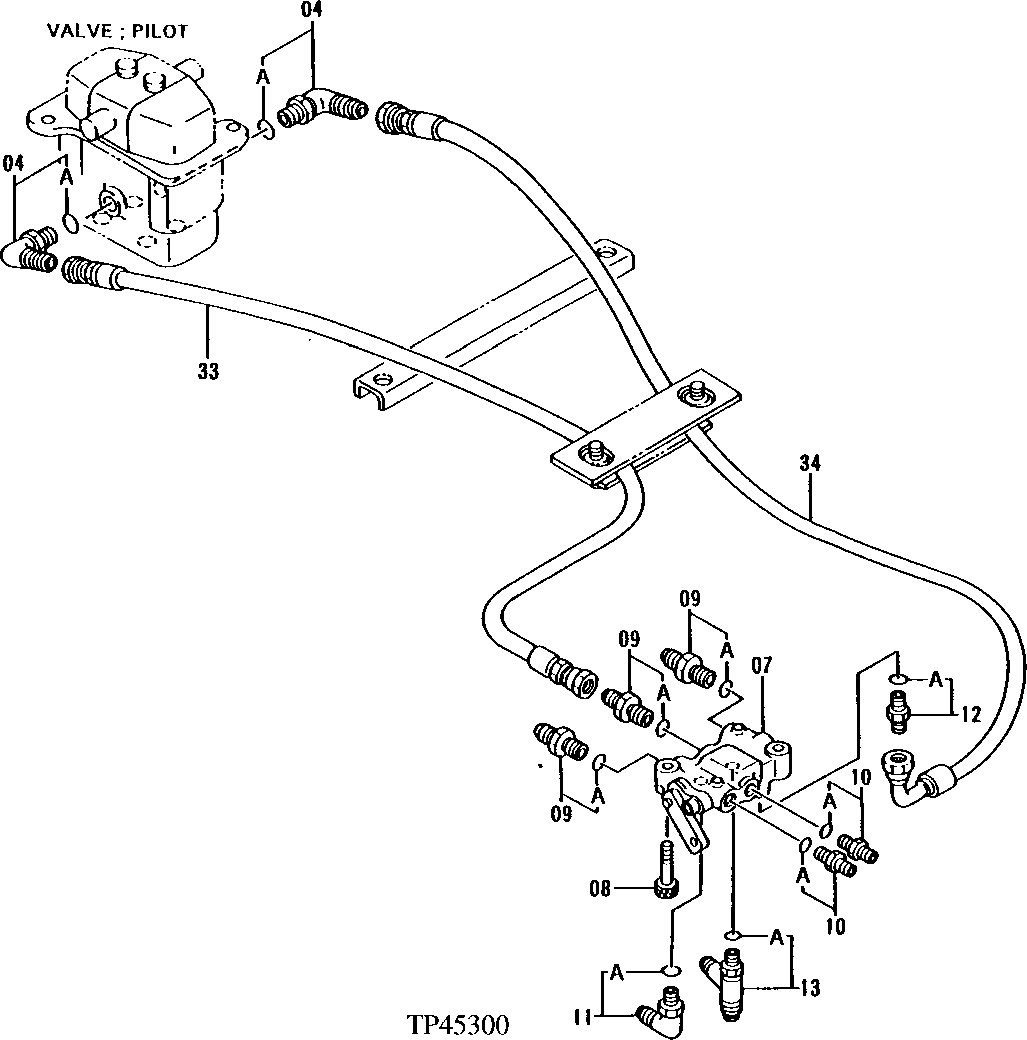

Запчасти John Deere 50LC 289 - VALVE AND PILOT PIPINGS 3363 Lines, hoses and fittings

4

AT318014

Elbow Fitting

(SUB FOR 4156434) (SUB FOR TH101930)

2шт.

4A

M800650

Packing

1шт.

7

4254611

Flow Control Hyd. Valve

(SUB FOR AT154216) Lock

1шт.

8

J781045

Screw

(SUB FOR AT213616)

2шт.

9

4261938

Fitting

(SUB FOR AT154285)

3шт.

9A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

10

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

10A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

11

A852333

Elbow Fitting

(SUB FOR TH101047) (SUB FOR 4154671)

1шт.

11A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

12

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

12A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

13

4225403

Tee Fitting

(SUB FOR AT159557)

1шт.

13A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

33

4323290

Hydraulic Hose

(SUB FOR AT217091)

1шт.

34

AT216978

Hydraulic Hose

1шт.
